14

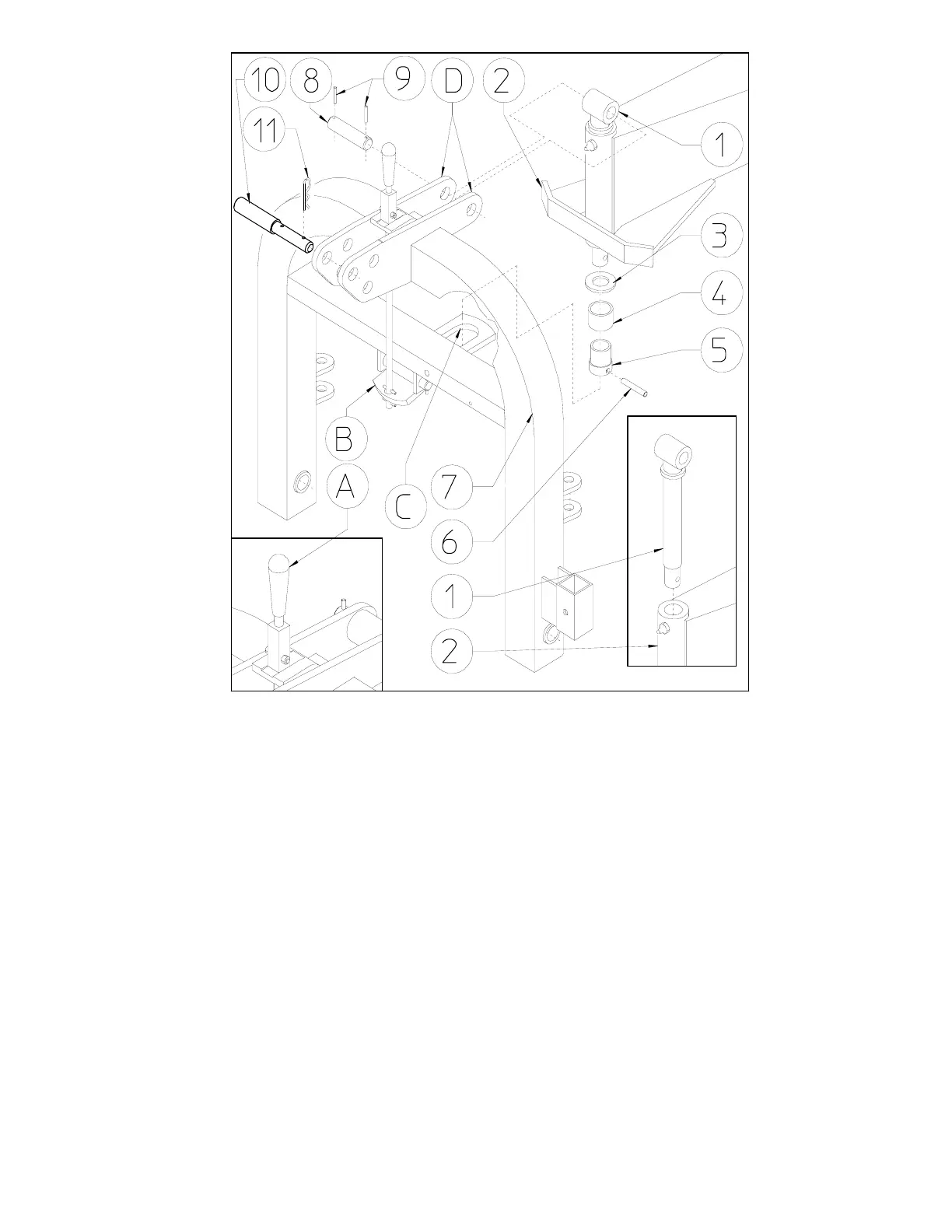

STEP “C”
Mount the pin 1 onto its seat on the frame 2. Fit the washer 3, the shim 4 and the bush
5 onto the pin and secure the whole assembly into place with the spring pin 6. Rise
the lever “A” so that the mobile plate “B” connected to it moves away from plate “C”
welded to the third point (3rd point hitch) 7. Assemble the 3rd point hitch 7 to the
frame 2, inserting items 1-3-4-5 and 6 into the seat in plate “C” and the bush of the
pin 1 between the lugs “D” of the 3rd point hitch 7. Then fasten in place with the pin
8 and the spring pins 9. Mount the pin 10 onto the lugs “D” of the 3rd point hitch 7
and fasten in place with the split pin 11.
In this step, you will use:
Item 3 : 1 shim ø30-50x5 (ø1.18”-2”x0.2”)
Item 4 : 1 shim ø40-50x20.5 (ø1.57”-2”x0.81”)
Item 5 : 1 bush ø48-40-30x44 (ø1.89”-1.57”-1.18”x1.73”)
Item 6 : 1 spring pin ø10x50 (ø0.39”x2”)
Item 8 : 1 pin ø25x113 (ø1”x4.45”)
Item 9 : 2 spring pins ø6x35 (ø0.24”x1.38”)
Item 11 : 1 split pin ø4 (ø0.16”)
