15

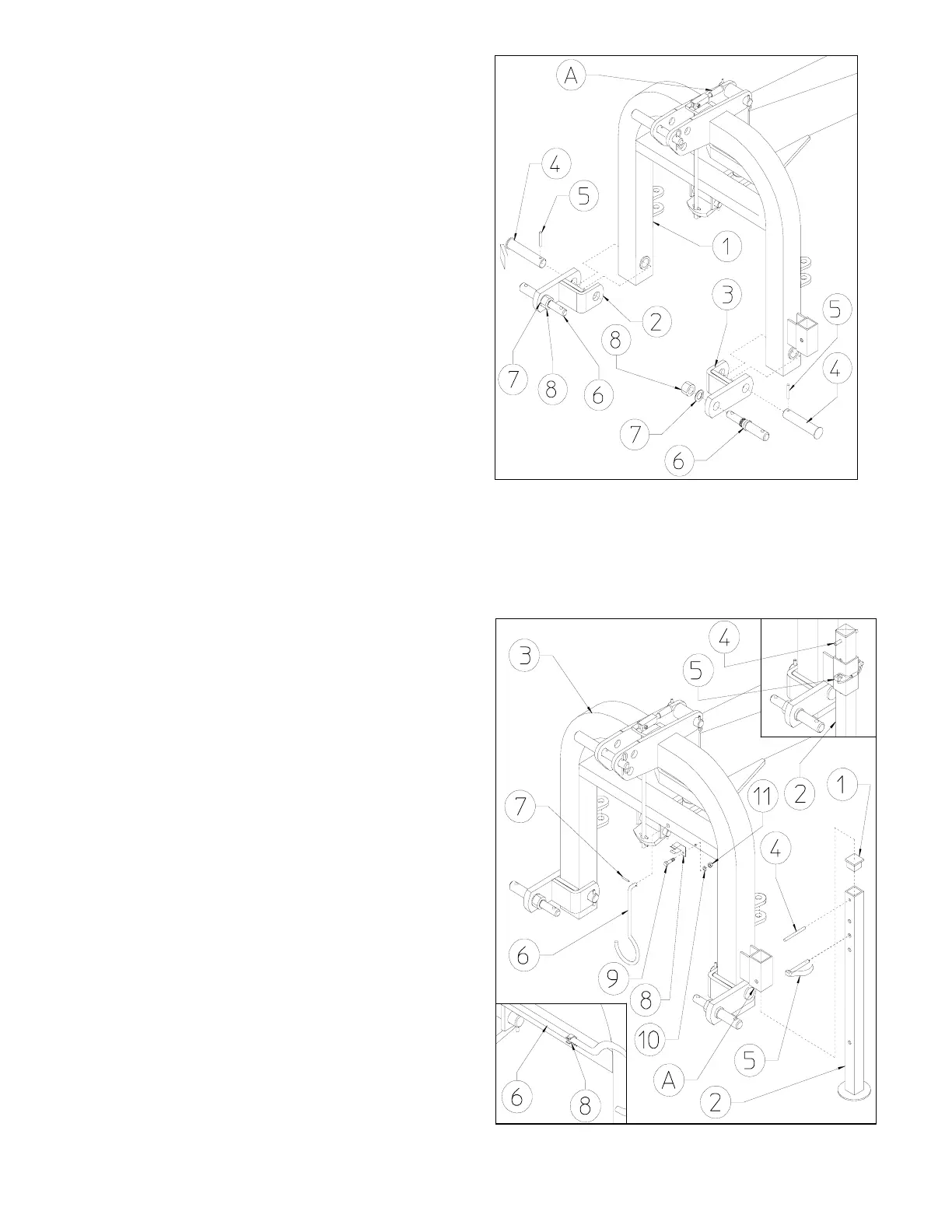

STEP “D”
Return lever “A” to its original horizontal
position. Mount the supports 2-3 (RH-LH)
on their seats in the 3rd point hitch 1
using the pins 4 and the spring pins 5.
Mount the pins 6 onto their seats on the
supports 2-3 using the spring washers 7
and the nuts 8.
In this step, you will use:
Item 4 : 2 pins ø30x140 (ø1.18”x 5.51”)
Item 5 : 2 spring pins 8x50 (ø0.31”x2”)
Item 7 : 2 spring washers ø25 (ø1”)
Item 8 : 2 nuts M24 (0.94”)
STEP “E”-“F”
Fit the plug 1 onto the support leg 2.
Mount the support leg 2 onto the seat “A”
on the 3rd point hitch 3. Insert the spring
pin 4 into the seat provided in the leg 2.
Fasten the leg 2 to the 3rd point hitch
3 with the pin 5.
Mount the cardan shaft 6 onto the seat
provided on the 3rd point hitch 3 and fasten
it with the spring pin 7. Fit the fastener 8
onto the seat provided for it on the 3rd
point hitch 3 and fasten it with the screw 9,
the spring washer 10 and the nut 11.
In this step, you will use:
Item 4 : 1 spring pin 8x50 (ø0.31”x2”)
Item 5 : 1 pins 10x70 (ø0.39”x2.76”)
Item 7 : 1 spring pin ø3.5x18
(ø0.14”x0.71”)
Item 9 : 1 screw M4x16 (0.16”x0.63”)
Item 10 : 1 spring washer ø4.5 (ø0.18”)
Item 11 : 1 nut M4 (0.16”)
