16

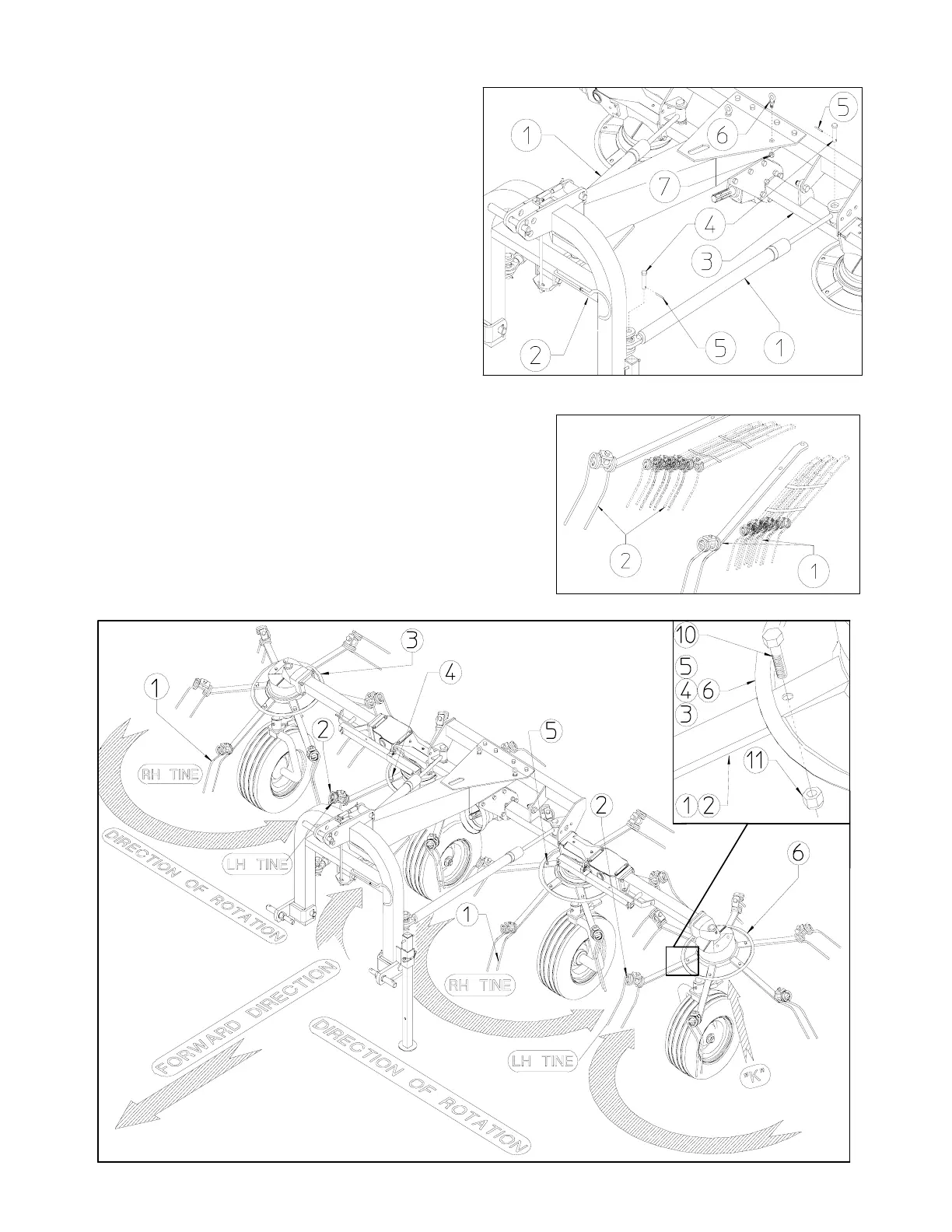

STEP “G”
Mount the shock absorbers 1 on the seats
provided for them on the 3rd point hitch 2
and the chassis of the machine 3 and
fasten them with the pins 4 and the spring
pins 5. Apply the eye bolts to the seats
provided on the chassis of the machine
and 6 and fasten them with the nuts 7.
In this step, you will use:
Item 4 : 4 pins 18x80 (ø0.71”x3.15”)
Item 5 : 4 spring pins ø6x35
(0.24”x1.38”)
Item 7 : 2 nuts M14 (0.55”)
STEP “H”
You will find the tine bars 1 (RH) and 2 (LH) in
four bundles (two RH and two LH) of six pieces
each. Tine bars 1 (RH) are attached to rotors 3-5.
Tine bars 2 (LH) are attached to rotors 4-6.
Continued on next page.
