18

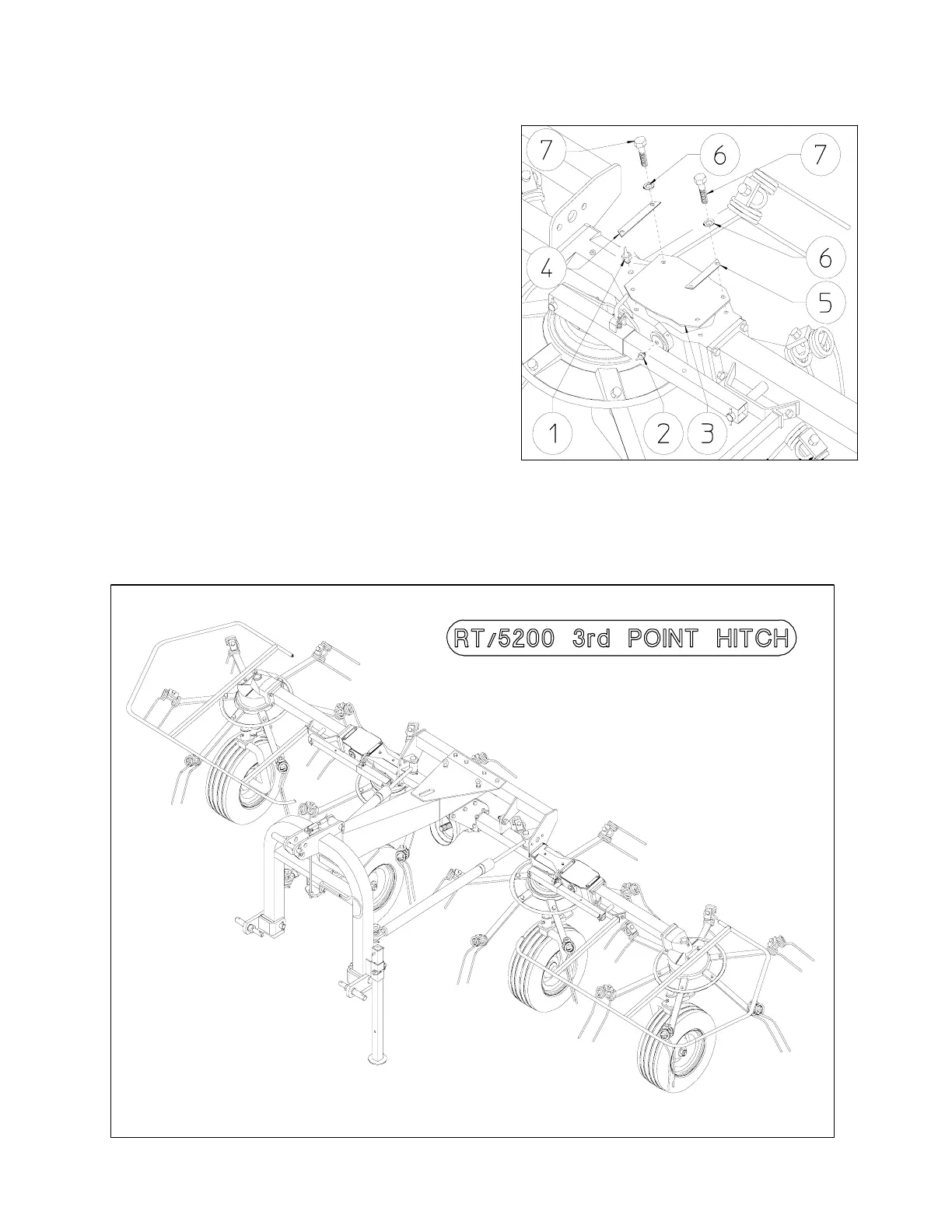

STEP “M”
Attach the guards 3 (RH and LH side) and
plates 4-5 using washers 6 and screws 7.
Attach grease nipples 1-2 in the proper
holes (RH and LH side).
In this step, you will use:
Item 1 : 2 grease nipples M10
Item 2 : 4 grease nipples M6
Item 6 : 8 flat washers ø8.5 (ø0.33”)
Item 7 : 8 screws M8x16 (0.31”x0.63”)
Assembly is now completed, and the machine should appear as shown in the
illustration.
