20

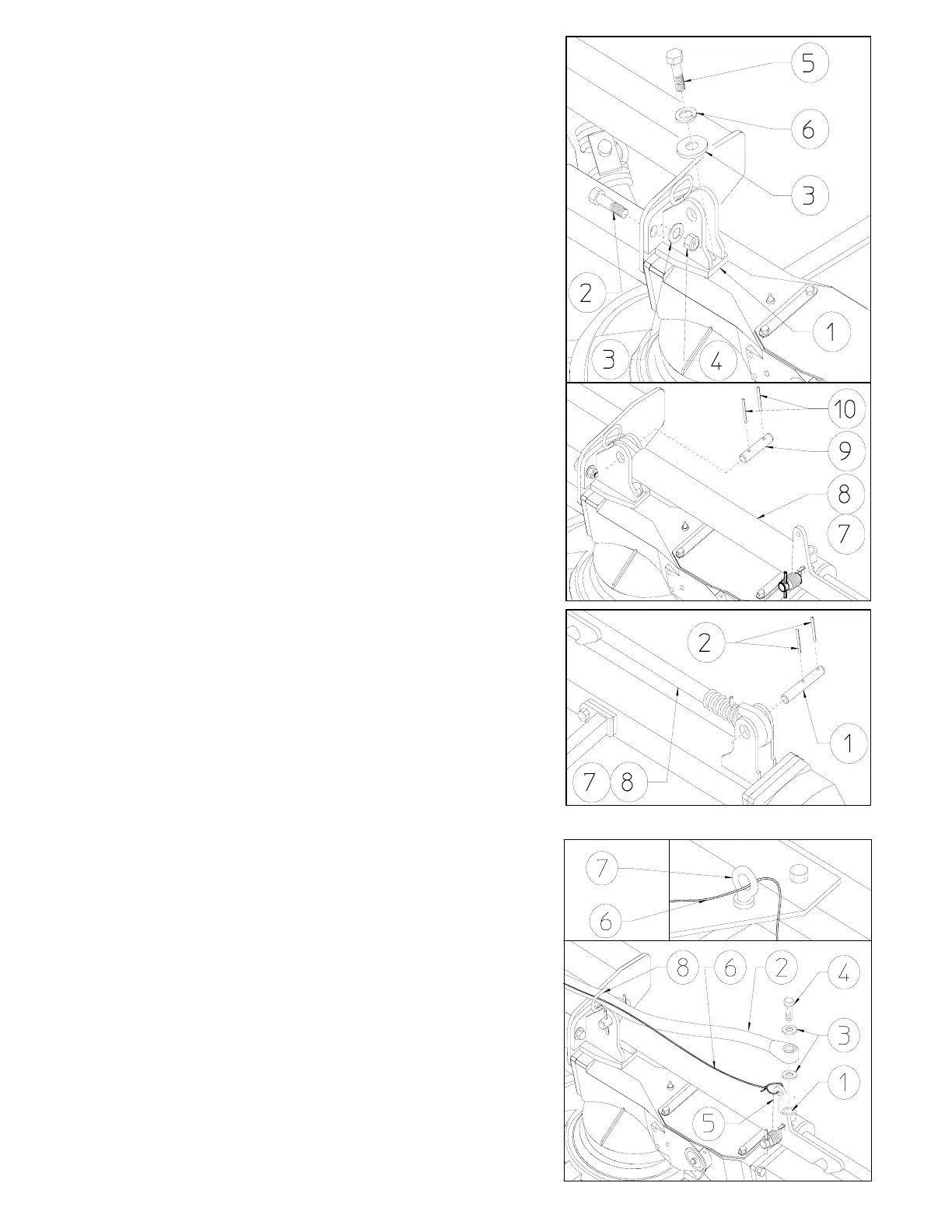

STEP “A”
Attach the supports 1* (RH and LH side) using
washers 3*-6*, screws 2*-5* and nuts 4*.
Attach the cylinders 7-8 (RH-LH) using pins 9
and spring pins 10.
In this step, you will use:
Item 2*: 4 screws M12x35 (0.47”x1.38”)
Item 3*: 6 flat washers ø13 (0.51”)
Item 4*: 4 nut M12 (0.51”)
Item 5*: 2 screws M12x25 (0.47”x1”)
Item 6*: 2 spring washers ø13 (0.51”)
Item 9 : 2 pins ø20x70 (0.79”x2.76”)
Item 10 : 4 spring pins ø6x35 (0.24”x1.38”)
*They are valid if we convert a machine
with manual fold into one with hydraulic
fold.
These particulars are included on those
machines already planned with hydraulic
fold.
STEP “B”
Continue to secure cylinders 7-8 (RH-LH) using
pins 1 and spring pins 2.
In this step, you will use:
Item 1 : 2 pins ø20x95 (0.79”x3.74”)
Item 2 : 4 spring pins ø6x35 (0.24”x1.38”)
STEP “C-D”
Pass rope 6 trough loops 7 (RH and LH side).
Pass hoses 2 and rope 6 trough loops 8 on
cylinder supports (RH and LH side).
Attach the eye hose 2 to hole 1 (RH and LH
side) using washers 3 and fitting 4.
Fasten rope 6 to lever 5. (RH and LH side)
In this step, you will use:
Item 2 : 2 hoses 1/4”x1040 (1/4”x41”)
Item 3 : 4 copper washers 3/8”
Item 4 : 2 fittings 3/8”
