21

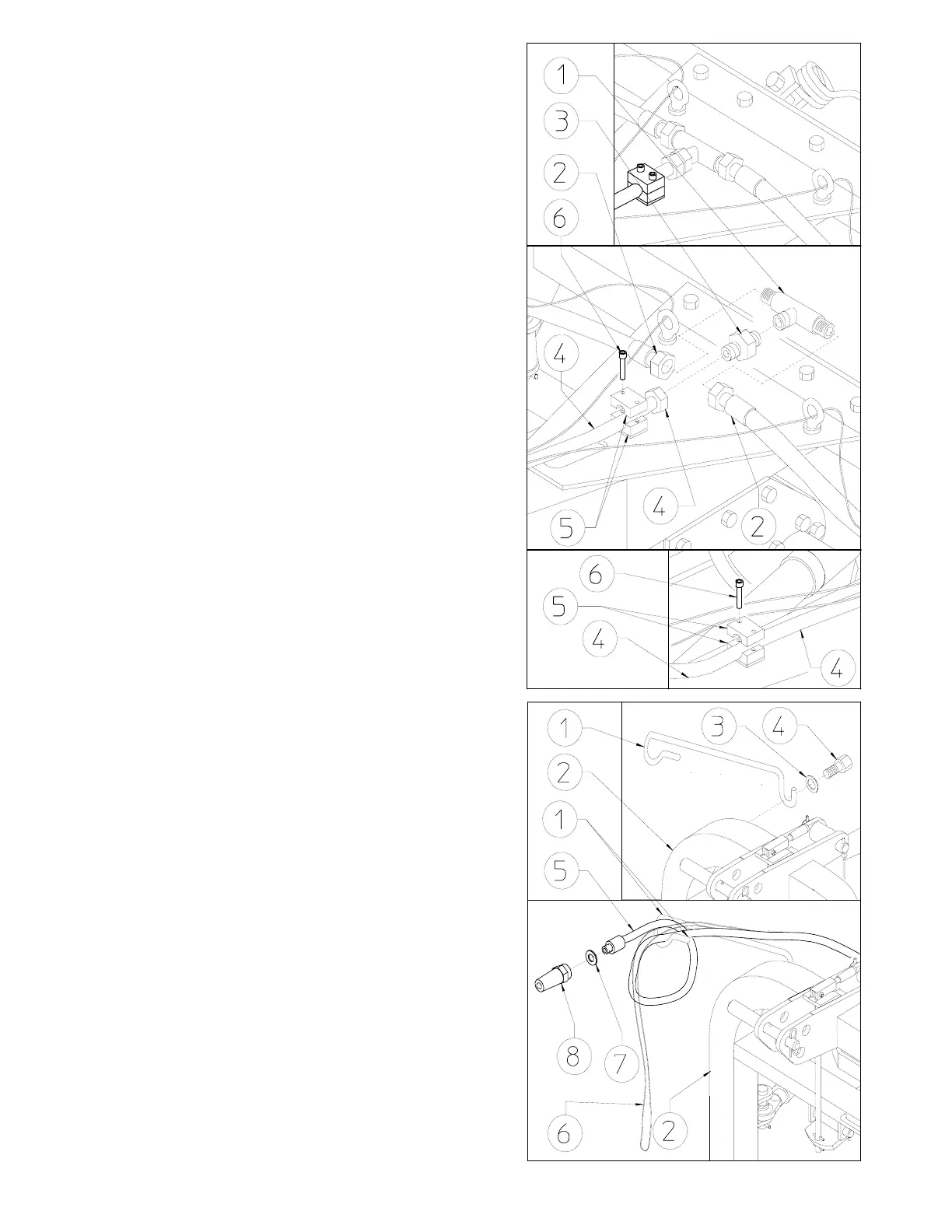

STEP “E”-“F”
Join hoses 2 to connector 1.
Attach nipple 3 to connector 1.
Attach hose 4 to nipple 3.
Secure hose 4 with collars 5 and
screws 6.
In this step, you will use:
Item 1 : 1 “T” connector 1/4”
Item 2 : 2 hoses (step C-D)
Item 3 : 1 nipple 1/4” - 3/8”
Item 4 : 1 hose 3/8”x2200 (3/8”x87”)
Item 5 : 4 hose collars ø18 (ø0.71”)
Item 6 : 4 screws M6x25 (0.24”x1”)
STEP “G”–“H”
Apply the support 1 to the 3
rd
point hitch 2
by means of the washer 3 and the screw 4.
Rest the hose and the rope 6 on the support 1.
Apply the copper washer 7 and the rapid
coupling 8 to the hose.
In this step, you will use:
Item 3 : 1 washer ø11-30x2.5
(ø0.43-1.18”x0.1”)
Item 4 : 1 screw M10x25 (0.39”x1”)
Item 5 : 1 hose (see item 4 on step “E”)
Item 7 : 1 copper washer ½”
Item 8 : 1 rapid coupling ½”
