11. System configuration
Pump settings => Zone 1 Settings => Lube Control => Valve

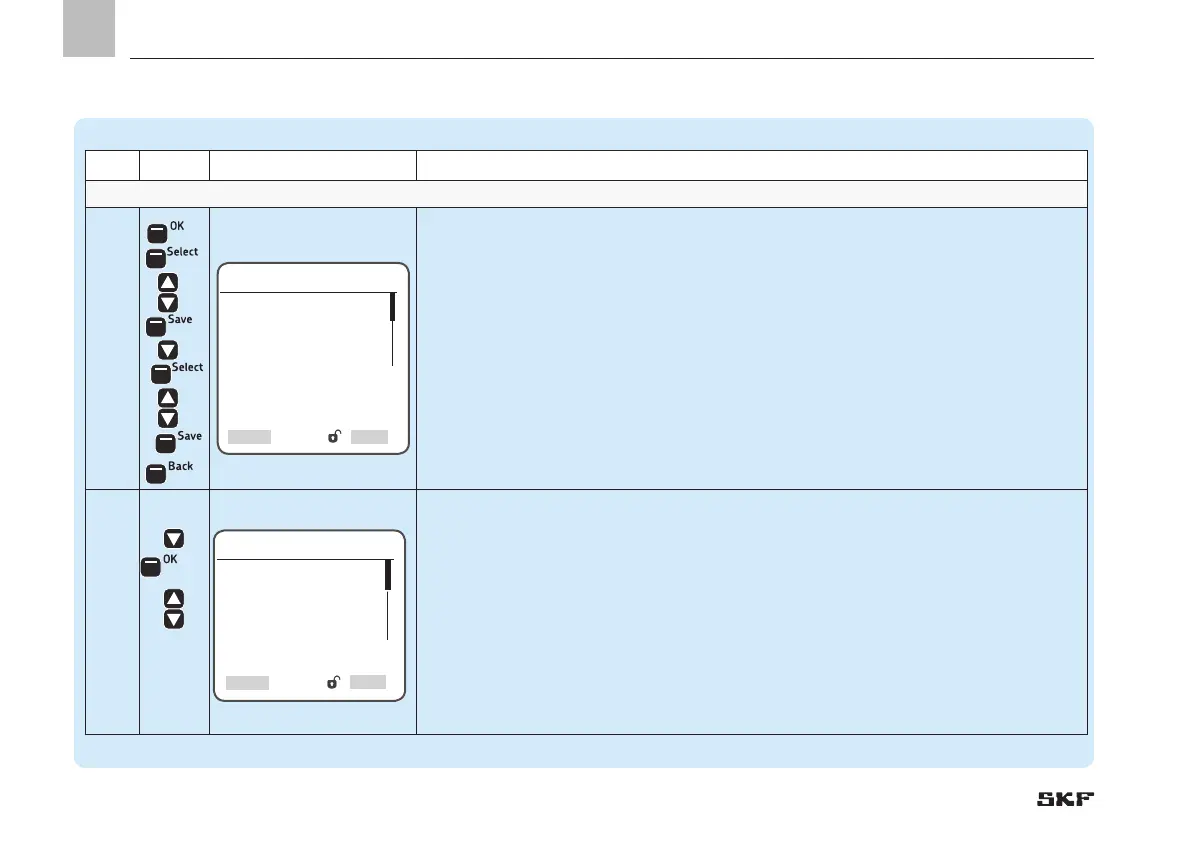

Step Key Display Description
Zone 1 Settings/Position of Valve B
1.2
• Use <OK arrow key> to select valve B (activate zone valve B)
• Press <Select control key>
• Use <down/up arrow key> to select between menu items normally open, normally
closed, or disabled
• Press <Save control key>
• Use <down arrow key> to select the Output No. menu item
• Press <Select control key>
• Use <down/up arrow key> to enter the output No.
• Press <Save control key>
• Press <Back control key>
1.3
• Use <down arrow key> to select Press. Sensor at EOL
• Press <OK control key>
)The following settings are available:
o disabled / normally open / normally closed / transducer 0-10V / transducer 2-10V /
transducer 0-20mA / transducer 4-20mA / transducer 1-6V
• Use <down/up arrow key> to select the sensor type
Valve B
Output Type
[
<<normally open>><<normally closed>>
<<disabled>>
]
Output No.
[0.000]
Select
Back
Press. Sensor at EOL
Sensor Type
[normally open]
Input
[1.01] AI
Select
Back
Settings with EM U2
