11. System configuration
Pump settings => Zone 1 Settings => Lube Control => Press. Sensor at EOL
Step Key Display Description
Zone 1 Settings/Lube Control Zone 1 Pressure sensor at end of line (EOL)
1.2
With sensor selection as transducer (see p. 41 for functional description of transducer):
• Use <down/up arrow key> to select the sensor type transducer
• Press <Save control key>
• Use <down arrow key> to select the Input A menu item
• Press <Select control key>
• Use <right/left arrow key> to enter the Input No.
• Press <Save control key>
• Repeat entry for Input B
• Use <down arrow key> to select the Minimal Value (minimum permissible opening
pressure) menu item
• Press <Select control key>
• Use <right/left arrow key> to enter the Minimal Value (PSI)
• Press <Save control key>
• Repeat entry for Maximal Value (maximum permissible opening pressure)
• Use <down arrow key> to select the Min. Absolute Pressure menu item
• Press <Select control key>
• Use <right/left arrow key> to enter the Min. Absolute Pressure (PSI)
• Press <Save control key>
• Repeat entry for Min. Absolute Pressure

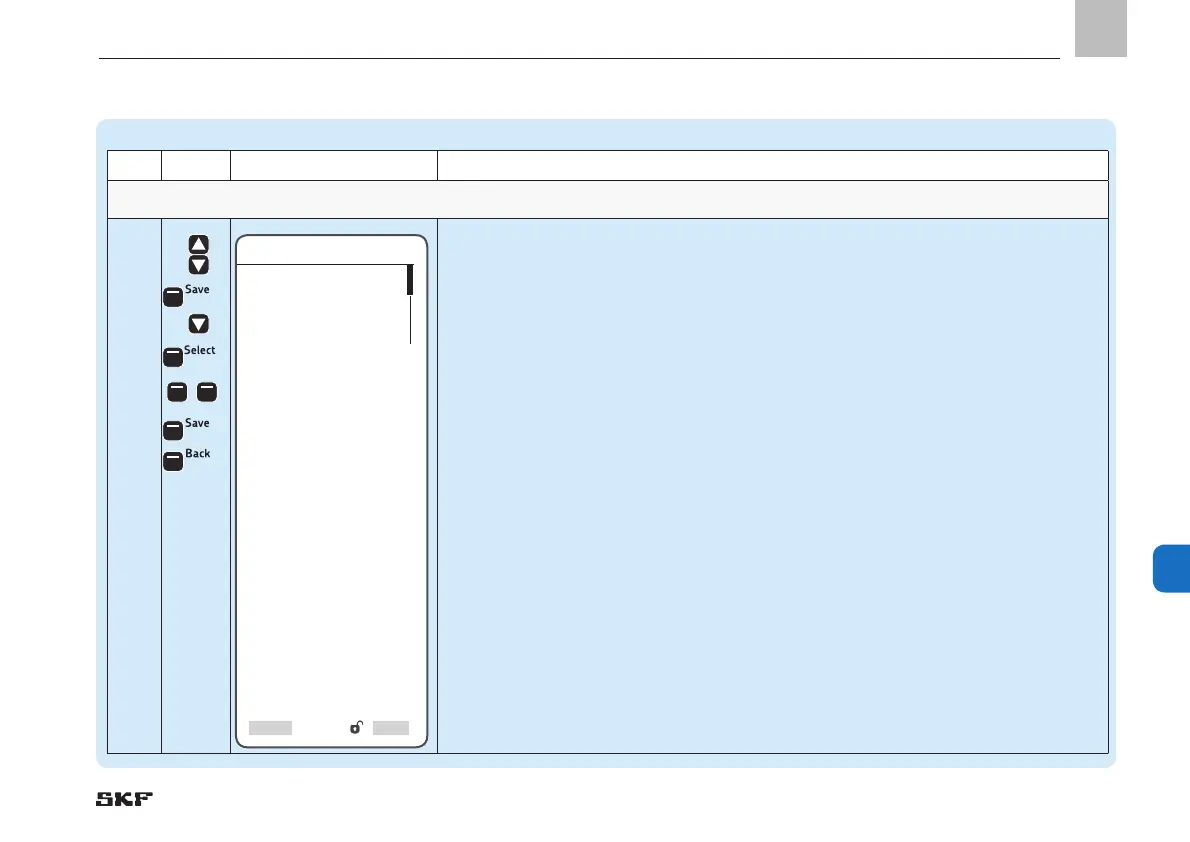

Press. Sensor at EOL
SelectBack
Sensor Type
[ << transducer 1-6V >>
<< transducer 4-20 mA >>
<<transducer 0-20mA >>
<<transducer 2-10V >>
<<transducer 0-10V>>
<< normally closed >>
<< normally open >>
<<disabled>> ]
Input A
[ 1.02 ] AI
Input B
[ 1.01 ] AI
Minimal Value
[ 0000 ] PSI
Maximal Value
[ 0000 ] PSI
Min Abs. Pressure
[ 0000 ] PSI
Max. Abs. Pressure
[ 0000 ] PSI
Min Dif. Pressure
[ 0000 ] PSI
Max. Dif. Pressure
[ 0000 ] PSI
