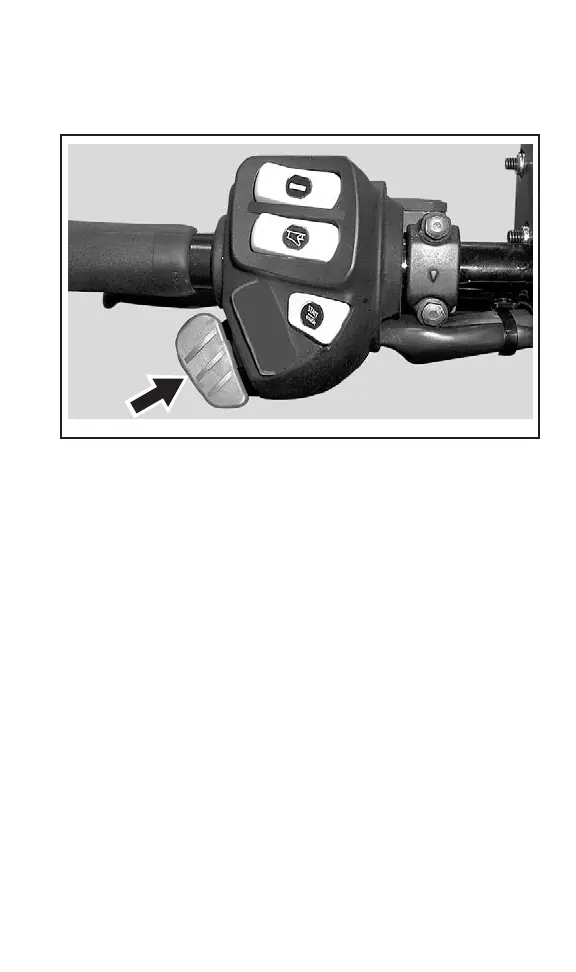

14) Headlamp Dimmer Switch
Located on left hand side of handlebar, allows selection of headlamp
beam. Note that lights are automatically ON whenever the engine
is running.
A33E04A
TYPICAL
15) High Beam Pilot Lamp (Blue)
Lights when headlamp is on HIGH beam.
16) Oil Pilot Lamp
2-Stroke Models
This pilot lamp will glow up when injection oil level is low. Stop ve-
hicle in a safe place then, replenish injection oil reservoir.
4-Stroke Models
This pilot lamp will glow up when engine oil pressure is too low. Stop
vehicle in a safe place then, check oil level and replenish as described
in FLUID LEVEL.
Restart engine, oil pilot lamp must turn off after few seconds. If oil
pilot lamp still glows up, stop engine and have lubrication system
inspected by an authorized SKI-DOO dealer.
17) Low Battery Voltage Pilot Lamp
This lamp will light up to indicate a low battery voltage condition.
See an authorized SKI-DOO dealer as soon as possible.
__________________________
89
