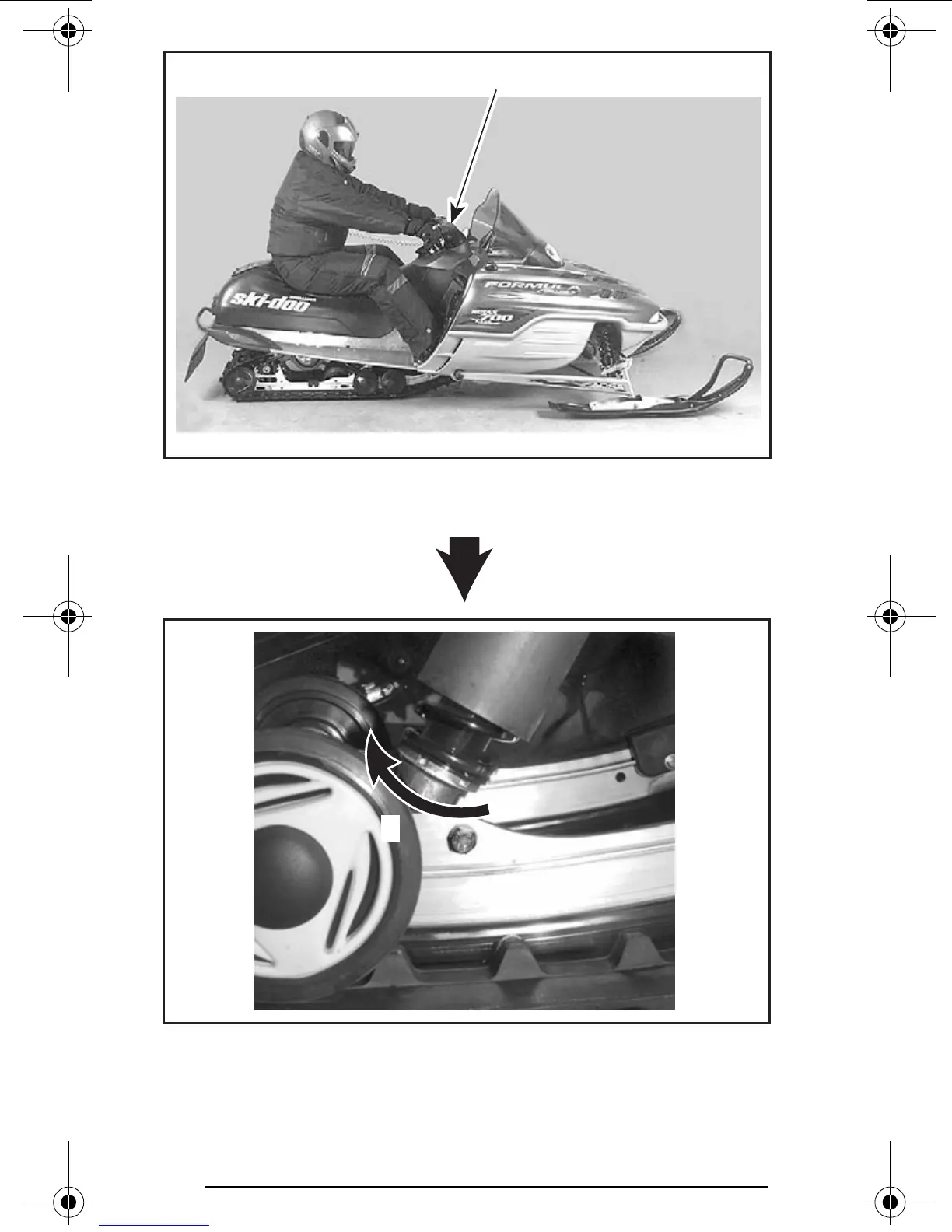

TYPICAL — TOO SOFT OF ADJUSTMENT

1. Steering hard to turn

TYPICAL

1. Use adjuster wrench provided in tool bag to increase preload

A32F0EA

A32F01A

Mmo2003-003a.book Page 82 Tuesday, March 19, 2002 2:22 PM
