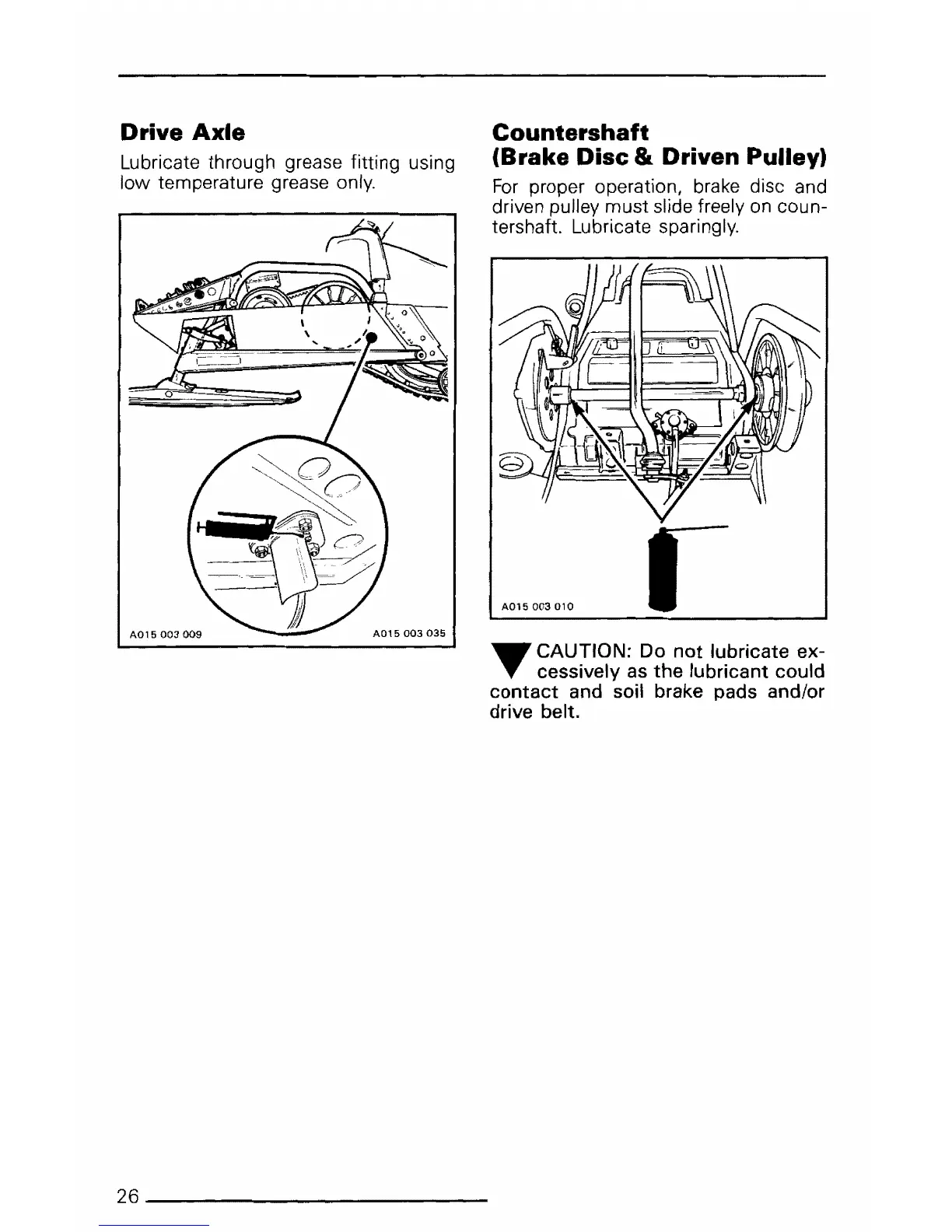

Drive
Axle
Lubricate through grease fitting using
low temperature grease only.
26----------------------------
Counters
haft
(Brake Disc & Driven Pulley)
For
proper operation, brake disc and
driven pulley must slide freely
on
coun-
tershaft. Lubricate sparingly.
A015
003
010
r
-.r
CAUTION: Do
not
lubricate ex-
~
cessively
as
the
lubricant could
contact
and soil brake pads and/or
drive belt.
