Ski-Doo MX - Controls and Instruments Overview; Pilot Lamps and Gauges; Steering and Starting Controls

CONTROLS/
INSTRUMENTS ______________________ __
A
R
Q
p
L
0
N------~-------
A015 007 046

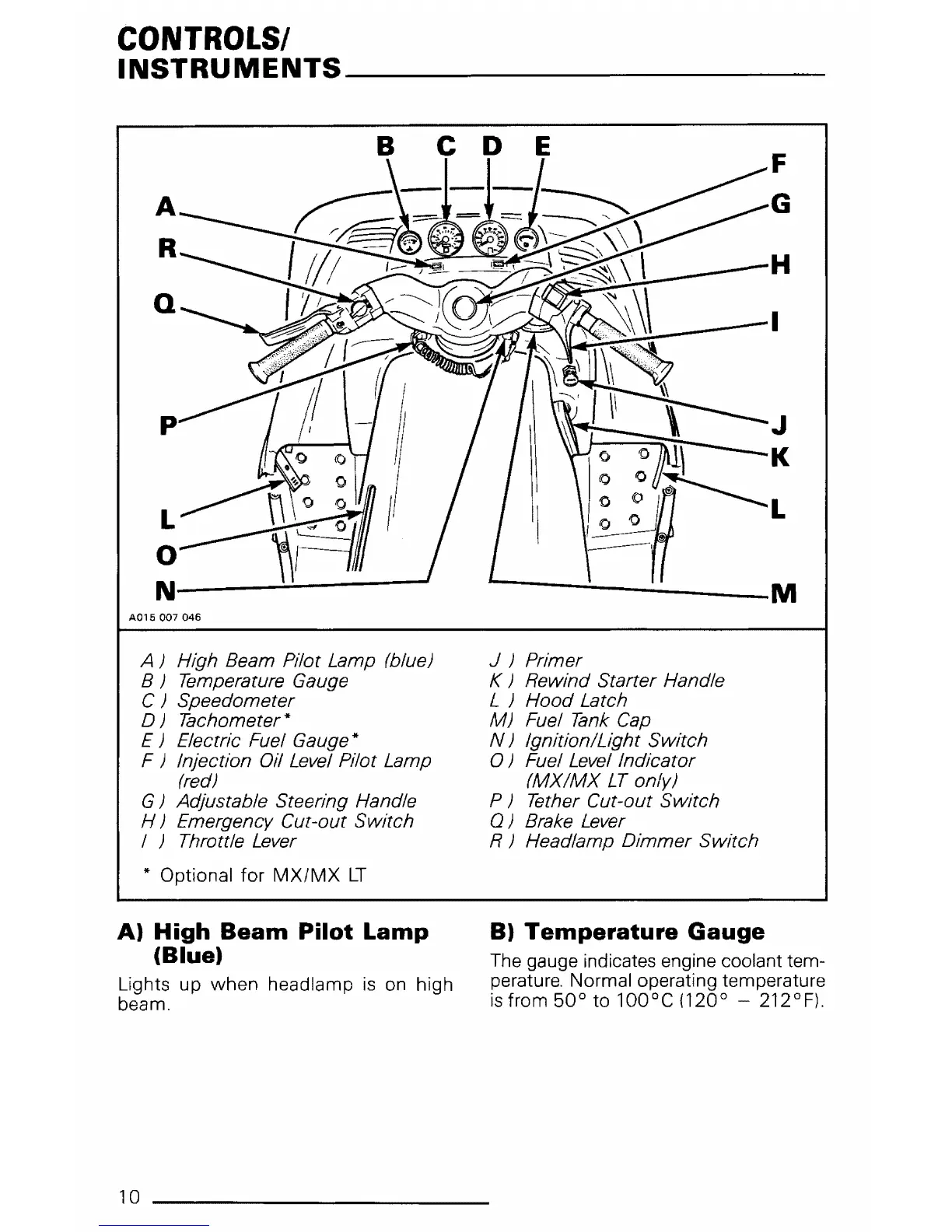

A) High Beam Pilot Lamp (blue)
B ) Temperature Gauge
C ) Speedometer
D ) Tachometer*
E ) Electric Fuel Gauge*
F) Injection 0!1 Level Pilot Lamp
(red)
G ) Adjustable Steering Handle
H) Emergency Cut-out Switch
I ) Throttle Lever
* Optional for MX/MX LT
A) High Beam Pilot Lamp
(Blue)
Lights up when headlamp is on high
beam.
10 -------------------------
J) Primer
K ) Rewind Starter Handle
L ) Hood Latch
MJ Fuel Tank Cap
N) Ignition/Light Switch
0) Fuel Level Indicator
(MX/MX LT only)
P ) Tether Cut-out Switch
Q ) Brake Lever
R ) Head/amp Dimmer Switch
B) Temperature Gauge
F
G
H
I
The gauge indicates engine coolant tem-
perature. Normal operating temperature
is from 50° to 100°C (120° 212°F).
