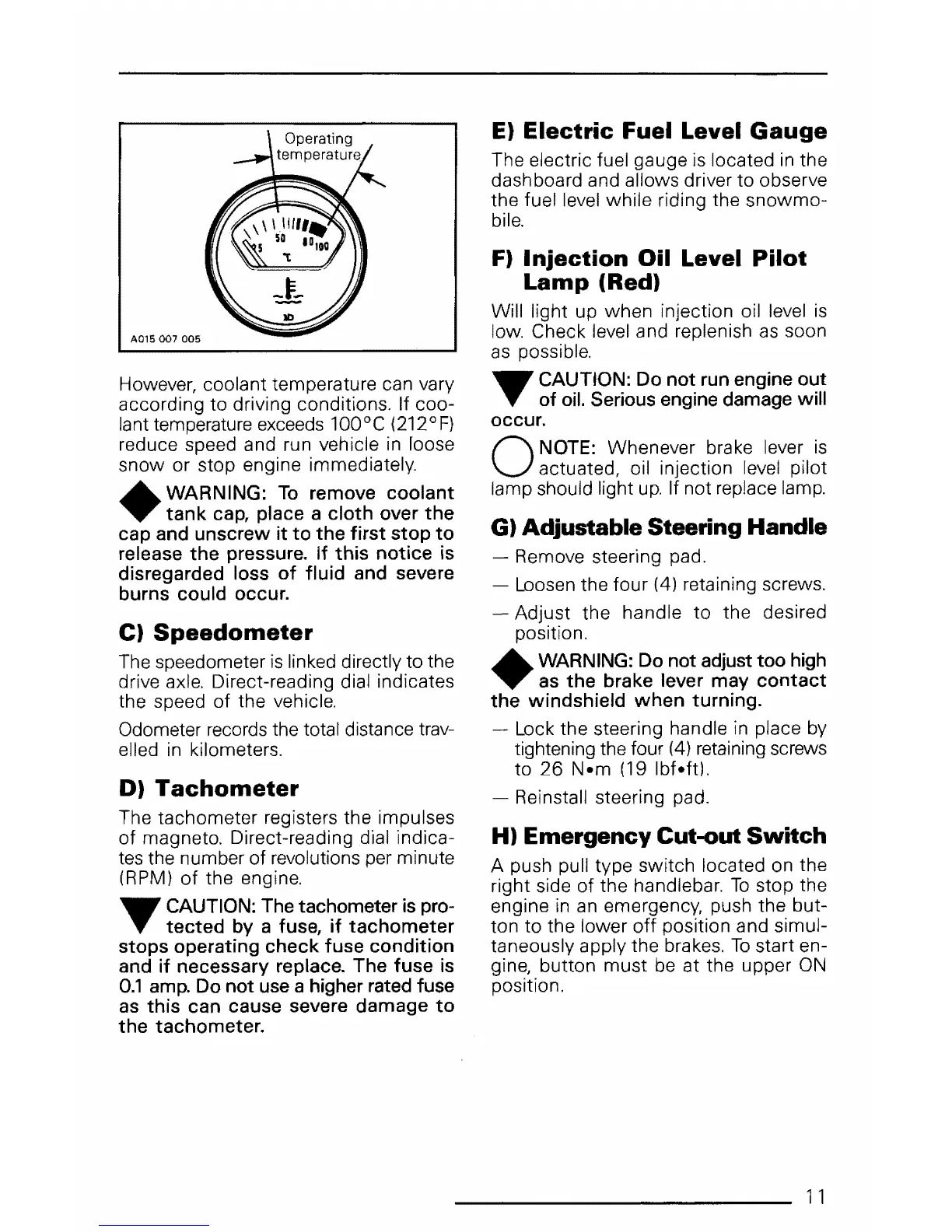

A015
007
005
However, coolant temperature can vary
according to driving conditions. If coo-
lant temperature exceeds 100°C
F)
reduce speed and run vehicle
in
roose
snow or stop engine immediately.
+
WARNING:
To
remove coolant
tank cap, place a cloth over the
cap and unscrew it to the first stop to
release the pressure. If this notice
is
disregarded loss of fluid and severe
burns could occur.
C)
Speedometer
The speedometer
is
linked directly to the
drive axle. Direct-reading dial indicates
the speed
of
the vehicle.
Odometer records the total distance trav-
elled
in
kilometers.
D)
Tachometer
The tachometer registers the impulses
of magneto. Direct-reading dial indica-
tes the number of revolutions per minute
(RPM)
of
the engine.
,.,
CAUTION: The tachometer
is
pro-
T tected
by
a fuse, if tachometer
stops operating check fuse condition
and if necessary replace. The fuse
is
0.1
amp.
Do not
use
a higher rated fuse
as
this can cause severe damage
to
the tachometer.
E)
Electric Fuel Level
Gauge
The electric fuel gauge
is
located
in
the
dashboard and allows driver to observe
the fuel level while riding the snowmo-
bile.
F)
Injection
Oil Level
Pilot
Lamp
(Red)
Will light up when injection oil level
is
low. Check level and replenish
as
soon
as
possible.
,.,
CAUTION: Do not
run
engine out
T of
oil.
Serious engine damage will
occur.
0
NOTE: Whenever brake lever
is
actuated, oil injection
level
pilot
lamp should light
up.
If not replace
lamp.
G) Adjustable Steering Handle
- Remove steering pad.
- Loosen the four (4) retaining screws.
Adjust the handle to the desired
position.
+
WARNING: Do not adjust too
high
as
the brake lever may contact
the windshield when turning.
Lock the steering handle
in
place
by
tightening the four
(4)
retaining screws
to
26
N•m
(19
lbf•ftl.
Reinstall steering pad.
H)
Emergency Cut-out
Switch
A push pull type switch located on the
right side
of
the handlebar.
To
stop the
engine
in
an
emergency, push the but-
ton to the lower
off
position and simul-
taneously apply the brakes.
To
start en-
gine, button must be at the upper
ON
position.
11
