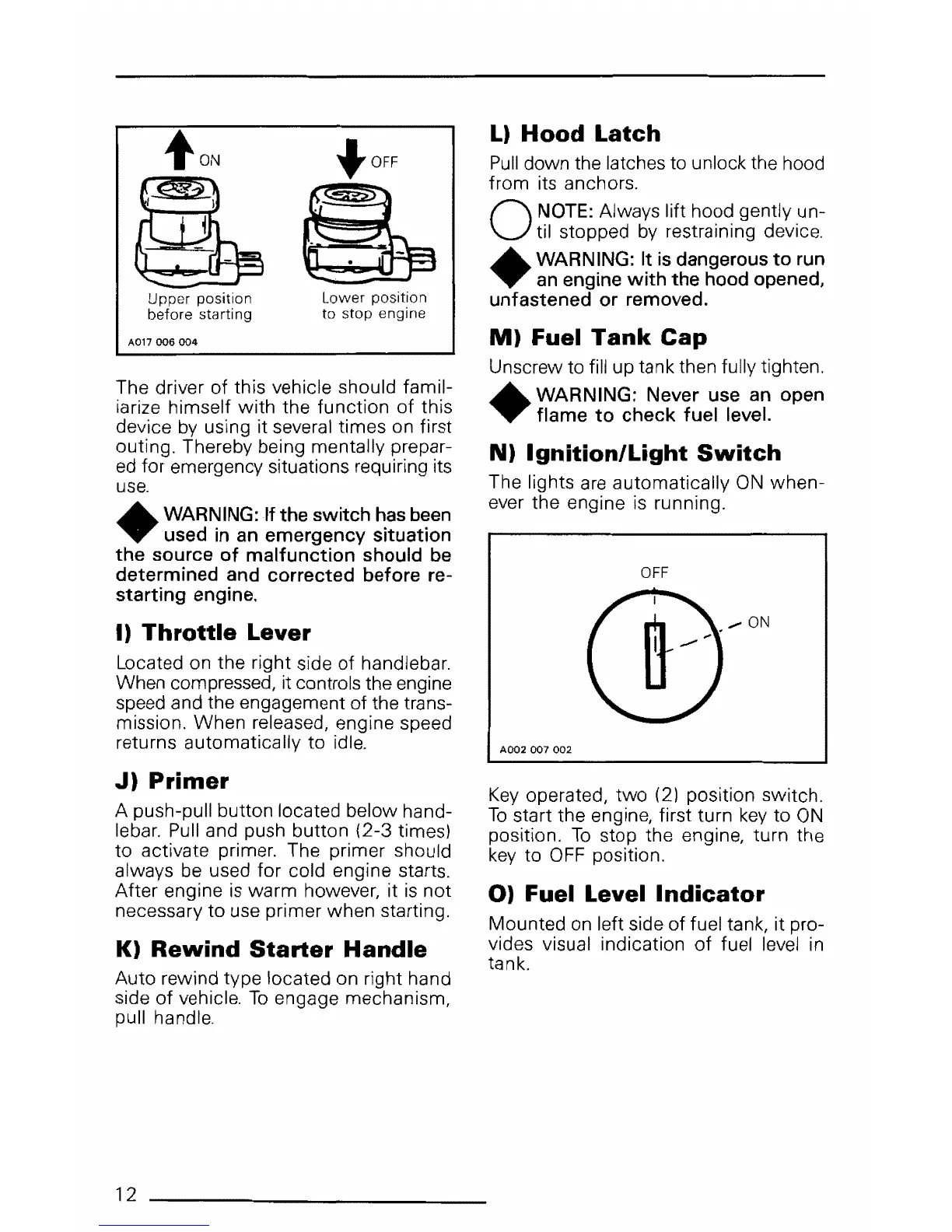

+ON
+OFF
~~
position
Lower
position
starting
to
stop
engine
A017
006 004
The driver
of
this vehicle should famil-
iarize himself
with
the function
of
this
device
by
using
it
several times on first
outing. Thereby being mentally prepar-
ed
for emergency situations requiring its
use.
..&..
WARNING: If the switch has been
T used in an emergency situation
the
source
of
malfunction
should be
determined and corrected before re-
starting
engine.
I)
Throttle
Lever
Located on the right side
of
handlebar.
When compressed, it controls the engine
speed and the engagement
of
the trans-
mission.
When
released, engine speed
returns automatically
to
idle.
J)
Primer
A push-pull button located below hand-
lebar. Pull and push button
{2-3
times)
to
activate primer. The primer should
always
be
used for cold engine starts.
After engine
is
warm
however, it
is
not
necessary to use primer
when
starting.
K)
Rewind
Starter
Handle
Auto rewind type located on right hand
side
of
vehicle.
To
engage mechanism,
pull handle.
12
L)
Hood
Latch
Pull
down the latches to unlock the hood
from its anchors.
0
NOTE: Always lift hood gently un-
til stopped by restraining device .
..&..
WARNING: It
is
dangerous
to
run
T an engine
with
the
hood opened,
unfastened
or
removed.
M)
Fuel
Tank
Cap
Unscrew to fill up tank then fully tighten.
..&..
WARNING: Never use an open
T flame
to
check
fuel level.
N)
Ignition/Light
Switch
The lights are automatically
ON
when-
ever the engine is running .
OFF
A002
007
002
Key
operated,
two
(2)
position switch.
To
start the engine, first turn key to
ON
position.
To
stop the engine, turn the
key
to
OFF
position.
0)
Fuel Level
Indicator
Mounted on left side
of
fuel tank, it pro-
vides visual indication
of
fuel level
in
tank.
