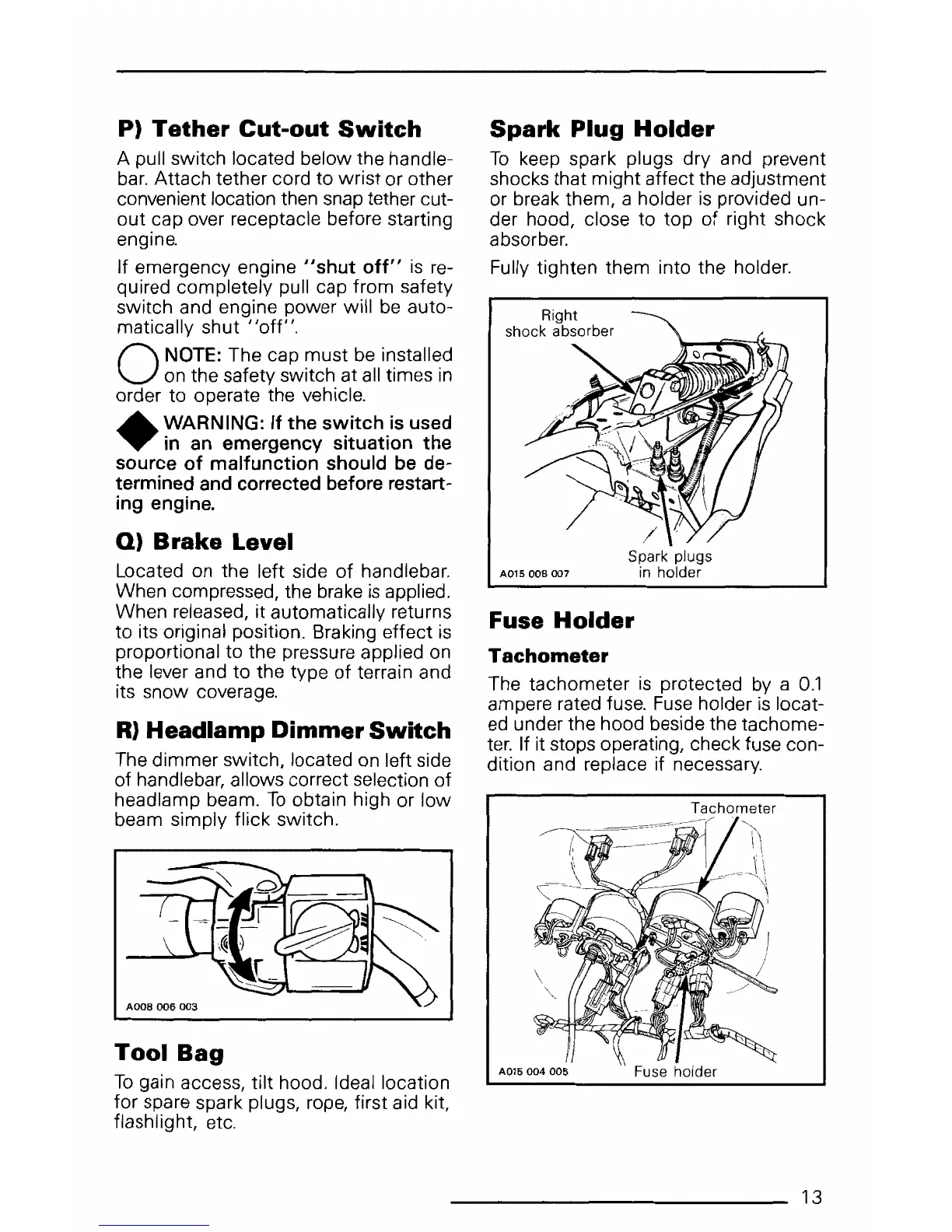

P)
Tether
Cut-out
Switch
A pull switch located below the handle-
bar.
Attach tether cord to wrist or other
convenient location then snap tether cut-
out
cap over receptacle before starting
engine.
If emergency engine
~~shut
off"
is
re-
quired completely pull cap from safety
switch and engine power will
be
auto-
matically shut
11
0ff".
0
NOTE: The cap must
be
installed
on the safety switch at
all
times
in
order to operate the vehicle .
..A..
WARNING: If the switch
is
used
T
in
an
emergency situation the
source of malfunction should
be
de-
termined
and
corrected before restart-
ing engine.
Q)
Brake Level
Located on the left side
of
handlebar.
When compressed, the brake
is
applied.
When released, it automatically returns
to its original position. Braking effect
is
proportional to the pressure applied on
the lever and to the type
of
terrain and
its snow coverage.
R)
Headlamp
Dimmer
Switch
The dimmer switch, located on left side
of handlebar/ allows correct selection of
headlamp beam.
To
obtain high or low
beam simply flick switch.
Tool
Bag
To
gain access/ tilt hood. Ideal location
for spare spark plugs, rope/ first aid kit,
flashlight, etc.
Spark
Plug
Holder
To
keep spark plugs dry and prevent
shocks that might affect the adjustment
or break them, a holder
is
provided un-
der hood, close to top
of
right shock
absorber.
Fully tighten them into the holder.
Right
shock absorber
A015
008 007
Spark plugs
in
holder
Fuse
Holder
Tachometer
The tachometer
is
protected
by
a
0.1
ampere rated
fuse.
Fuse
holder
is
locat-
ed
under the hood beside the tachome-
ter.
If it stops operating/ check fuse con-
dition and replace if necessary.
13
