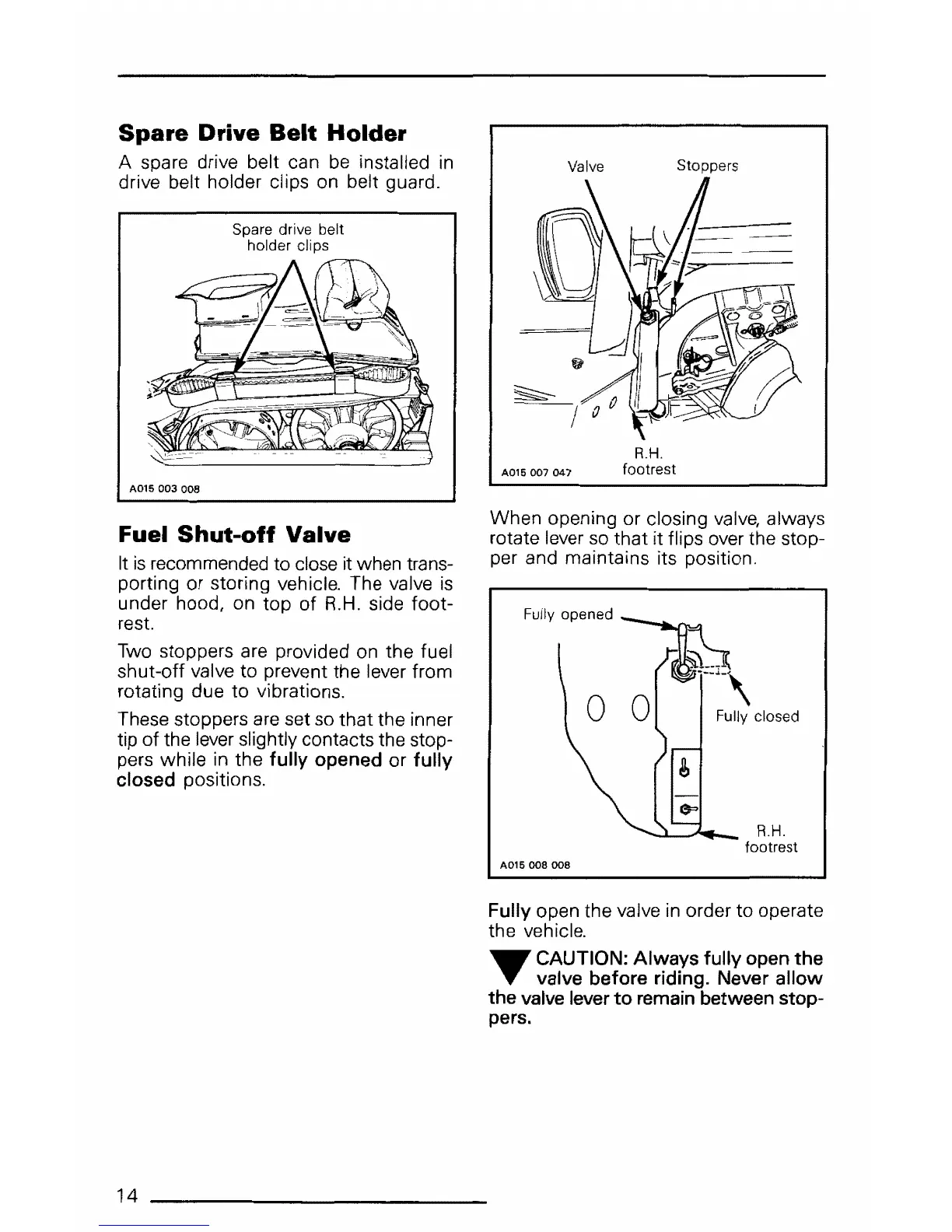

Spare
Drive
Belt
Holder
A spare drive belt can
be
installed
in
drive belt holder clips on belt guard.
A015
003
008
Spare drive belt
holder clips
Fuel
Shut-off
Valve
It
is
recommended to
close
it when trans-
porting or storing vehicle. The valve
is
under hood/ on top of
R.H.
side foot-
rest.
Two
stoppers are provided on the fuel
shut-off valve to prevent the lever from
rotating due to vibrations.
These stoppers
are
set
so
that the inner
tip of the
lever
slightly contacts the stop-
pers while in the
fully opened or fully
closed
positions.
14
---------------------------
Valve
A015
007 047
R.H.
footrest
Stoppers
When opening or closing
valve,
always
rotate lever
so
that it flips over the stop-
per and maintains its position.
Fully opened
~
A015
008 006
~~\
0 0 Fully closed
R.H.
footrest
Fully open the valve
in
order to operate
the vehicle.
-.r
CAUTION: Always fully open the
T valve before riding. Never allow
the valve lever to remain between stop-
pers.
