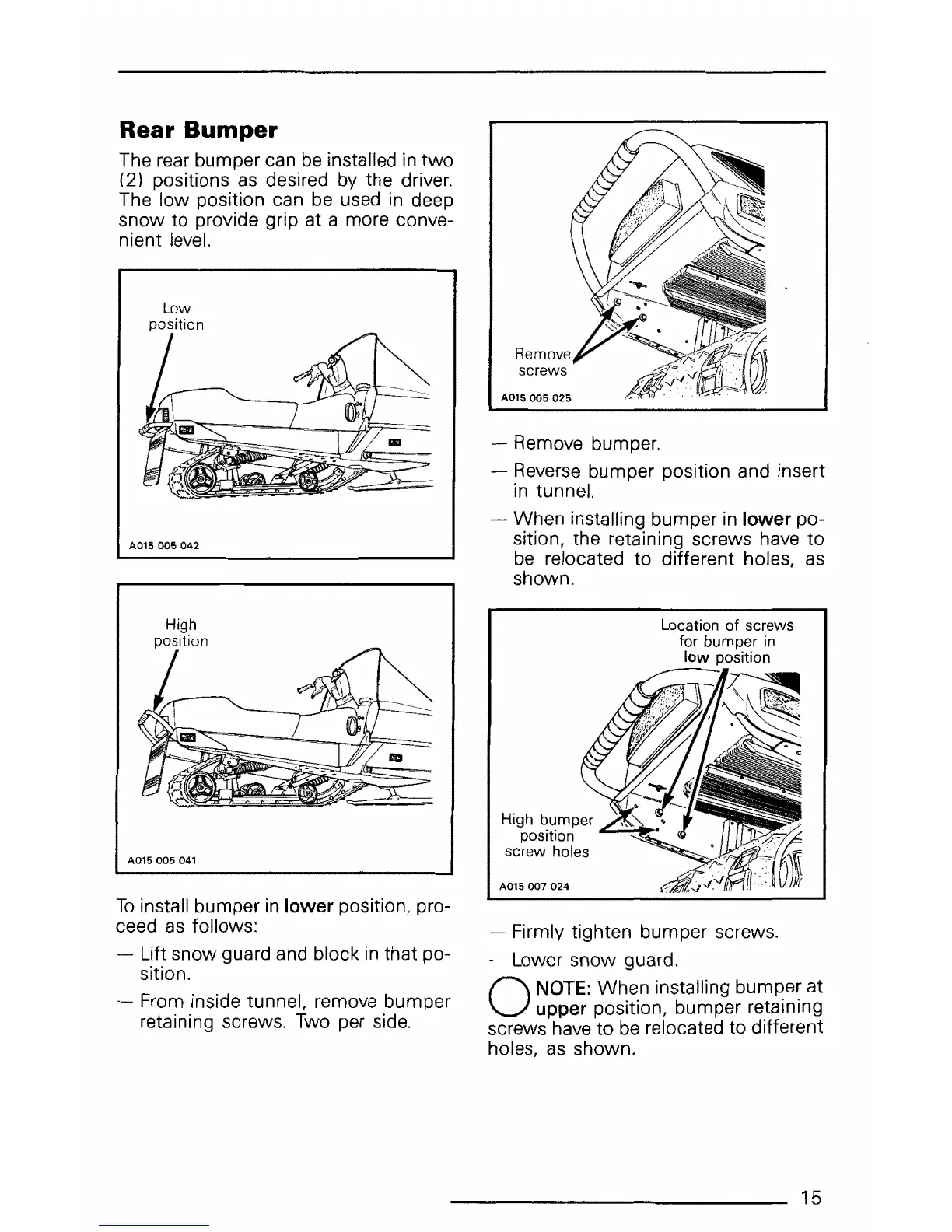

Rear
Bumper
The rear bumper can
be
installed
in
two
(2) positions
as
desired
by
the driver.
The low position can
be
used
in
deep
snow to provide grip at a more conve-
nient level.
A015
005 042
AOi5
005
041
To
install bumper
in
lower position, pro-
ceed
as
follows:
Lift snow guard and block
in
that po-
sition.
From inside tunnel, remove bumper
retaining screws.
Two
per
side.
- Remove bumper.
Reverse
bumper position and insert
in
tunnel.
When installing bumper
in
lower po-
sition, the retaining screws have to
be
relocated to different holes,
as
shown.
High bumper
position
......,_IIJH
screw holes
A015
007 024
Location of screws
for bumper
in
low
position
Firmly tighten bumper screws.
- Lower snow guard.
0
NOTE:
When installing bumper at
upper position, bumper retaining
screws
have
to
be
relocated to different
holes,
as
shown.
15
