Section 07 REAR SUSPENSION
Subsection 02 (TORQUE REACTION SUSPENSION)
07-02-6
For normal use, locate bolt through 3
rd
hole from
strap end.
1. 1
st
hole
2. 3
rd
hole
A. 11 N•m (97 lbf•in)
NOTE:
When towing a load, it is suggested to ad-
just stopper strap to its shortest length, soften
front springs of rear suspension and stiffen rear
springs. These adjustment will improve steering
ability.
Deep Snow Operation
When operating the vehicle in deep snow, it may
be necessary to change position of adjustment
cams, stopper strap and/or driver’s riding position,
to change the angle at which the track rides on
the snow. Operator’s familiarly with the various
adjustments as well as snow conditions will dic-
tate the most efficient combination.
LUBRICATION

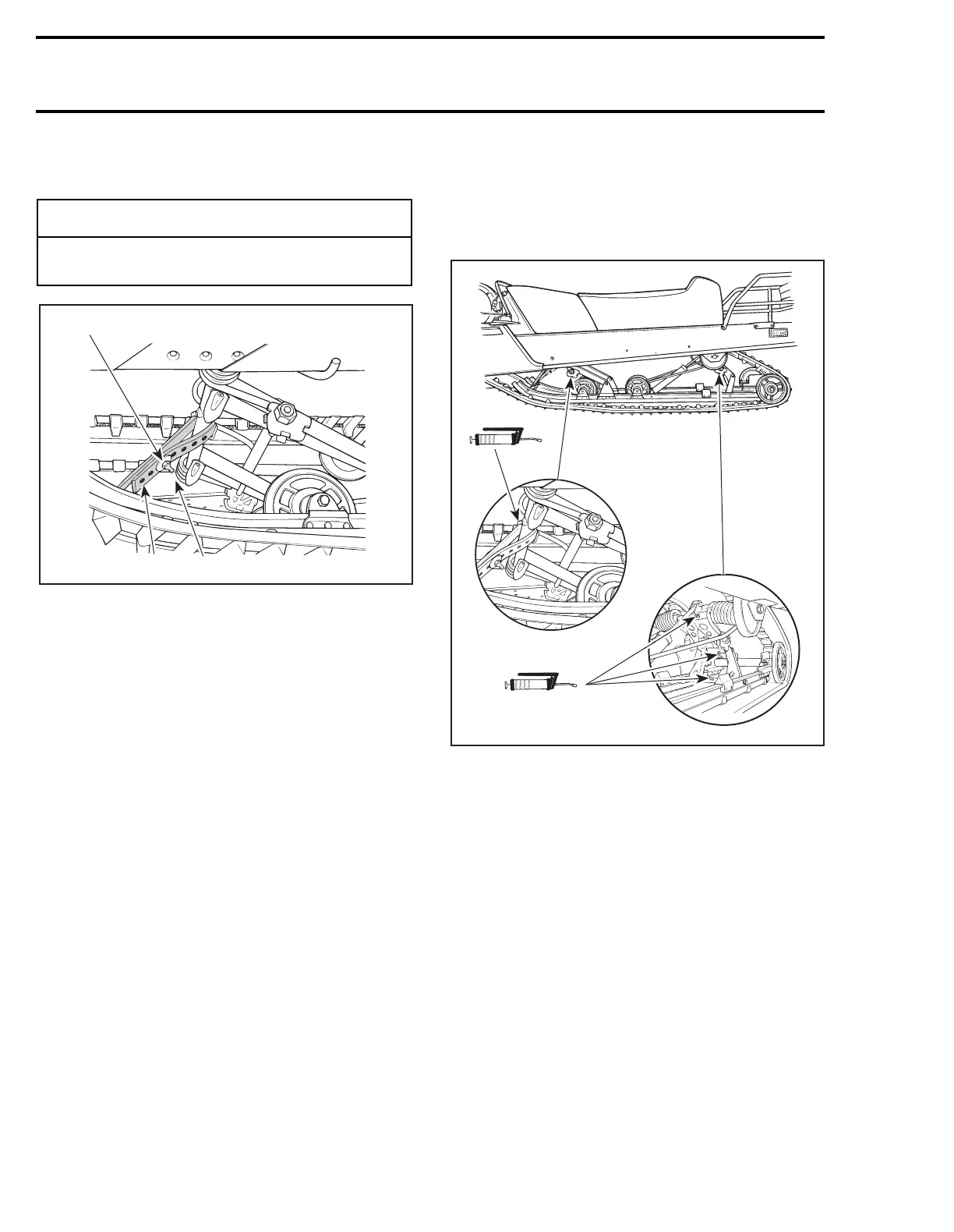

Lubricate front and rear arms at grease fittings using
synthetic grease (P/N 413 7115 00).
NOTE:
There are 4 grease fittings.
;
WARNING
Always torque the nut to 11 N•m (97 lbf•
in
).
Replace strap if worn or torn.
A05F0CA
A
12
A05F0GA
