Skil 2100DAF User Manual

INTENDED USE
This precision device is intended for
measuring and transferring of angles
(horizontal and vertical), e.g., for interior
fabrication, crown molding, stair construction,
exterior coverings, etc.

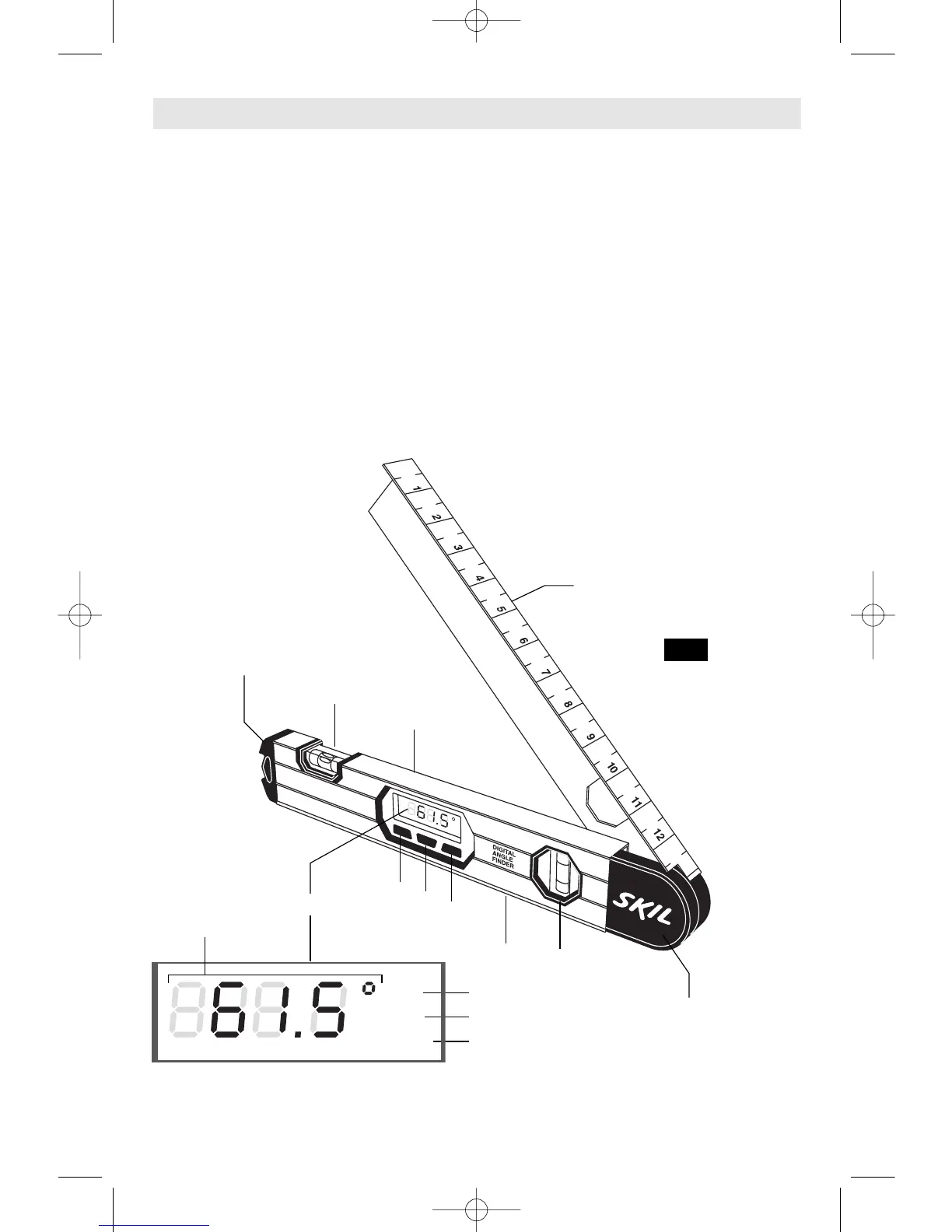

PRODUCT FEATURES
The numbering of the product features
shown refers to the illustration below.
1 Fold-out leg
2 Joint cover
3 Base leg
4 “ON/OFF” button
5 “Miter” button
6 “HOLD” button
7 Display
8 Spirit level for horizontal alignment
9 Spirit level for vertical alignment
10 End cap/battery lid
11 Contact edge
DISPLAY ELEMENTS
a
Reading
b Low battery (BAT) indicator
c Miter (MTR) indicator
d Hold (HOLD) indicator
-3-
Optimal operation of the measuring tool is possible only when the operating
instructions and information are read completely, and the instructions contained
t
herein are strictly followed.
SAVE THESE INSTRUCTIONS
Functional Description
1
2
a
c
d
b
3
10
4
5
6
7
8
9
11
BAT
MTR
HOLD
FIG. 1
SM angle finder 10-06 10/9/06 9:46 AM Page 3
