10
14. This drill press has 5 speeds: 570 rpm, 900 rpm, 1390 rpm,
2050 rpm and 3050 rpm. See inside of guard for specific placement
of belt on pulleys.
15. Think safety.
Safety is a combination of operator common sense and alertness at
all times when the drill press is being used.
Warning! Do not allow familiarity (gained from frequent use of
your drill press) to become commonplace. Always remember
that a careless fraction of a second is sufficient to inflict severe injury.
Warning! Some dust created by power sanding, sawing,
grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry
products, and
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety equip-
ment, such as those dust masks that are specially designed to filter
out microscopic particles.

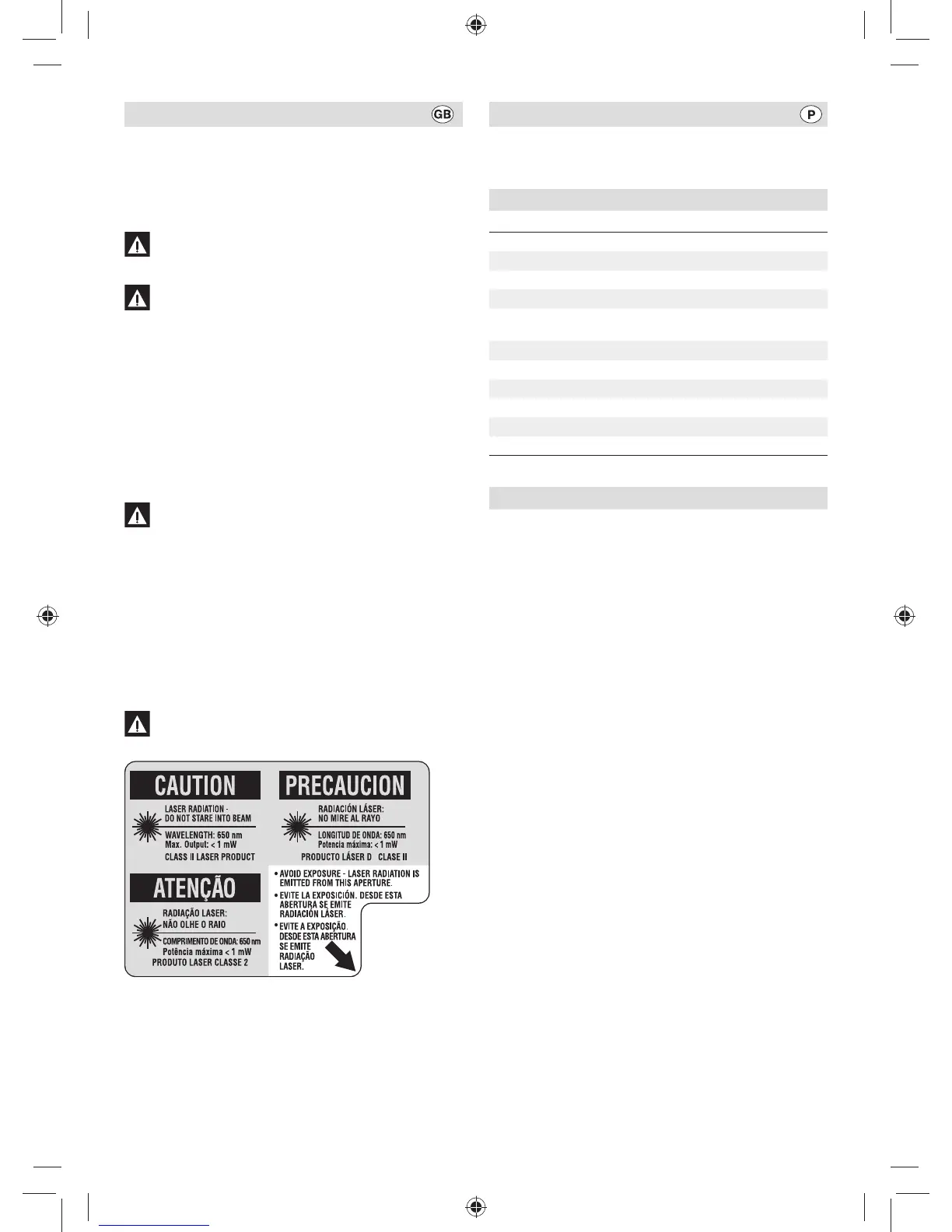

Laser safety
Warning! To reduce the risk of injury:
1. Do not stare directly at the laser beam. Eye damage may
occur if you deliberately stare into the beam.
2. The laser light beam used in this system is Class II with
maximum 1 mW and 650 nm wavelengths. Avoid direct eye
exposure.
3. The laser must be used and maintained in accordance with
the manufacturerís instructions:
• Never aim the beam at any person or an object other than the
workpiece.
• Do not project the laser beam into the eyes of others.
• Always ensure the laser beam is aimed at a workpiece without
reflective surfaces as the laser beam could be projected into
your eyes or the eyes of others.
Warning! Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
Especificações do motor e requisitos
elétricos
Características técnicas
Furadeira de bancada 3320
Tipo nº F 012 332 0..
Potência 127 – 220 V [W] 350
Frequência [Hz] 50 / 60
Consumo 127 V
220 V
[A]
[A]
2.8
1.6
Rotação em vazio [/min] 1.700
Capacidade de furar [mm]
60 (2 3/8”)
Capacidade do mandril 1,5 – 13 mm (1/16” – 1/2”)
Velocidades [/min] 570, 900, 1390, 2050, 3050
Tamanho da mesa [mm] 193,6 x 193,6
Peso conforme EPTA 01/2003 [kg] 28
Especificações do motor
No caso de mau funcionamento ou avaria, a conexão a terra propor-
ciona um caminho de resistência mínima para a corrente elétrica,
com a finalidade de reduzir o risco de descargas elétricas. Esta
ferramenta está equipada com um cabo elétrico que tem um con-
dutor de conexão a terra do equipamento e um plugue de conexão
a terra. O plugue deve ser introduzido em uma tomada coincidente
que esteja instalada e conectada a terra adequadamente, de acordo
com todos os códigos e regimentos locais. Antes de conectar o cabo
elétrico do motor à fonte de alimentação, certifique-se de que o
interruptor esteja na posição de desligado e verifique se a corrente
elétrica possui as mesmas características que as especificadas na
placa de identificação da furadeira de coluna.
