Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
Jigsaws
BLADE
HOLDER
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
FOOT
VENTILATION
OPENINGS
PLUNGER
TRIGGER
SWITCH
GEAR
HOUSING
TOP OF FRONT
HOUSING
CORD

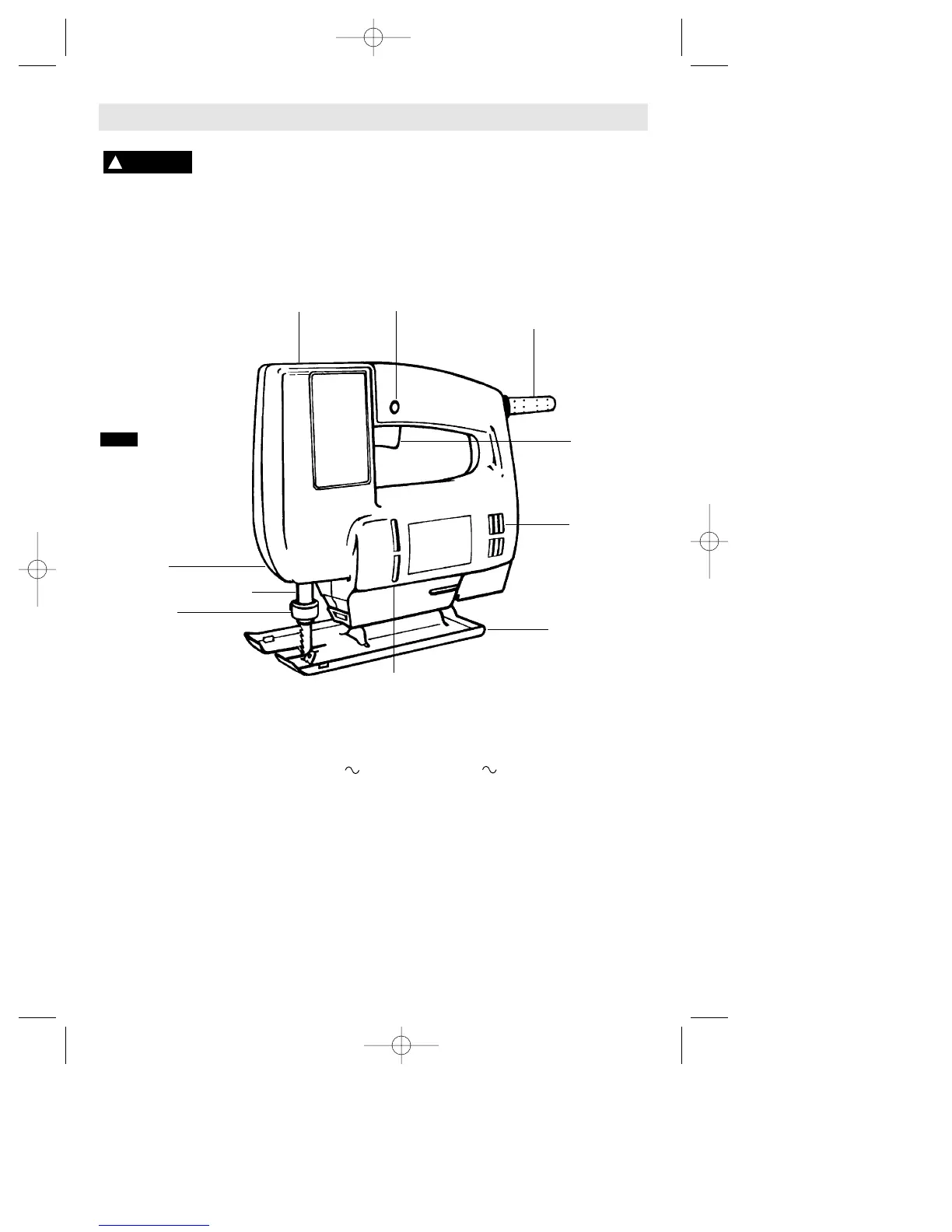

FIG. 1
Model number 4225 4235
Voltage rating 120 V 50 - 60Hz 120 V 50 - 60Hz
Amperage rating 3.2 A 3.2 A
No load speed n
0
3,200/min n
0
0-3,200/min
Blade Action Standard Standard
Stroke Length 16 mm 16 mm
Maximum Capacities
Wood 60 mm 60 mm
Aluminium 6 mm 6 mm
Steel 3 mm 3 mm
1 mm = .039 inches
