-6-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
MAXIMUM CAPACITIES
Model
Chuck Size
Mild
Hard
No. and type Metal Wood Masonry
6445 1/2” Keyed 1/2” 1/2” 1/2”
NOTE: For tool specifications refer to the nameplate on your tool.

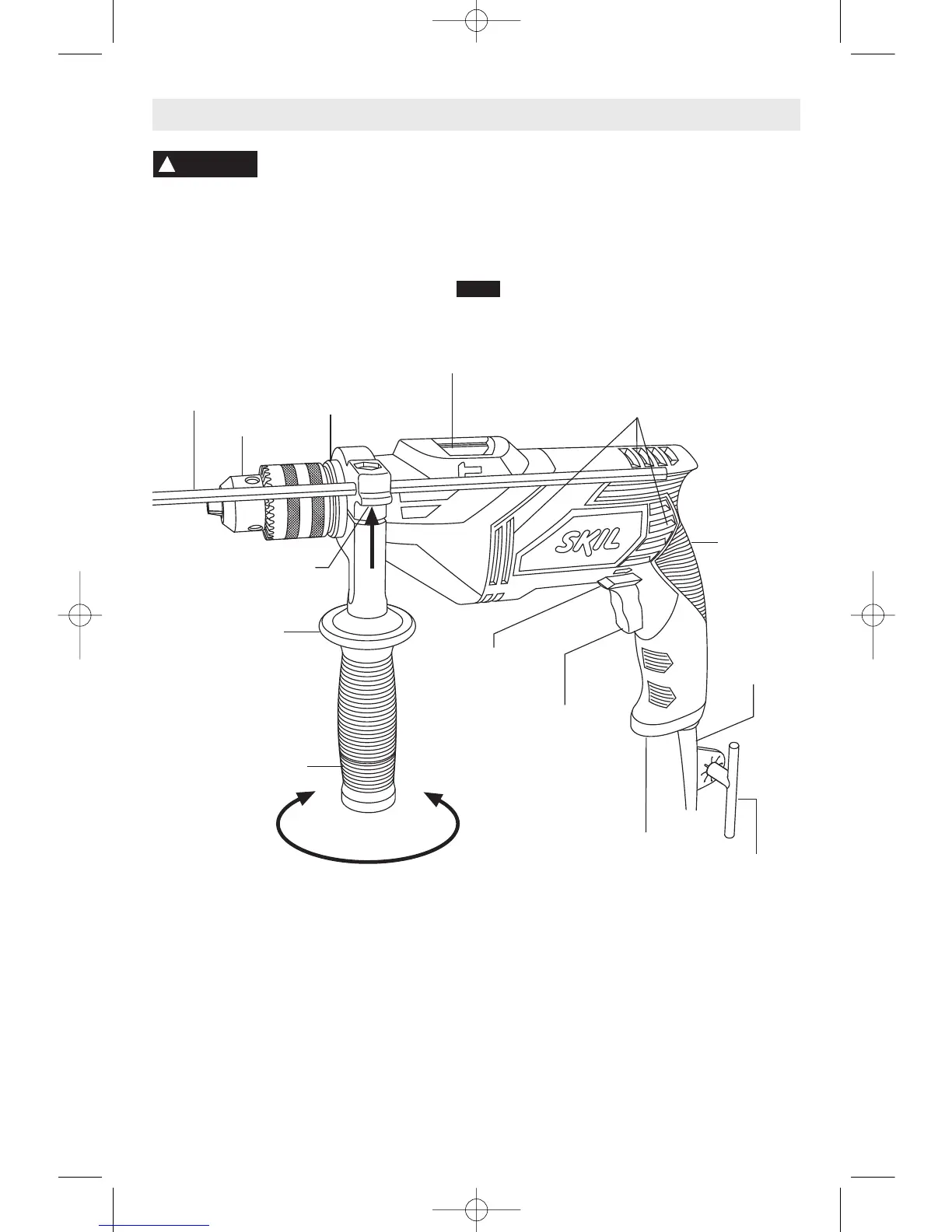

Hammer Drill
DRILL/HAMMER DRILL
SELECTION SWITCH
FRONT HOUSING
COLLAR
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
REVERSING
LEVER
AUXILIARY
HANDLE
CHUCK
RUBBERIZED
GRIP
VARIABLE SPEED
CONTROLLED
TRIGGER SWITCH
CORD
PROTECTOR
CHUCK KEY
& STORAGE
AREA
Tighten
Loosen
FIG. 1
HAND GRIP
DEPTH
GAUGE
THUMB
GRIP
SM 2610958551 09-08 9/18/08 8:33 AM Page 6
