Skil 96VXT - Functional Description and Specifications

-7-
Functional Description and Specifications
Disconnect battery pack or corded back-up from tool or place the
switch in the locked or off position before making any assembly,
adjustments or changing accessories. Such preventive safety measures reduce the
risk of starting the tool accidentally.
!
WARNING
Model number 96VXT 120VXT 144VXT
Voltage rating 9.6 V 12 V 14.4 V
No load speed n
0
0-850/min n
0
0-850/min n
0
0-700/min
Charge time 3 hr 3 hr 3 hr
Chuck size 3/8" 3/8" 3/8"
Power Station/Charger Unit
Voltage rating 120 V 60 Hz
Amperage rating 2 A
VENTILATION
OPENINGS
CHUCK
COLLAR
BATTERY
PACK
CHUCK
SLEEVE
ADJUSTABLE
CLUTCH
FORWARD/REVERSING
LEVER & TRIGGER
LOCK
VARIABLE
SPEED
CONTROLLED
TRIGGER
SWITCH
KEYLESS
CHUCK
CORDED
BACK-UP
POWER
STATION/
CHARGER
UNIT
POWER
PLUG
POWER
LINE
RESET
BUTTON
GREEN
CHARGING
LIGHT
POWER LIGHT:
GREEN READY
RED OVERLOAD

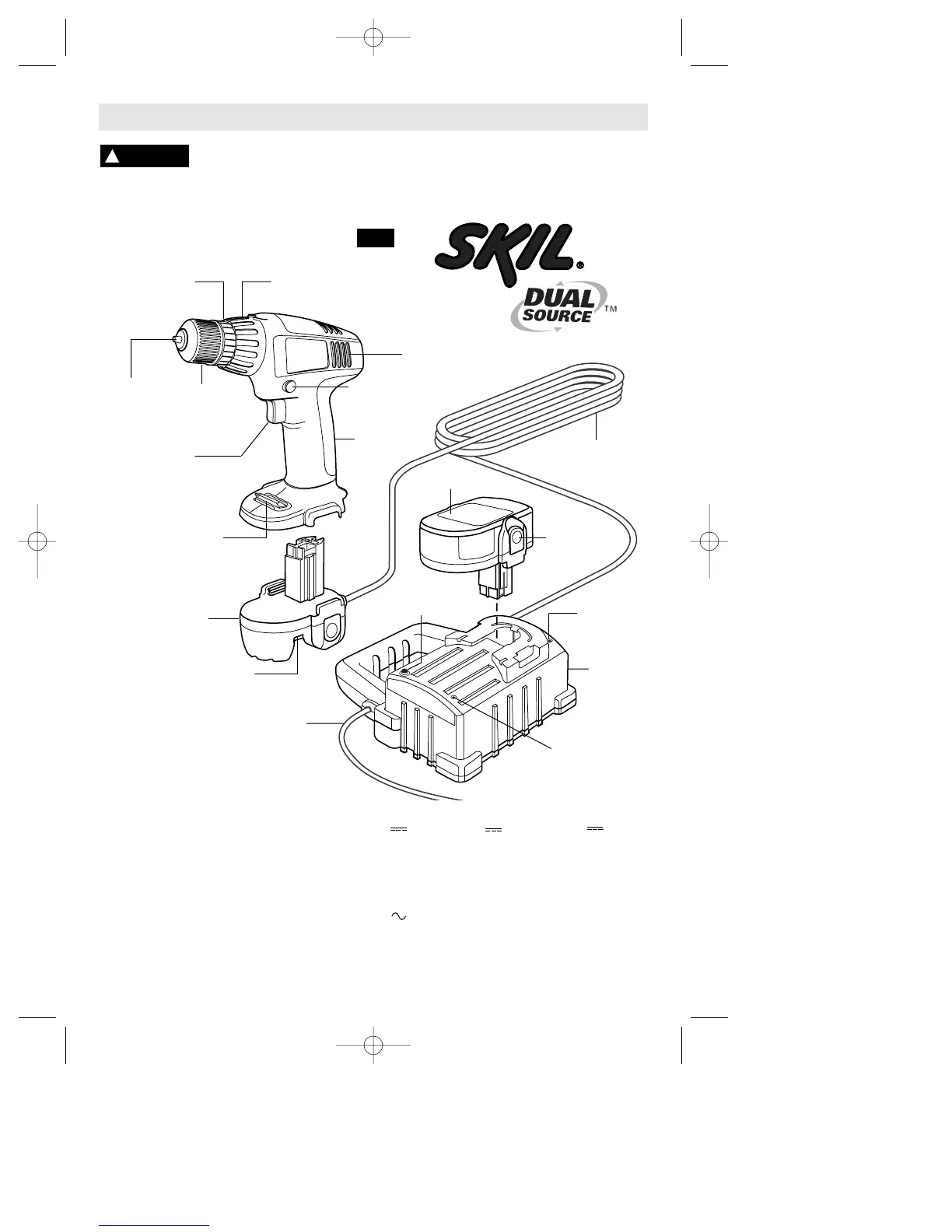

FIG. 1
RUBBERIZED
GRIP
BIT & STORAGE
AREA
Cordless
Drills/Drivers
with Corded
Back-up
BATTERY
RELEASE
TABS
ATTENTION: 3/8 inch drills are not recommended for running lag bolts
BIT & STORAGE
AREA
