If cutter teeth have hit hard objects, such as nails and stones, or have been abraded by mud
or sand on the wood, have the chain sharpened by a qualied service technician.
NOTICE:
Inspect the drive sprocket for wear or damage when replacing the chain. If signs
of wear or damage are present in the areas indicated, have the drive sprocket replaced by
qualied service technician.
How to Sharpen the Cutters
Be careful to le all cutters (Fig. 30) to the
specied angles and to the same length, as
fast cutting can be obtained only when all
cutters are uniform.
1. Remove the battery pack. Wear gloves for
protection.
2. Properly tension the chain prior to
sharpening. Refer to the section:
“
Adjusting the Chain Tension
” earlier in
this manual.
3. Use a 5/32” (4.0 mm) diameter round le
and holder (available separately). Do all
of your ling at the middle position of the
guide bar.
4. Keep the le level with the top plate of the
tooth. Do not let the le dip or rock.
5. Keep a correct sharpening angle of 30° between the le and the saw chain; see
Fig. 31 & 32. Always use a le holder (available separately) when sharpening saw chains
by hand. File holders have markings for the sharpening angle.

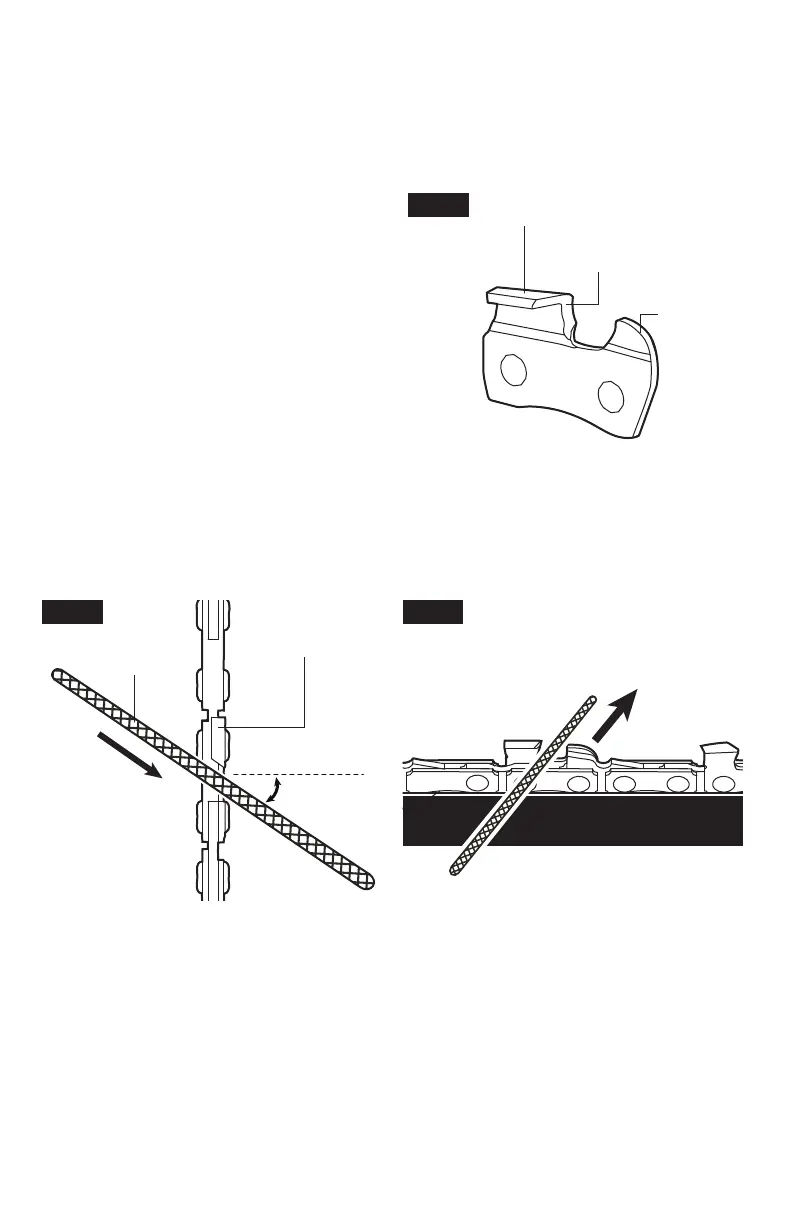

Fig. 31
5/32" (4.0 mm)
Round File
Filing Direction
Cutter tooth
Sharpening
Angle: 30°
Fig. 32
6. Using light but rm pressure, stroke towards the front corner of the tooth. Lift the le away
from the steel on each return stroke.
Fig. 30
Top Plate
Side Plate
Depth
Gauge
To Next Page
