ASSEMBLY

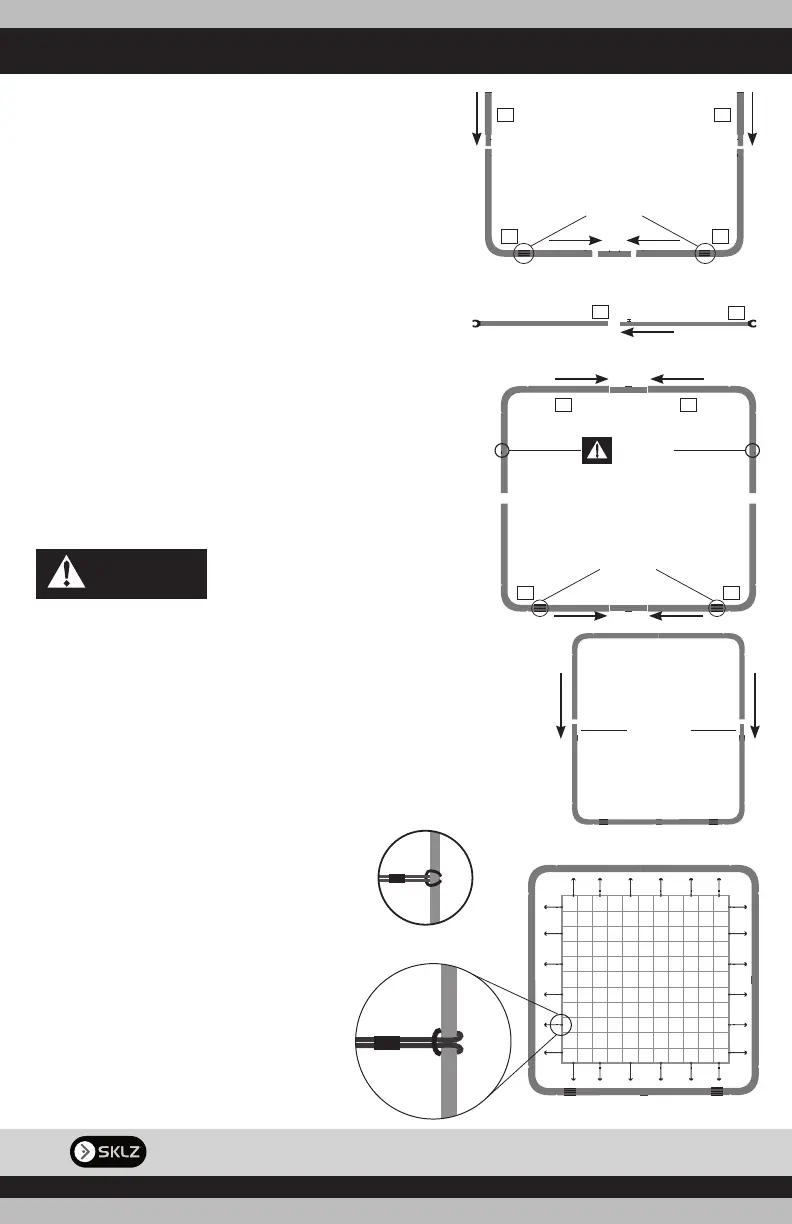

STEP 1–FRAME STAND ASSEMBLY
Join the 2 Frame Stand L-Bars (5) together with the
double clip connector making sure both grips are on the
same side. Join each single clip connector (6) with open
ends of L-Bars. Set aside.
STEP 2–ADJUSTMENT ARM ASSEMBLY
Fully loosen the knob Adjustment Arm (7) and slide all the
way down over Adjustment Arm (8). Tighten the knob to
secure. Set aside.
STEP 3–FRAME ASSEMBLY
Connect Top Left Frame L-Bar (1) and Top Right Frame L-Bar
(2) with a Frame Connector piece making sure that the bolt
holes are on each side. The frame connector piece will slide
into the L-bars. This is the top of the Crazy Catch frame.
Bolt holes must be opposite of
each other when you put the
frame together. If they are not,
you will be unable to attach the
frame stand.
Connect Bottom Left Frame L-Bar (3) and Bottom Right Frame L-Bar (4)
with a frame connector piece, making sure the grips are both on the
same side. This is the bottom of the Crazy Catch frame. Slide the last
two frame connector pieces into the ends of part #3 and part #4.
Slide the top of the frame onto the bottom of the frame.
NOTE: For easy assembly, make sure to slide the top frame over
each connector at the same
time. Make sure all connections
are completely secured.
STEP 4–NET ATTACHMENT
Lay the completed frame on a flat surface
and lay the net in the middle of the frame
with the bungee loops up as pictured.
1.
2.
Connector
Bolt Holes
3. 4.
Connector
Grips
Connectors
Top of the
Frame
Bottom of the
Frame
5.5.
6.6.
Grips
7.
8.
Top
2
3
4
5
6
78
WRONG
RIGHT
