1.2.2 Repairing corrugated washer fluid level
pipes - vehicles as of 01.2011
Note
♦
The following repair procedure of corrugated washer fluid
level pipes can also be applied to vehicles manufactured up
to 01.2011.
♦
The repair point must not be exposed to tension or flexion.
♦
If the damaged point is longer than 15 mm, insert new corru‐
gated pipe and then perform the described work sequence
twice.
♦
Spare parts can be found in the ⇒ Electronic catalogue of
the original parts “ETKA”.
Special tools and workshop equipment required
♦ Hot-air blower
Work procedure
– Cut the damaged point straight out of the corrugated pipe to
be repaired so that the distance between the pipe ends is
maximum 15 mm.

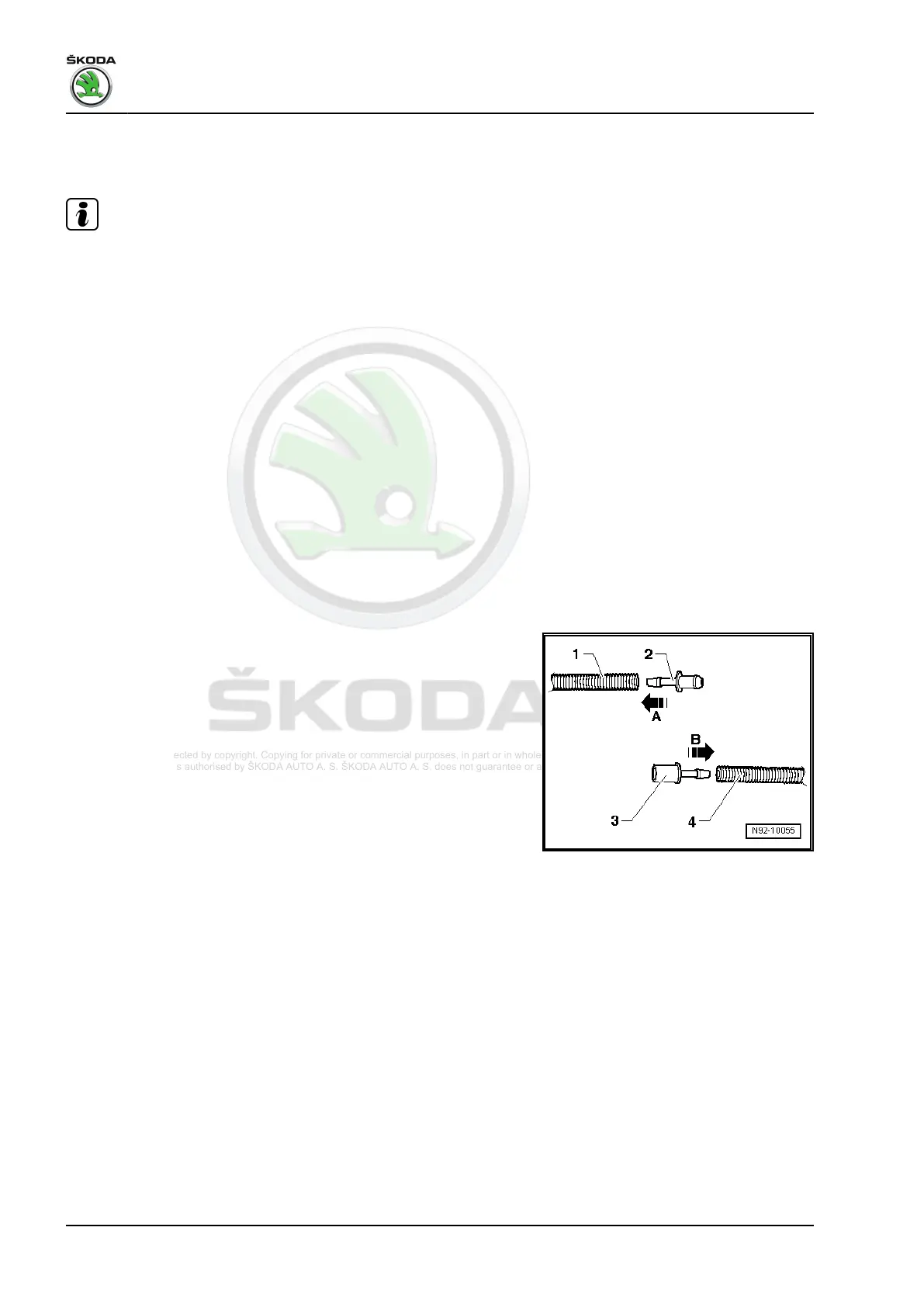

– Select the suitable connecting pieces -2-, -3- as well as the
suitable shrink hose, see ⇒ Electronic Catalogue of Original
Parts “ETKA”.
– Warm up the end of the corrugated pipe -1- slightly using a
hot-air blower.
– Press the connecting piece -2- into the corrugated pipe
-arrow A-.
– Warm up the end of the corrugated pipe -4- slightly using a
hot-air blower.
– Press the connecting piece -3- into the corrugated pipe
-arrow B-.
– Lengthen off the shrink hose so that the corrugated pipe on
both sides can be covered by the shrink hose at least 20 mm
-dimension X-.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
28 Rep. gr.92 - Windscreen wash/wipe system
