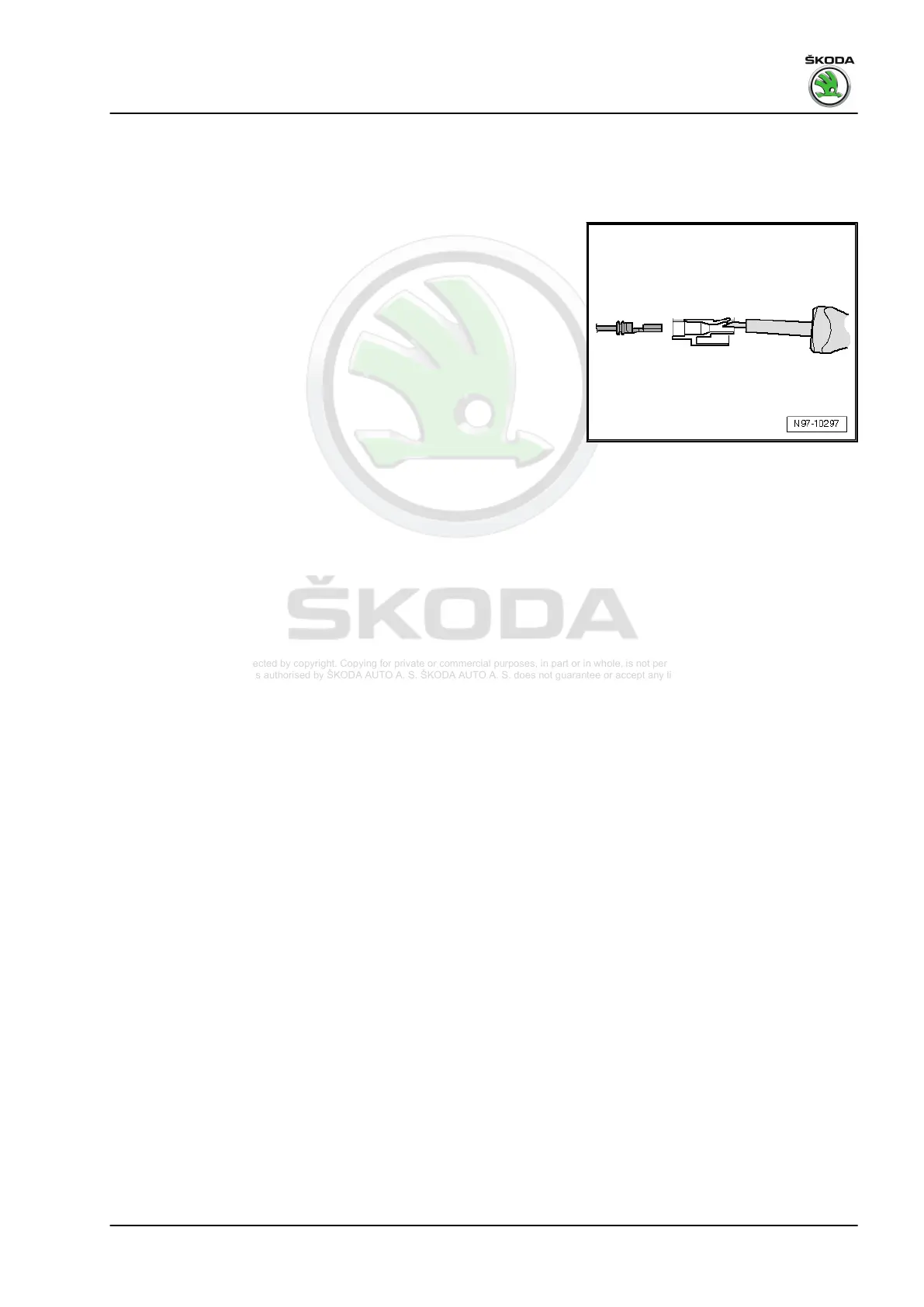

– Insert the release tool under the socket housing's detent.

– Press through the release tool up to the stop with a slight lift

-arrow-.

The contact is ejected from the socket housing.

Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...

Electrical System - general notes - Edition 12.2021

4. Unlocking and disassembling socket housings 95

Table of Contents3
Starter, Current Supply, CCS5
- Battery5
- Basics about Batteries5
- Battery Types5
- Warning Instructions and Safety Precautions When Working on the Battery8
- Working on the Airbag System9
- Screwed Connections of Battery Poles10
- Checking Battery11
- Check Battery with a Magic Eye11
- Checking Fleece Battery (AGM)14
- Visual Inspection of the Battery14
- Notes on Battery Replacement and Battery Degassing15
- Battery Tester with Printer VAS 616116
- Battery Tester with Printer VAS 5097 a21
- Check Current Drain When Charging22
- Load Voltage Measurement - Demonstration Vehicles and Stock Vehicles23
- Charge Battery24
- Charging Battery24
- Severely Discharged Batteries26
- Cruise Control System (CCS)28
- General Description28
- Activate/Deactivate Cruise Control System28
Windscreen Wash/Wipe System29
- Repairing Washer Fluid Level Pipes29
- Repair Solution for Plain Ended Pipe29
- Repair Solution for Corrugated Pipe30
- Washer Fluid Lines34
- Connections of Washer Fluid Level Pipes34
- Joint-Free Wiper Blades36
- Distinguishing Features of Joint-Free Wiper Blades36
Lights, Bulbs, Switches - Exterior37
- Gas Discharge Lamps37
- Use and Safety Instructions for Gas Discharge Lamps37
- LED Headlights39
- Application and Safety Instructions for LED Headlights39
Lights, Bulbs, Switches - Interior40
- Power Sockets, Cigarette Lighter40
- Removing and Installing the 12 V Power Socket/Cigarette Lighter in the Centre Console40
- Protected by Copyright. Copying for Private or Commercial Purposes, in Part or in Whole, Is Not Permitted40
Wiring43
- Vehicle Diagnosis, Testing and Information Systems43
- Safety Instructions43
- Connect Vehicle Diagnosis, Measurement and Information System VAS 505X43
- Wiring Harness Repair45
- General Instructions for the Repair on the Vehicle Electrics45
- General Instructions for Wiring Harness and Plug Repair46
- Tool Descriptions47
- Repair of Airbag and Belt Tensioner Cables52
- Repair of CAN Bus Lines54
Crimp New Contacts55
Repair of 0.13 Mm2/ 0.35 Mm2/ 0.5 Mm2 Cable58
Repair a 10 Mm2- or 16 Mm2 Cable with an Individual Joint Butt Splice Connector63
Line Break with Single Repair Point70
Line Break with Two Repair Points73
Repairing Aerial Cables76
Repairing Socket Housings and Connectors87
Notes on Repairing Socket Housings and Connectors87
Repairing Contacts in Socket Housings87
Assembly of Single Cable Seals89
Unlocking and Disassembling Socket Housings92
Notes on Unlocking and Disassembling Socket Housings92
Secondary Lock92
Primary Lock93
Repairing Optical Fibres100
General Points100
Preparing Optical Fibres100
Removing and Installing Optical Fibre in the Housing106
Contact Surface Cleaning Set VAS 6410108
Use Contact Surface Cleaning Set VAS 6410108
Repairing the Cable Eyes108
Repairing Screwed Connections110
Cleaning the Battery Pole Terminals and Battery Poles112
Preserving113
Replace the Lambda Probe115
Replace the LSF Lambda Probe (4-Pole)115
Replace the LSU Lambda Probe (6-Pole)116
Protective Pipe Variants of the Unit Lambda Probes117
