SKOPE Surface and Recessed Wall Fan Heater
Installation and Operating Instructions
Recess Mounted Models: 981E, 723E

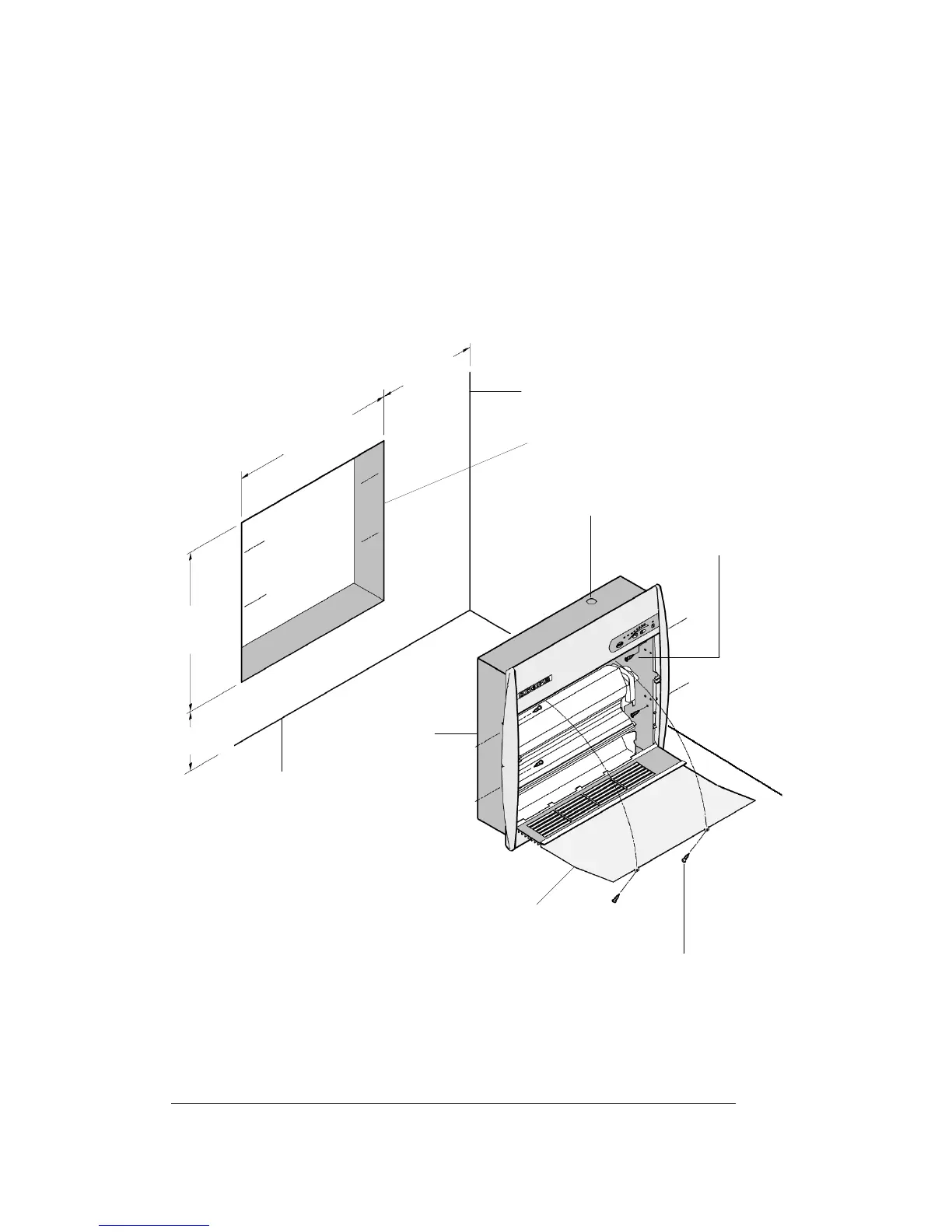

Installation Diagram
Front panel screws (2)
981E = 322mm
723E = 403mm
Fixing screws (4)
300
min.
300 min.
Cable entry
Floor level
Adjacent wall
Heater body
Hole in wall
Front panel hinged down
395
