Skyjack 4632 - Page 103

SECTION 6, Page 14 SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.
10169AA

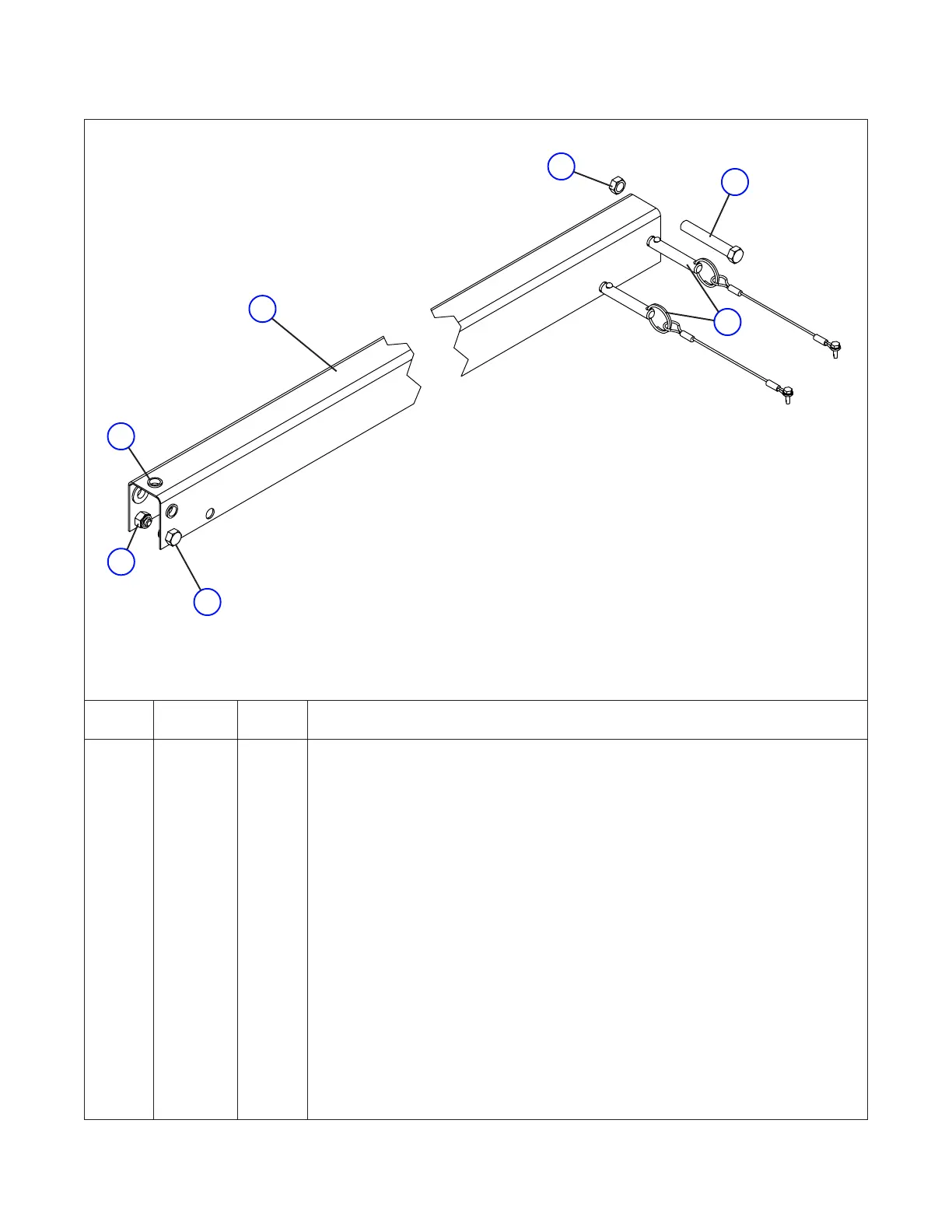

Figure 6.1-6. Slide Rail Assemblies
6
2
1
4
3
5
3
A 125481 2 ASSEMBLY, Manual Extension Hinged Railing Handrail, 3ft , (Model 32XX)
B 125666 2 ASSEMBLY, Manual Extension Rigid Railing Handrail, 3ft , (Model 32XX)
C 130436 2 ASSEMBLY, Manual Extension Rigid Railing Handrail, 3ft , (Model 4620)
D 130348 2 ASSEMBLY, Manual Extension Hinged Railing Handrail, 3ft , (Model 4626/4632)
E 125667 2 ASSEMBLY, Powered extension Rigid Railing Handrail, 6ft, (Model 32XX/4620)
F 128458 2 ASSEMBLY, Powered extension Hinged Railing Handrail, 6ft, (Model 3220/4626)
1 125480 1 • HANDRAIL, Extension, A, B
130349 1 • HANDRAIL, Extension 3ft, C, D
125561 1 • HANDRAIL, Extension 6 ft, E, F
2 103550 3 • PLUG, Handrail slide plug
3 103984 AR • NUT, Lock (hex) 5/16”-18 Gr. B
4 103845 2 • BOLT, Hex head 5/16”-18 x 0.50” Gr. 5
5 (Ref.) AR • PIN ASSEMBLY, Quick release large or small loop
(For components, refer to Figure 6.1-7)
6 103865 1 • BOLT, Hex head 5/16”-18 x 2” Gr. 5, B, C, E
