SECTION 6, Page 15SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.
10168AA

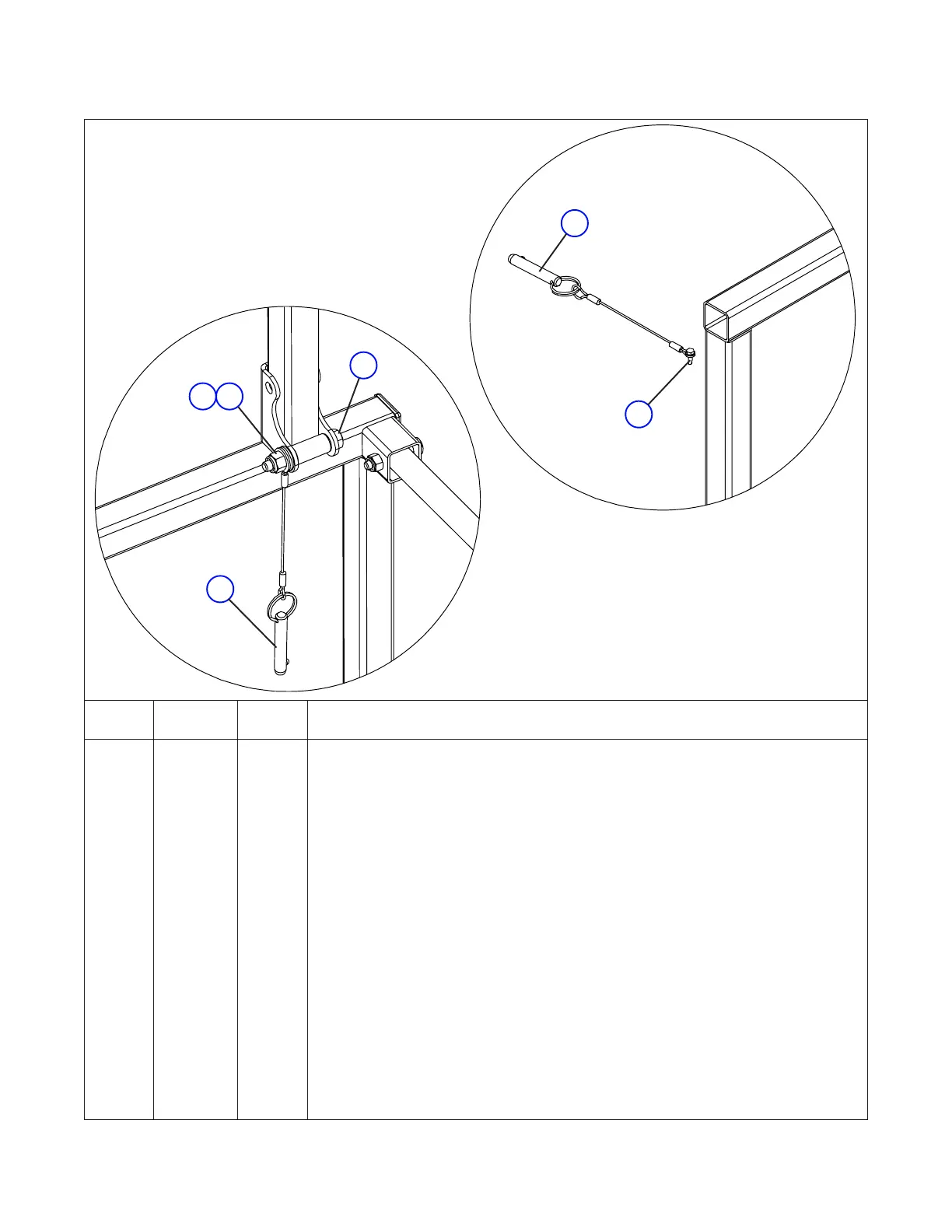

Figure 6.1-7. Quick Release Pins
6
5
2
1
4 3
1 124548 1 PIN ASSEMBLY, Quick release large loop
100509 1 • PIN, Quick release 3/8” dia x 2”
105807 1 • LANYARD, 6" Plastic coated
2 103873 1 BOLT, Hex head 3/8”-16 x 2.50” Gr. 5
3 103472 2 WASHER, Flat 3/8” SAE Bolt,
4 104606 1 NUT, Lock (hex) 3/8”-16 grade B,
5 124547 2 PIN ASSEMBLY, Quick release small loop
100509 1 • PIN, Quick release 3/8” dia x 2”
105807 1 • LANYARD, 6" Plastic coated
6 112327 1 BOLT, Self tapping #8-18 x 0.5”
