Skyjack 4632 - Page 116

SECTION 6, Page 27SJIII Series - The Conventionals 129919
1 (Ref.) 1 HOSE ASSY., Air to platform
107882 1 • FITTING, Female disconnect
107883 1 • FITTING, Male disconnect
107884 1 • HOSE, Air 1/2” x 324" lg., (Model 3220/4620)
107884 1 • HOSE, Air 1/2” x 396" lg., (Model 3226/4626)
107884 1 • HOSE, Air 1/2” x 666" lg., (Model 4632/4632)
109050 2 • FITTING, Hose barb
107886 2 • CLAMP, Hose
102891 AR STRAP, Tie 7" lg.
102893 AR STRAP, Tie 10-1/2" lg.
L 138212 2 LABEL, Connect air here
Index
No.
Skyjack
Part No.
DescriptionQty.
10199AA

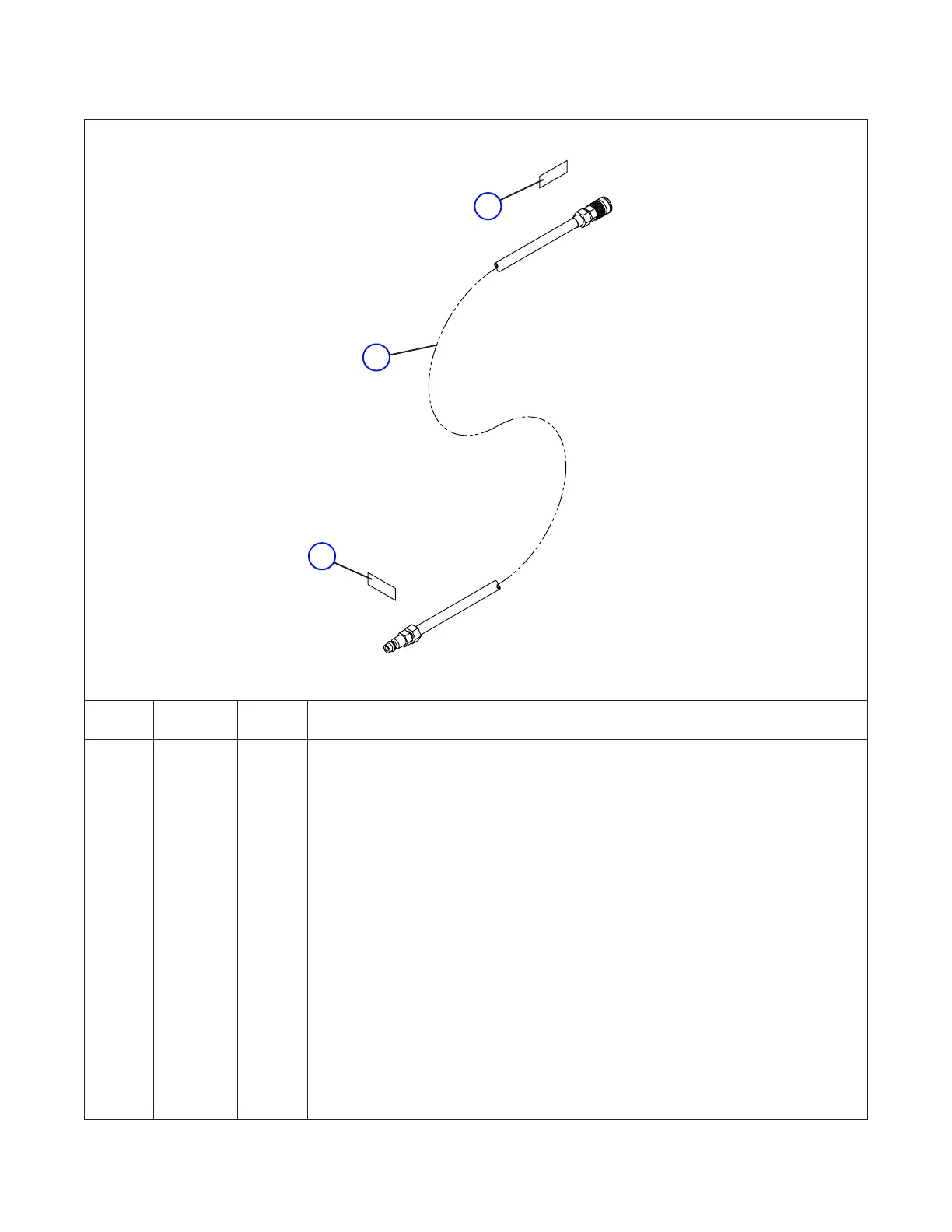

Figure 6.1-16. Platform Air Supply Hose
