Skyjack 4632 - Page 115

SECTION 6, Page 26 SJIII Series - The Conventionals 129919
5
2
1
4
3
10160AA

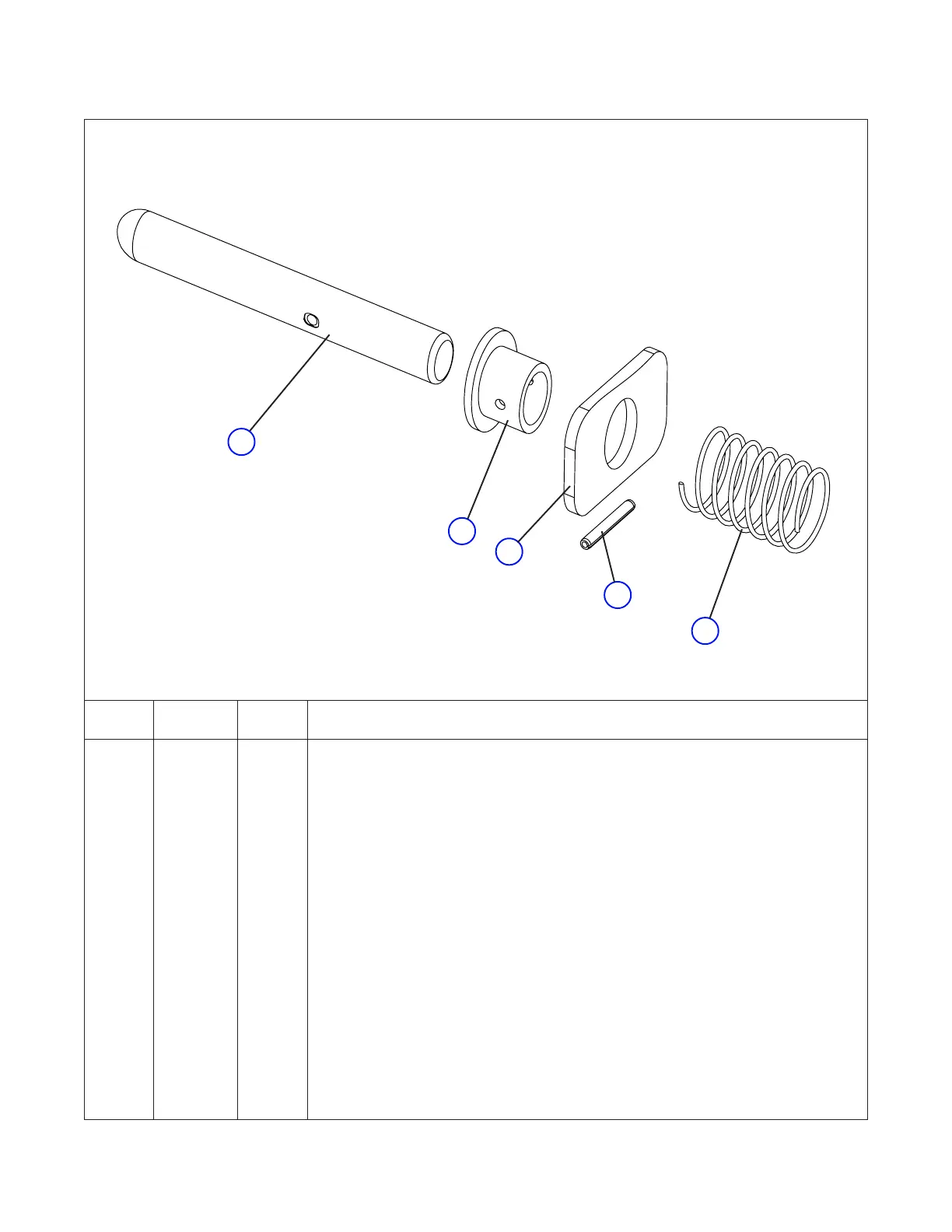

Figure 6.1-15. Gate Latch Assembly
Index
No.
Skyjack
Part No.
DescriptionQty.
A 110824 - ASSEMBLY, Latch pin spring
1 109377 1 • PIN, Latch
2 105312 1 • GUIDE, Nylon spring
3 105307 1 • PLATE, Gate latch release
4 105310 1 • PIN, Roll
5 103107 1 • SPRING, Compression
