SECTION 6, Page 56
SJIII Series - The Conventionals 129919
3
6
7
12
11
1
8
1 106689 1 BLOCK ASSEMBLY, Holding Valve
111314 1 • BLOCK, Manifold
108052 2 • PLUG, Expander
2 103403 1 SEAL, O-Ring
3 104437 1 PLUG, Manifold
4 104493 1 COIL, 24 Volt
5 107269 1 VALVE, N.C. Holding
6 105281 1 ORIFICE, One way
7 (Ref.) 1 ASSEMBLY, Lift cylinder
(For components, Refer to Figure 6.2-8)
8 103931 4 BOLT, Socket (5/16”-18 x 2” Grade 5)
9 103996 4 WASHER, Flat 5/16”
10 104637 4 WASHER, Lock-High Collar 5/16”
11 114578 1 FITTING, Elbow
12 104657 1 HOSE ASSEMBLY, Manifold to Lift Cylinder

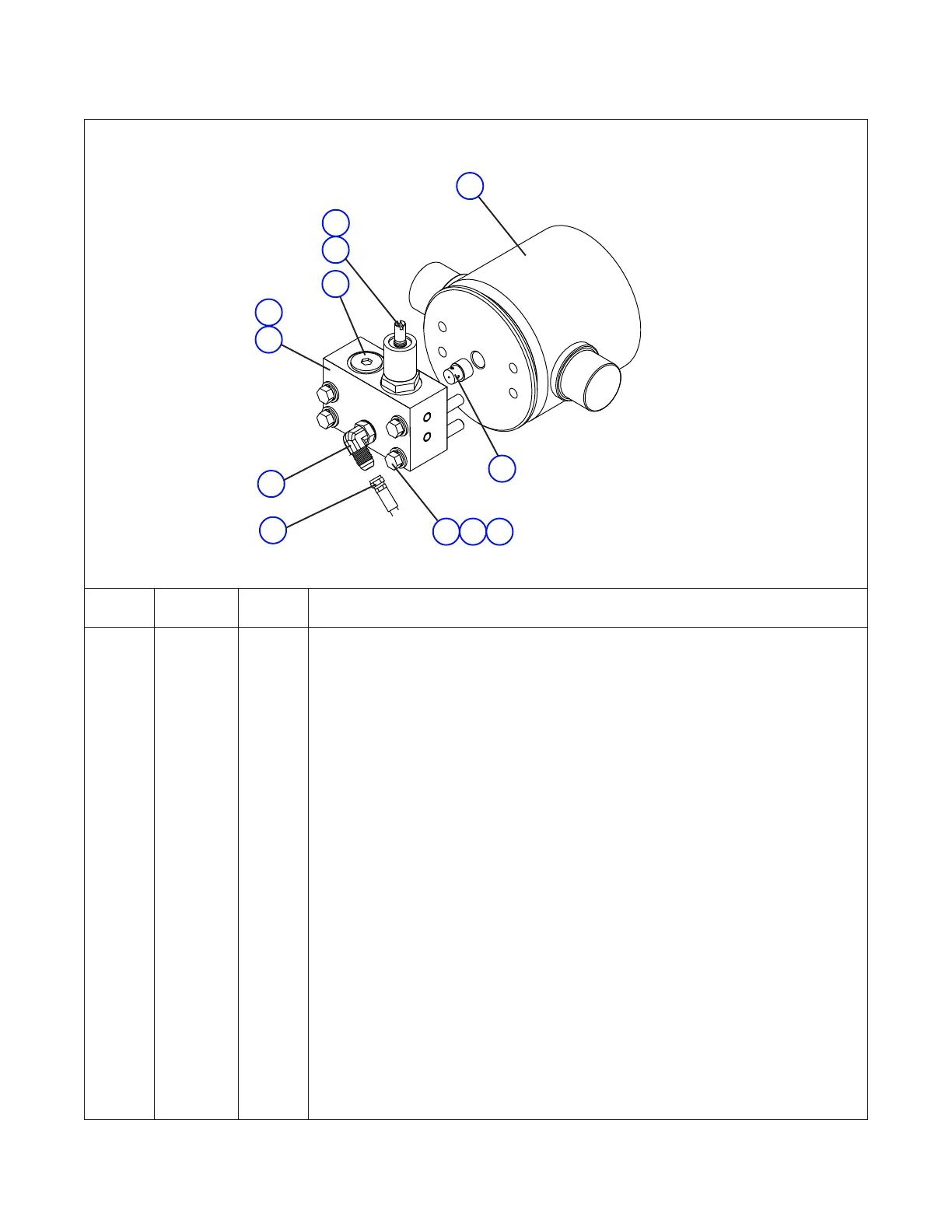

Figure 6.2-9. Holding Valve Assembly - Models 3220 & 4620
Index
No.
Skyjack
Part No.
DescriptionQty.
4
2
5
9 10
10225AC
AH
