Skyjack 4632 - Page 143

SECTION 6, Page 57
SJIII Series - The Conventionals 129919

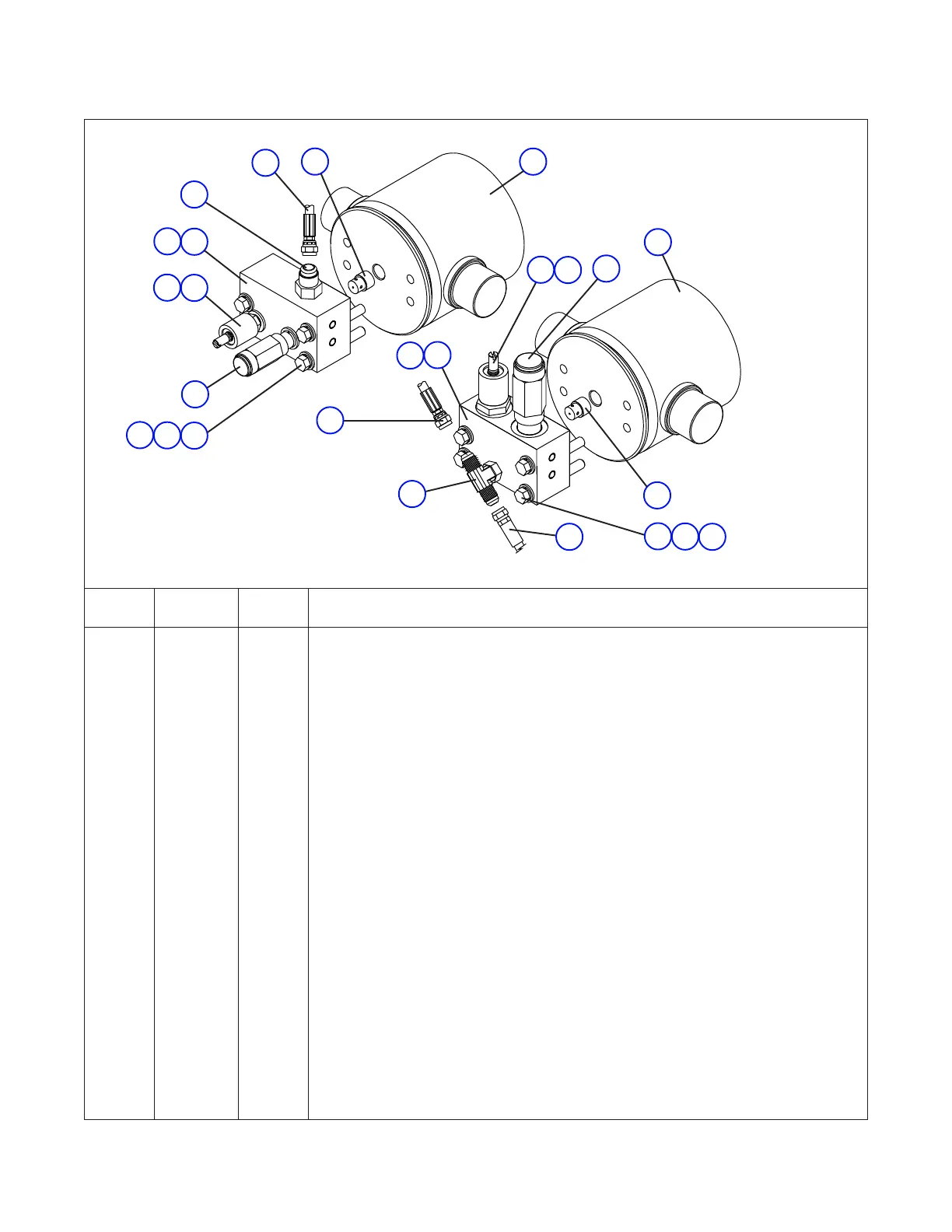

Figure 6.2-10. Holding Valve Assembly - Models 3226, 4626 & 4632
6
7
6
1 108778 1 BLOCK, Upper holding valve
111320 1 • BLOCK, Manifold
108052 3 • PLUG, Expander
2 103403 2 SEAL, O-Ring
3 106557 2 VALVE, Relief
4 107269 2 VALVE, N.C. Holding
5 104493 2 COIL, 24 Volt
6 105281 2 ORIFICE, One way
7 (Ref.) 1 ASSEMBLY, Lift cylinder (Upper Cylinder)
(For components, refer to Figure 6.2-8)
8 (Ref.) 1 ASSEMBLY, Lift cylinder (Lower Cylinder)
(For components, refer to Figure 6.2-8)
9 106688 1 BLOCK, Lower holding valve
111316 1 • BLOCK, Manifold
108052 2 • PLUG, Expander
10 108429 4 BOLT, Hex head 5/16” - 18 x 2.50”
11 103996 8 WASHER, Flat 5/16” S.A.E.
12 104637 8 WASHER, Lock (5/16” high collar 0.09)
13 103931 4 BOLT, Socket (5/16” - 18 x 2” Grade 5)
14 103069 1 FITTING, Straight (upper lift Cylinder)
15 114579 1 FITTING, Tee (lower lift cylinder)
16 102635 1 HOSE ASSEMBLY, Upper Lift cylinder to lower lift cylinder
17 104657 1 HOSE ASSEMBLY, Lower lift cylinder to main manifold
Index
No.
Skyjack
Part No.
DescriptionQty.
8
3
10226AC
16
17
15
1
2
14
5
4
3
5
4
16
9
2
11
12
13
10
11
12
AH
