SECTION 6, Page 72
SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.
11186AA

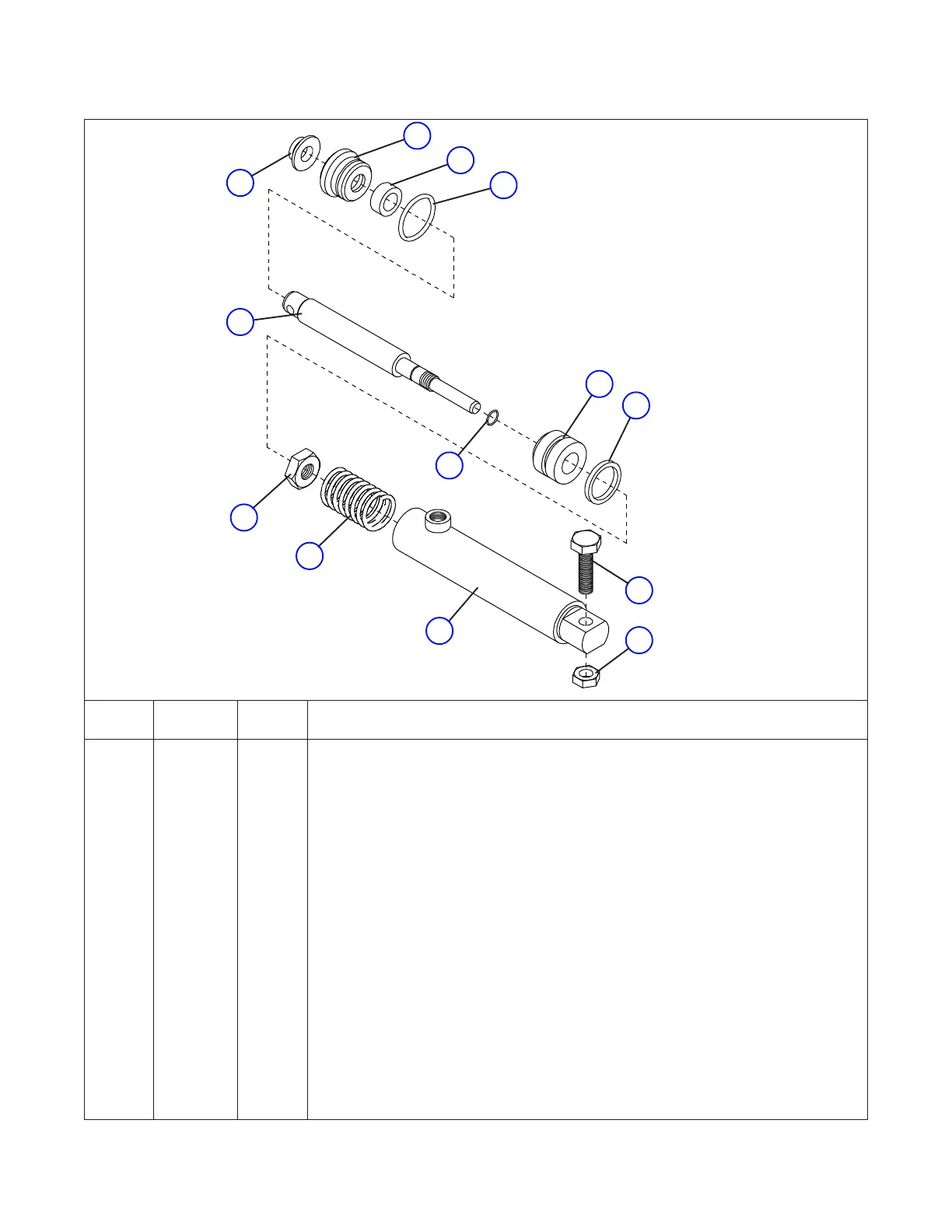

Figure 6.3-7. Brake Cylinder Assembly
11
6
Machines Equipped with Pin Brake
(Refer to Figure 6.3-3)
A 120220 - CYLINDER ASSEMBLY, Brake
1 120153 1 • BARREL, Brake cylinder
2 102844 1 • SPRING, Brake return
3 103830 1 • NUT, Lock 5/8”-11 Gr. C
4 121178 1 • PISTON
*5 111295 1 • SEAL, Piston
*6 110976 1 • O-RING, Rod
7 120154 1 • ROD, Brake
*8 120436 1 • O-RING, Gland
*9 103826 1 • SEAL, Rod
10 120148 1 • GLAND
*11 103827 1 • WIPER, Rod
12 103897 1 BOLT, Hex head 5/8” - 11 x 2”
13 103982 1 NUT, Hex head 5/8” - 11
* 105816 AR KIT, Seal repair
* Part of Seal Repair Kit
7
12
13
1
10
9
4
5
2
3
8
AH
NOTE: PIN BRAKE use on 32XX
and 46XX Machines (Refer to
Serial Number Breakdown
Reference Charts - Figure 6.3-3)
