SECTION 6, Page 71
SJIII Series - The Conventionals 129919

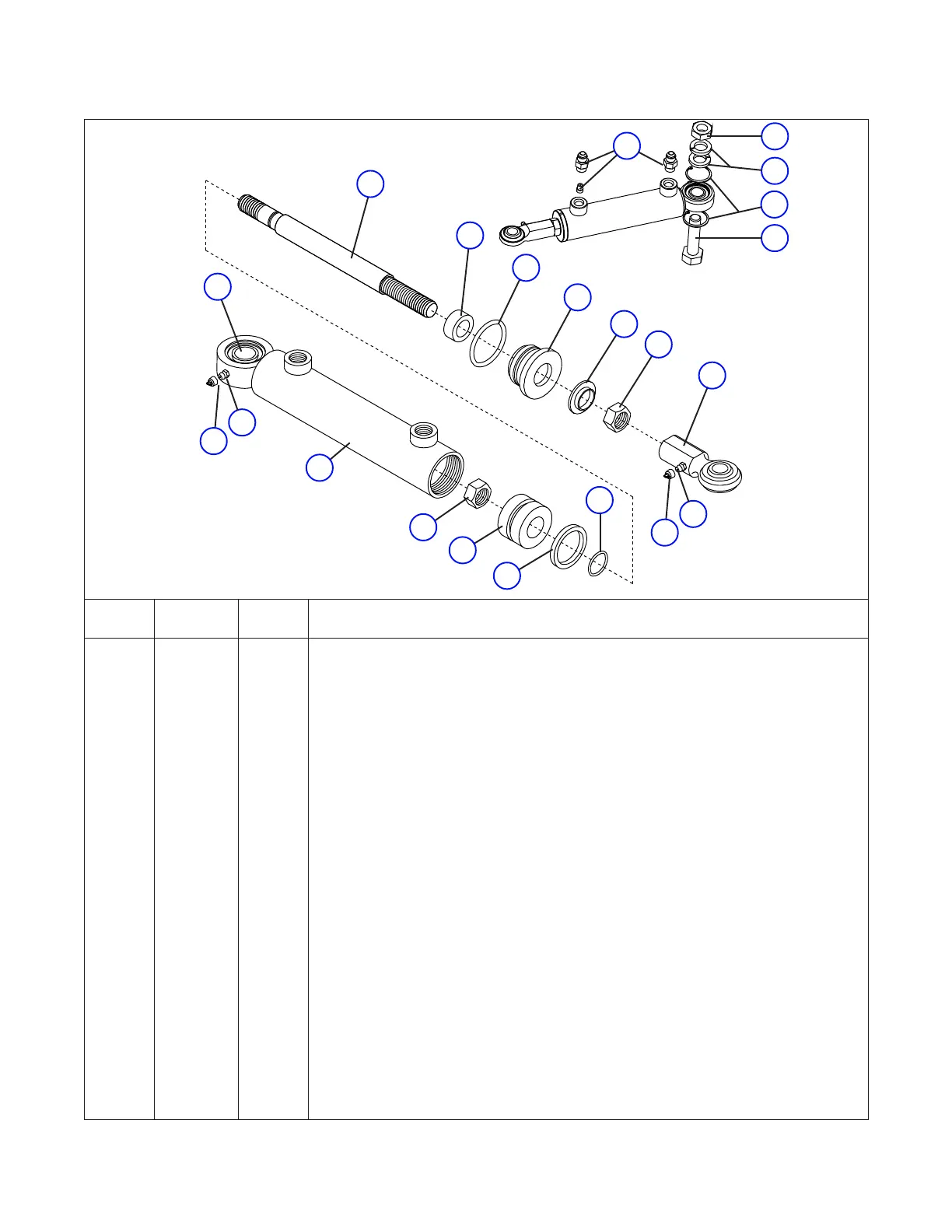

Figure 6.3-6. Steer Cylinder Assembly
Index
No.
Skyjack
Part No.
DescriptionQty.
10209AD
15
6
7
8
9
10
11
12
5
4
3
2
1
14
13
17
18
19
A 120236 - CYLINDER ASSEMBLY, Steer
1 120235 1 • BARREL, Steer cylinder
2 103830 1 • NUT, Lock 5/8”-11 Gr. C
3 118844 1 • PISTON
*4 103825 1 • SEAL, Piston
*5 110976 1 • O-RING, Rod
6 117047 1 • ROD, Piston
*7 103826 1 • SEAL, Rod
*8 120436 1 • O-RING, Gland
9 120148 1 • GLAND, Cylinder
*10 103827 1 • WIPER, Rod
11 100846 1 • NUT, Jam 5/8”-18
12 100847 1 • END, Cylinder rod
13 102025 1 • BEARING, Spherical
14 104114 2 • RING, Retaining
15 103513 1 • FITTING, Grease
16 132565 2 • CAP, Grease fitting
17 100252 1 NUT, Hex head Jam 3/4” - 10
18 104002 2 WASHER, Lock 3/4”
19 119310 1 BOLT, Hex head 3/4” - 10 X 2 3/4”
20 (Ref.) - FITTINGS, Hydraulic
(For components, refer to Figure 6.3-9 or Figure 6.3-10)
* 105816 AR KIT, Seal repair
* Part of Seal Repair Kit
20
16
15
16
AI
