SECTION 6, Page 70
SJIII Series - The Conventionals 129919

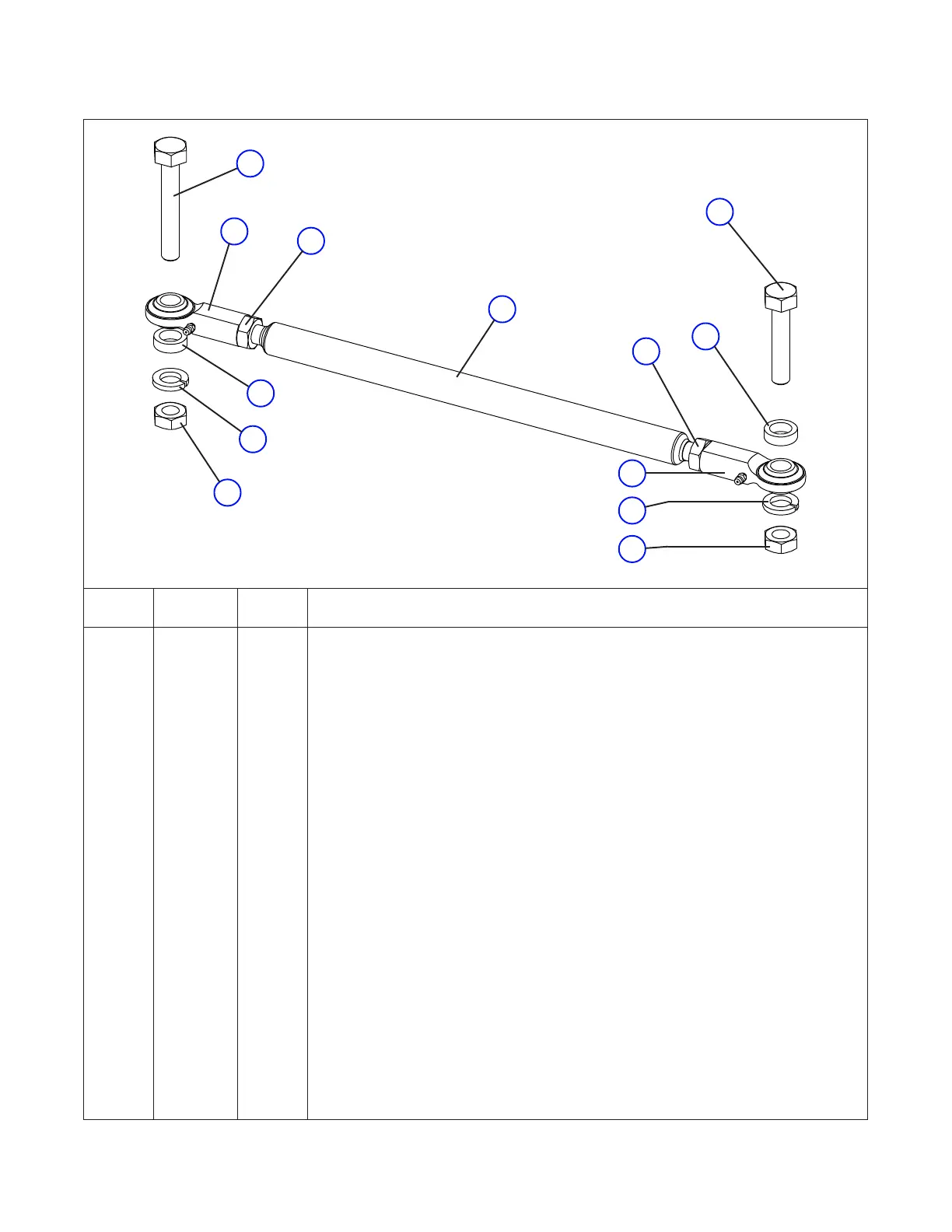

Figure 6.3-5. Tie Rod Assembly
7
3
8
9
8
9
7
10
1
2
5
4
Index
No.
Skyjack
Part No.
DescriptionQty.
10212AA
6
A 125728 1 TIE ROD ASSEMBLY (Model 32XX)
B 130183 1 TIE ROD ASSEMBLY (Model 46XX)
- 125472 1 • ROD, Tie, A
130182 1 • ROD, Tie, B
1 115281 1 • • END, Female (LH Thread)
2 100855 1 • • NUT, Hex head Jam 5/8” - 18 (LH)
3 125469 1 • • BAR, Tie rod, A
130181 1 • • BAR, Tie rod, B
4 100846 1 • • NUT, Hex head Jam 5/8” - 18 (RH)
5 100847 1 • • END, Female (RH Thread)
6 125747 1 • BOLT, Hex head 5/8” - 11 x 2 3/4”
7 100856 2 • SPACER
8 103998 2 • WASHER, Lock 5/8”
9 103982 2 • NUT, Hex head 5/8” - 11
10 107797 1 • BOLT, Hex head 5/8” - 11 x 3 1/2”
