Skyjack 4632 - Page 152

SECTION 6, Page 68
SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.
10210AA

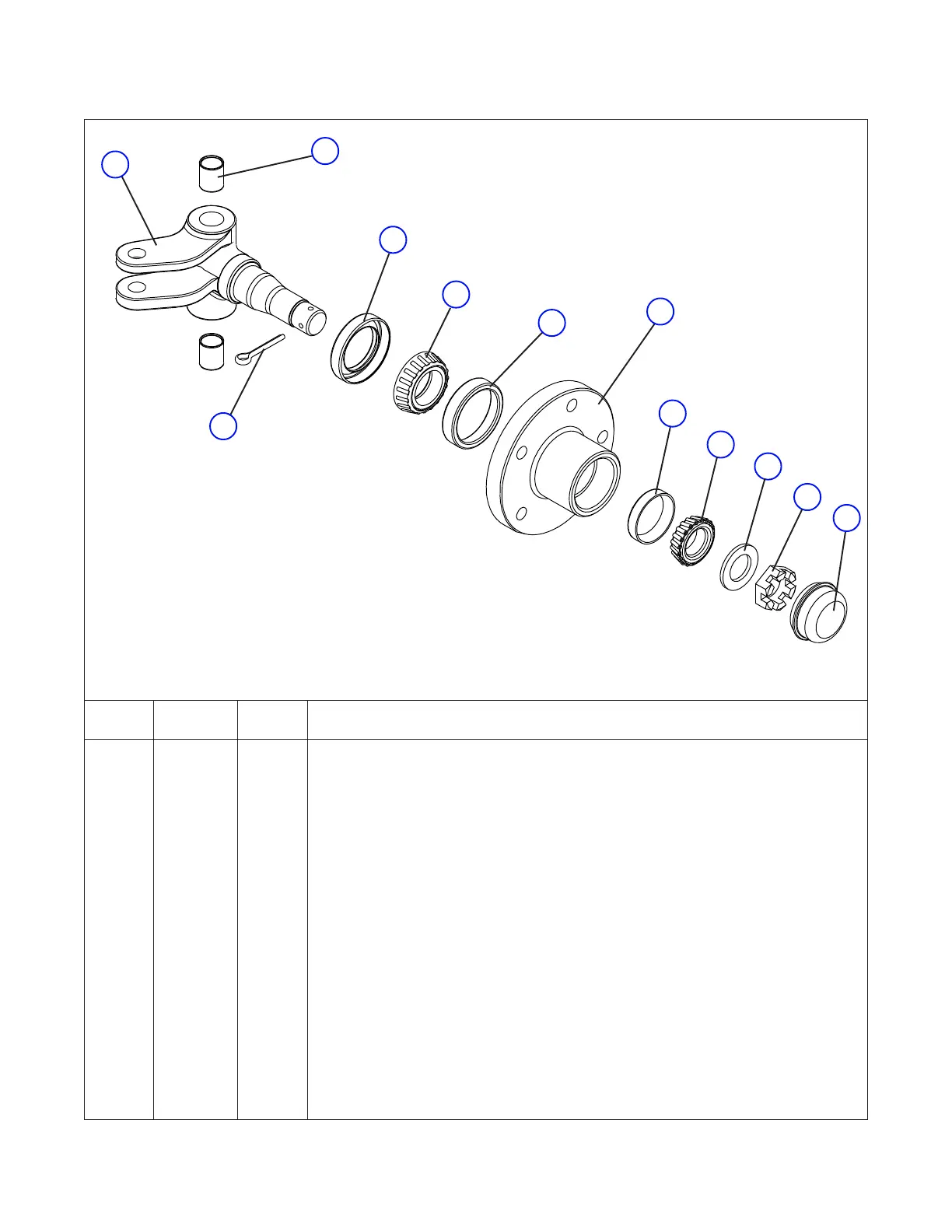

Figure 6.3-4. Front Hub & Spindle Assembly
A 125792 - FRONT HUB & SPINDLE ASSEMBLY
1 125806 1 • Spindle, Casting
2 100050 2 • BUSHING, Fiberglide
(Ref.) 107909 1 • FRONT HUB ASSEMBLY
3 103085 1 • • PIN, Cotter
4 103144 1 • • SEAL, Grease
5 103009 1 • • BEARING, Inner cone
6 102978 1 • • BEARING, Inner cup
7 102833 1 • • HUB, Front 5 bolt
8 102977 1 • • BEARING, Outer cup
9 103003 1 • • BEARING, Outer cone
10 102829 1 • • WASHER, Flat
11 102749 1 • • NUT, Castle 1” - 14
12 102865 1 • • CAP, Dust
4
5
1
2
3
6
7
8
9
10
11
12
