Skyjack 4632 - Page 157

SECTION 6, Page 74
SJIII Series - The Conventionals 129919

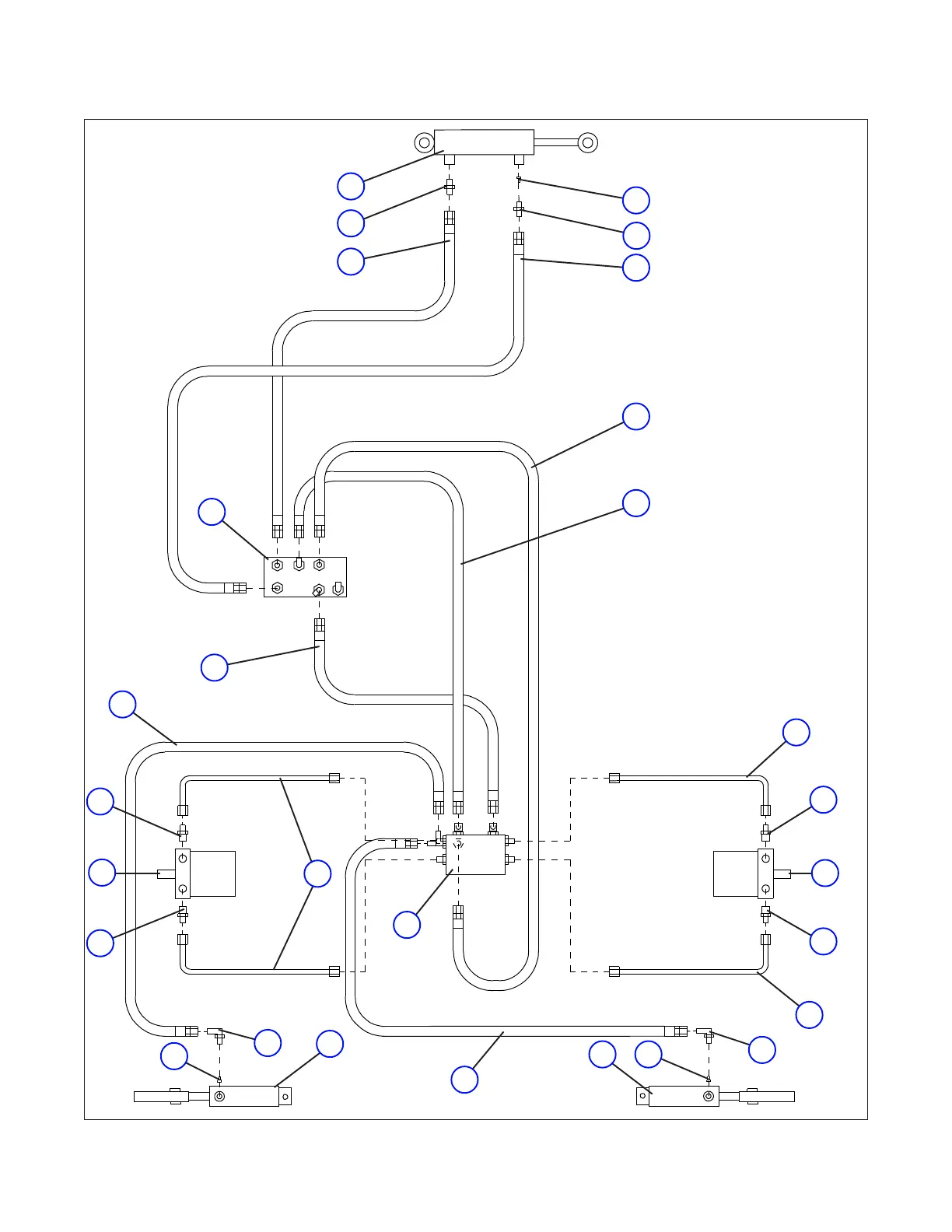

Figure 6.3-9. Hydraulic Hose Connections (Pin Brake)
32XX and 46XX Machines (For Serial No. Breakdown Refer to Figure 6.3-3)
Main
Manifold
Steer
Cylinder
Left
Wheel
Motor
Right
Wheel
Motor
Left Brake
Cylinder
Right Brake
Cylinder
Rear
Drive
Mani-
fold
3
10
10
11
12
2
9
9
14
8
15
13
12 2
11
8
9
9
8
5
6
2
3
4
1
4
7
5
10009AA
AH
NOTE: PIN BRAKE use on 32XX
and 46XX Machines (Refer to
Serial Number Breakdown
Reference Charts - Figure 6.3-3)
