SECTION 6, Page 89
SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.

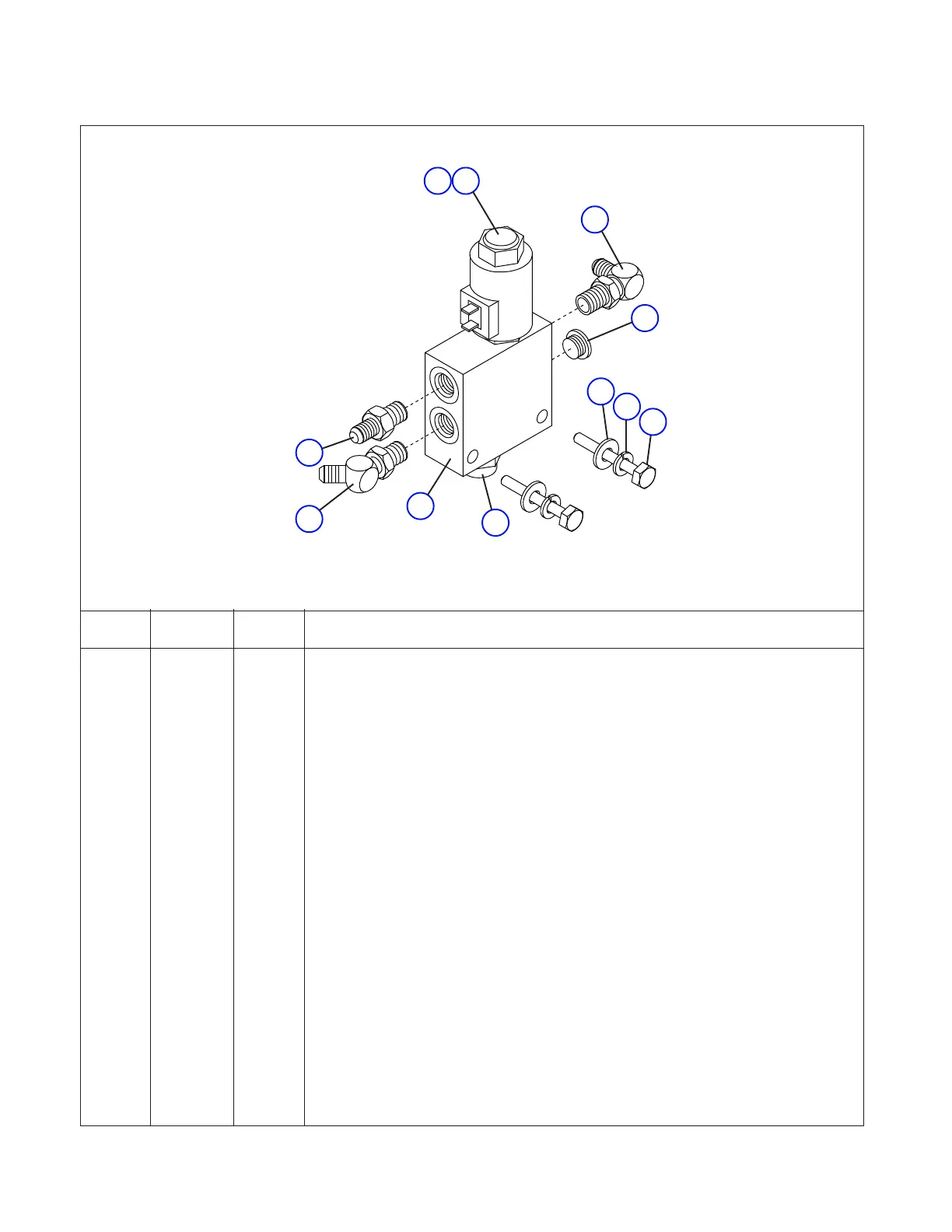

Figure 6.4-4B. Proportional Control Manifold Assembly - Equipped with External Compensator Valve
6
3 2
1
8
4
5
7
10324AA
9
10
11
A 115310 1 ASSEMBLY, Proportional control Valve Manifold (External Compensator Valve)
1 115349 1 • BLOCK, Proportional manifold
2 115351 1 • VALVE, Proportional
3 115370 1 • COIL, 24 Volt (proportional valve)
4 115382 1 • VALVE, Pressure compensator
5 115320 1 • PLUG, Soc-hd #8orb
6 102665 1 FITTING, Elbow 90° #8orb-#6
7 103070 1 FITTING, Connector #8orb-#8
8 102665 1 FITTING, Elbow 90° #8orb-#6
126332 1 FITTING, Elbow 45° #8orb-#6 (Used on some later models)
9 103596 2 BOLT, Hex Hd 3/8”-16 x 2.0” Gr. 5
10 103999 2 WASHER, Lock 3/8”
11 103472 2 WASHER, Flat 3/8”
