Skyjack 4632 - Page 170

SECTION 6, Page 88
SJIII Series - The Conventionals 129919
Index
No.
Skyjack
Part No.
DescriptionQty.
5
6
2
5
4
7
8
9
1

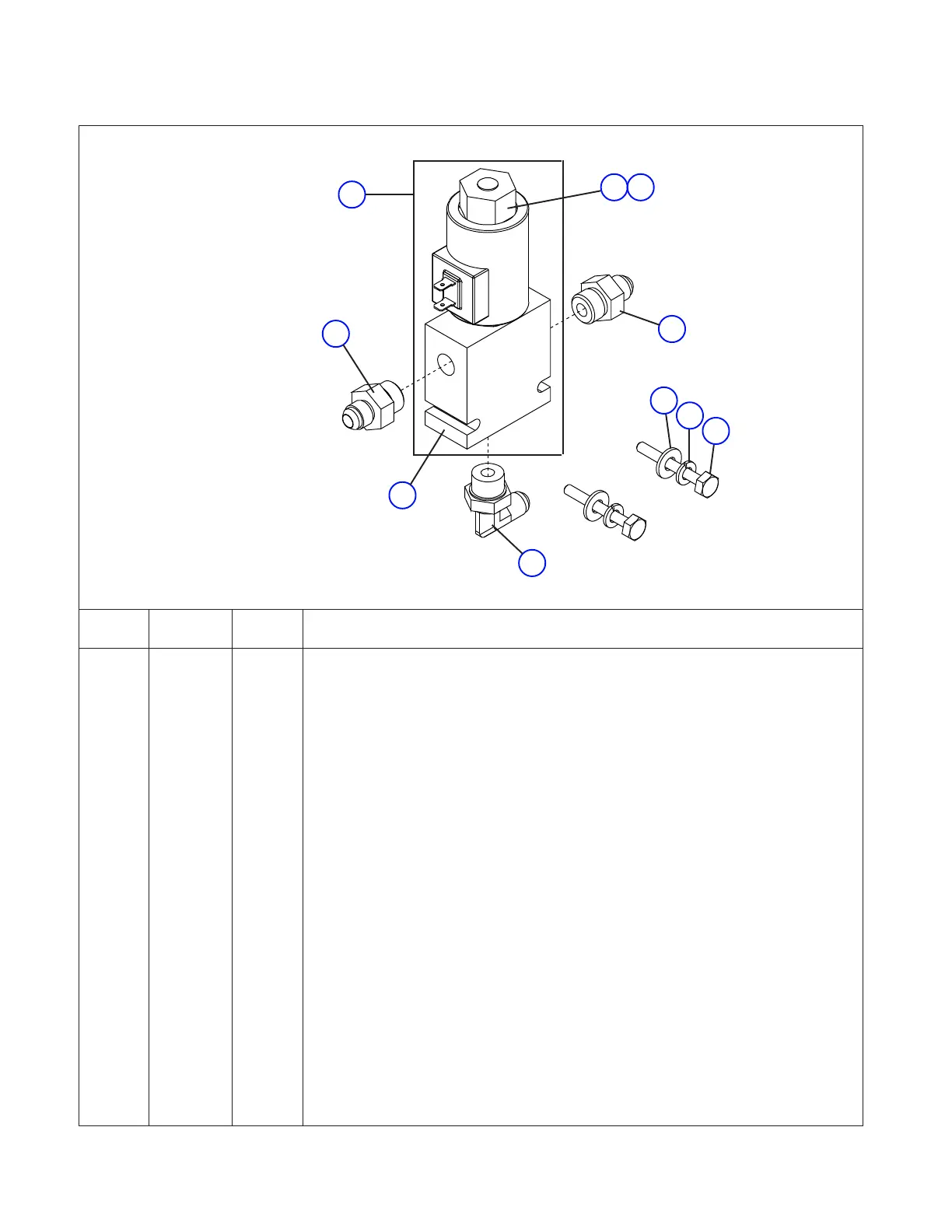

Figure 6.4-4A. Proportional Control Manifold Assembly - Equipped with Internal Compensator Valve
A 132761 1 ASSEMBLY, Proportional Control Valve Manifold (Internal Compensator Valve)
1 132750 1 • ASSEMBLY, Block/Valve/Coil
2 132748 1 • • BLOCK, Proportional Manifold
3 132749 1 • • VALVE, Proportional Flow Control
4 115370 1 • • COIL, 24 Volt
5 103070 2 • FITTING, Straight Connector
6 102665 1 • FITTING, Elbow Connector
7 103860 2 BOLT, Hex Hd 1/4”-20 x 1.75” Gr. 5
8 104000 2 WASHER, Lock 1/4”
9 103995 2 WASHER, Flat 1/4”
