Skyjack 4632 - Page 169

SECTION 6, Page 87
SJIII Series - The Conventionals 129919
A 132053 1 PUMP & MOTOR ASSEMBLY
1 123477 1 MOTOR, 24 Volt DC
2 129961 1 PUMP, Hydraulic
3 703183 1 COUPLER
4 (Ref.) 1 HARDWARE, Motor Replacement
122967 1 • BRUSH KIT (Includes Brushes and Springs)
5 132288 1 ASSEMBLY, Cable and Connector
103148 24” • CABLE, Welding #4
102938 2 • TERMINAL, Battery 3/8” 4 Ga
105534 1 • CONNECTOR, 2-Prong 175A Grey
6 117407 1 INSULATOR, Black Boot
7 117408 1 INSULATOR, Red Boot
8 (Ref.) 1 FITTING, Hydraulic Hose Connections
(For components, refer toFigure 6.4-6)
9 129962 1 KIT, Motor Band
10 129964 1 KIT, Pump Seal
11 129963 1 TUBE, Inlet
Index
No.
Skyjack
Part No.
DescriptionQty.
4
3 2
1
5
7
6
8
9
10
11

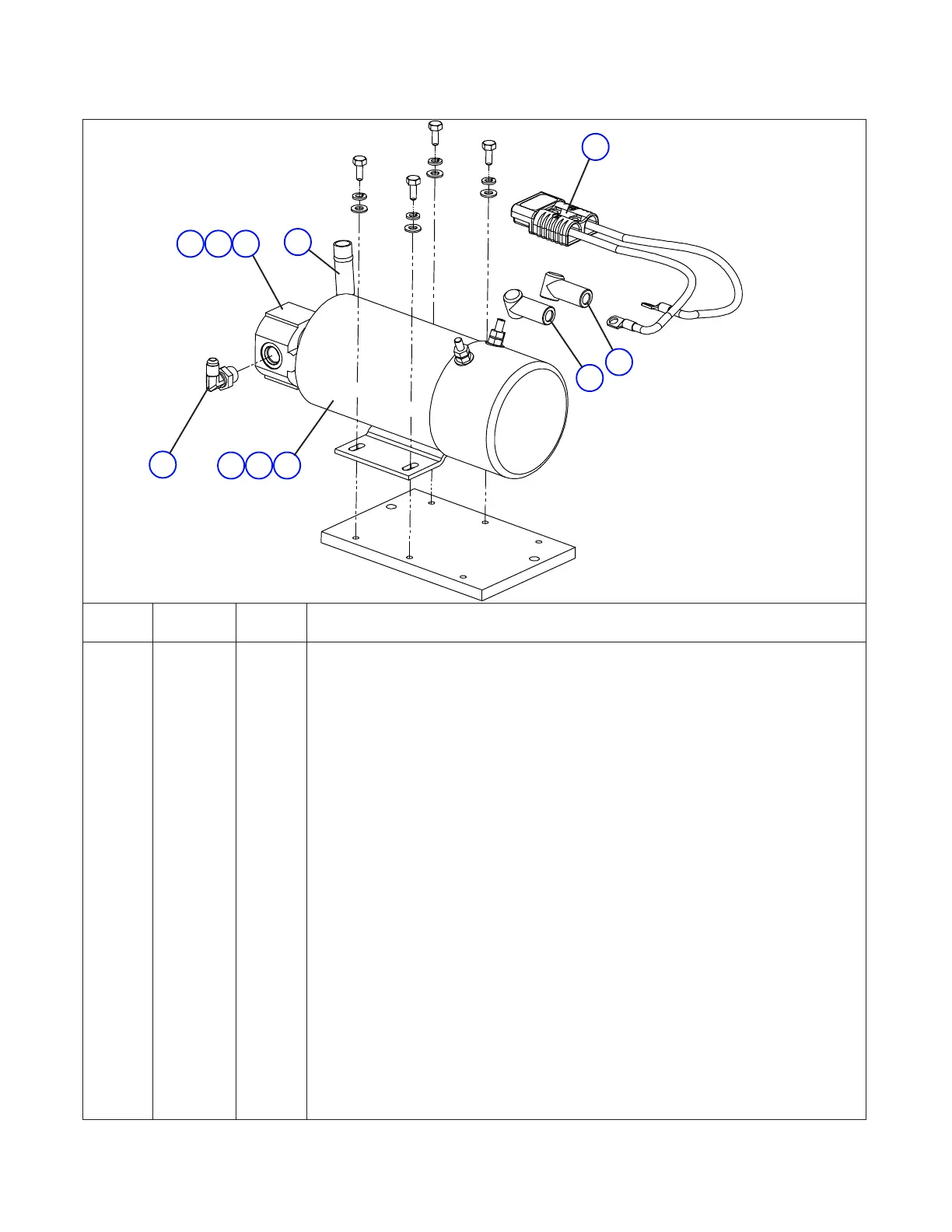

Figure 6.4-3. Pump And Motor Assembly - ANSI/CSA EE Rated
11168AA
