Skyjack 4632 - Page 168

SECTION 6, Page 86
SJIII Series - The Conventionals 129919
S1F-1111AA

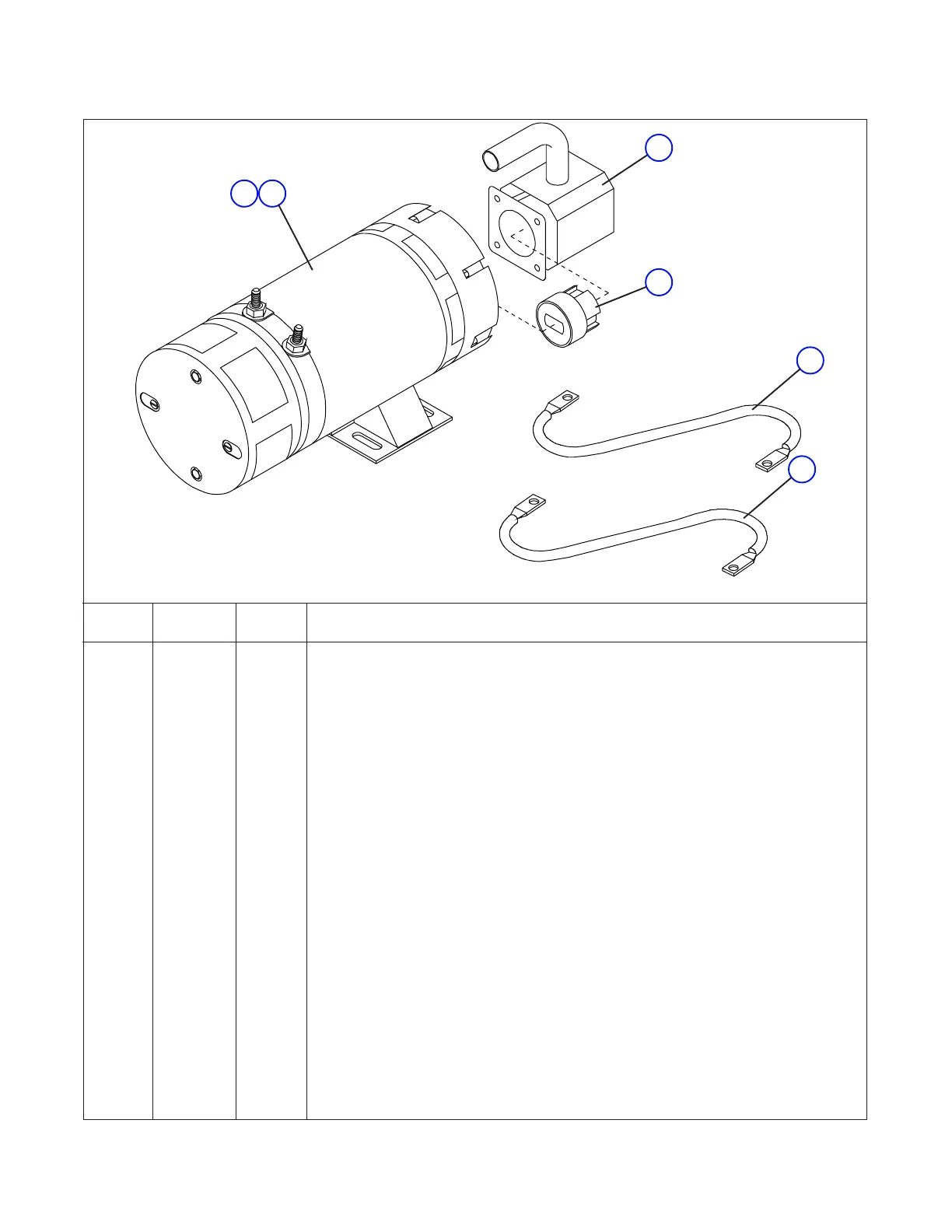

Figure 6.4-2. Pump And Motor Assembly - ANSI/CSA & CE Models (Except EE Rated)
6
5
4
3
1
A 123475 1 PUMP & MOTOR ASSEMBLY (Model 3220/4620)
B 123476 1 PUMP & MOTOR ASSEMBLY (Model 3226/4626/4632)
1 123477 1 MOTOR, 24 Volt DC
2 106577 1 PUMP, Hydraulic, A
106587 1 PUMP, Hydraulic, B
103845 4 • BOLT, Hex-hd 5/16”-18 x 1/2" lg.
103996 4 • WASHER, Flat 5/16”
103404 4 • WASHER, Lock 5/16”
3 703183 1 COUPLER (includes seals)
4 (Ref.) 1 HARDWARE, Motor Replacement
122967 1 • BRUSH KIT (Includes Brushes and Springs)
5 124323 1 CABLE, Motor/Main Contactor #4Ga 5/16” x 35” x 3/8”
6 (Ref.) 1 CABLE, Motor/Battery
(For components, refer to Figure 6.5-1)
2
Index
No.
Skyjack
Part No.
DescriptionQty.
