SKYJACK, Page 84
February 2008
Mid Size & Full Size RT’s
Engine Powered

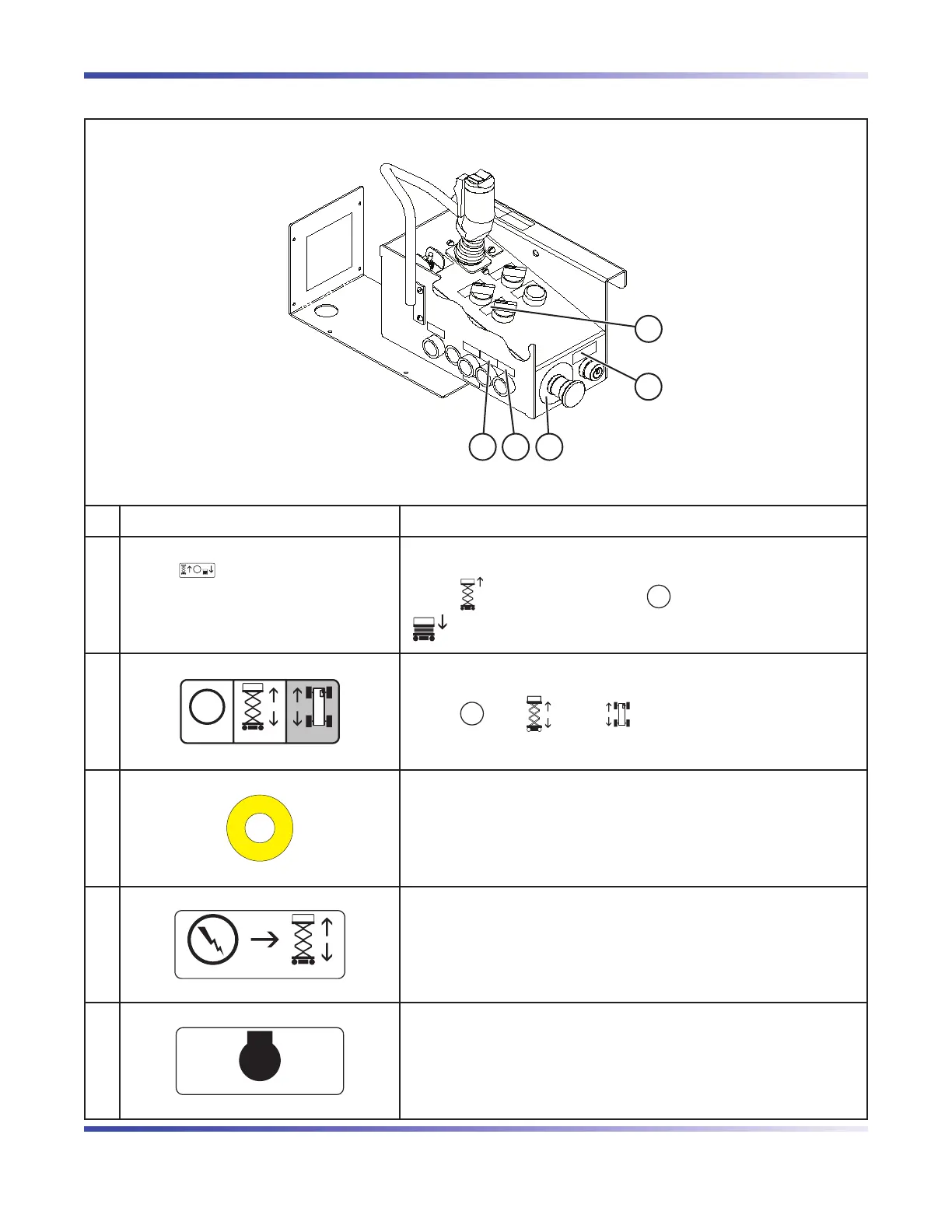

Section 2 - Operation Labels
9 8 7
5
6
No. Label Pictorial Description
5
Raise/Off/Lower Platform
Select “
” to raise the platform, “ ” to turn power off or
“
” to lower the platform.
6
Off/Lift/Drive
Select “
” off, “ ” lift or “ ” drive mode.
7
Emergency Stop
Push to disable controls.
8
Lift Enable
Select to enable lift mode.
9
Start Engine
Select to start engine.
Platform Control Console (Continued)
To Next Page
