SKYJACK, Page 86
February 2008
Mid Size & Full Size RT’s
Engine Powered
Section 2 - Operation Labels
3
1 2
3

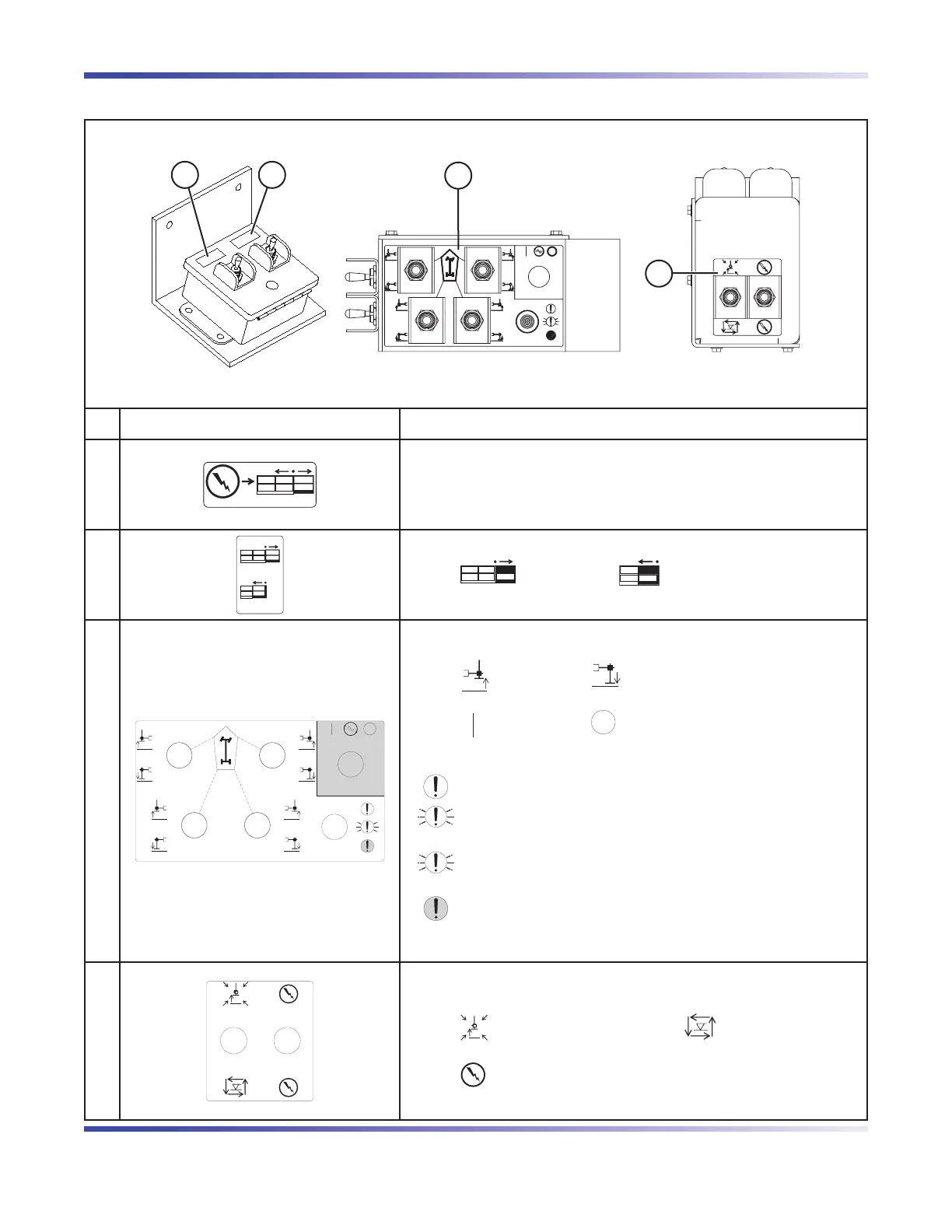

No. Label Pictorial Description
1
Powered Extension Platform Enable
Select to enable powered extension platform controls.
2
Powered Extension Platform Extend/Retract
Select “
“ to extend or “ “ to retract powered
extension platform.
3
Outrigger Controls with Generator
Select “
” to retract or “ “ to extend for each outrigger.
Select “
” to enable or “ ” disable generator.
Indicates leveling system status:
Off: The outriggers are fully retracted.
Flashing Rapidly: The outriggers are extending but the
platform is not level.
Flashing: The outriggers are extended but the platform is
not yet level.
Solid: The outriggers are extended and the platform is
level.
4
Automatic Outrigger Controls
Select “
” to retract all outriggers or “ ” to extend all
outriggers with automatic leveling.
Select “
” to enable manual or automatic outrigger controls.
