SECTION 2, Page 17SJ 600, 800 & 1000 Series
122883AH
May 2002
Outrigger Controls (Option)
(Model 9250A, 7135 & 800 Series )

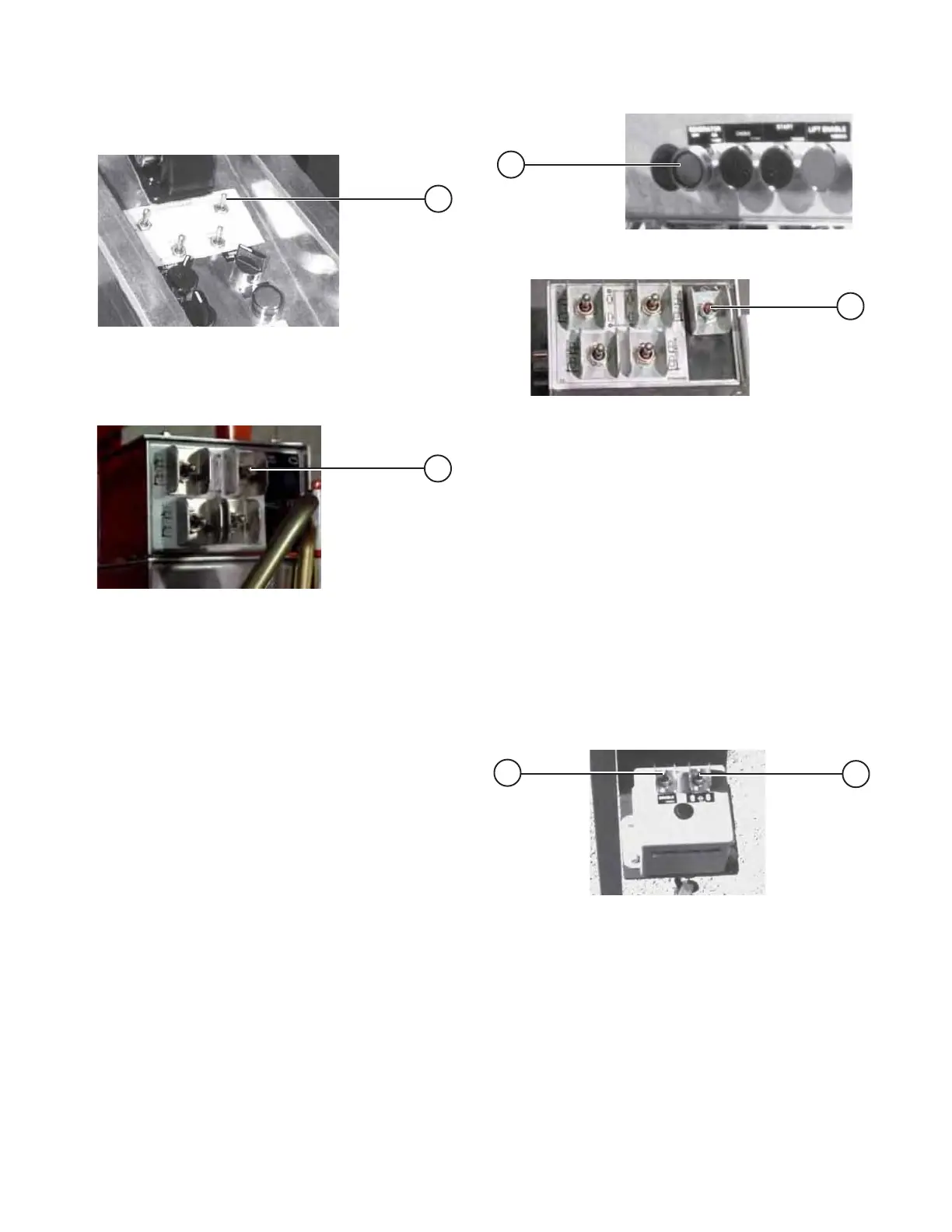

Figure 2-8A. Outrigger Controls On Operator’s
Control Box
Figure 2-8B. Outrigger Controls On The Optional
Control Box Console
Outrigger Controls - Located on the Operator’s
Control Box, these switches control each outrigger’s
extension and retraction
1. Outrigger Up/Down Control Toggle Switches -
These switches control the extension and retraction of
each individual outrigger
1
1
2
Hydraulic Generator Control (Option)
Figure 2-9A. Hydraulic Generator Control On The
Main Control Box
Figure 2-9B. Hydraulic Generator Control On The
Auxiliary Control Box
Hydraulic Generator Control - Located on the side of
the Operator’s Control Box or on the Auxiliary Control
Box console. This push-button switch starts the
hydraulic generator on the base.
1. Hydraulic generator Off/On Push-Button Switch
This illuminated push-button switch starts the base
mounted generator. It illuminates when the
generator is activated.
2. Hydraulic generator Off/On Toggle Switch This
switch starts and stops the base mounted generator.
Powered Extension Platform
Control Box (Option)
Figure 2-10. Powered Extension Platform Control Box
Powered Platform Control Box - This metal control
station is mounted at the right front of the extension
platform. It contains the following controls:
1. Enable Switch - This switch, when activated
brings power to the Platform Extend/Retract Switch.
2. Platform Extend/Retract Switch - This switch,
when activated extends/retracts the powered exten-
sion platform.
1
1
2
To Next Page
