SJ 46A & SJ 46AJ
December 2007 Page 35
Section 2 - Operation Function Tests
Test Function Enable Switch and All •
Boom Functions
WARNING
Ensure that there are no personnel or
obstructions in test area and there is
sufficient room for boom to swing.
1. Do not hold “
” function enable switch.
Attempt to activate each boom and
platform switch.
Result: All boom and platform functions
should not operate.
2. Hold “
” function enable switch
and activate each boom and platform
function.
Result: All boom and platform functions
should operate as selected.
Test Platform Self-leveling•
1. Lower boom to stowed position.
2. Adjust platform to a level position using
platform leveling switch.
3. Raise “
” and lower “ ” main
boom through a full cycle.
Result: Platform should remain level at all
time.
Test Emergency Power•
1. On base control console, push in
“
” emergency stop button to turn
engine off.
2. On platform control console, push in “
”
emergency stop button.
CAUTION
When operating on auxiliary power, do
not operate more than one function
at a time to avoid overloading 12-Volt
auxiliary pump motor. Do not use
emergency power unit continuously for
more than two minutes.

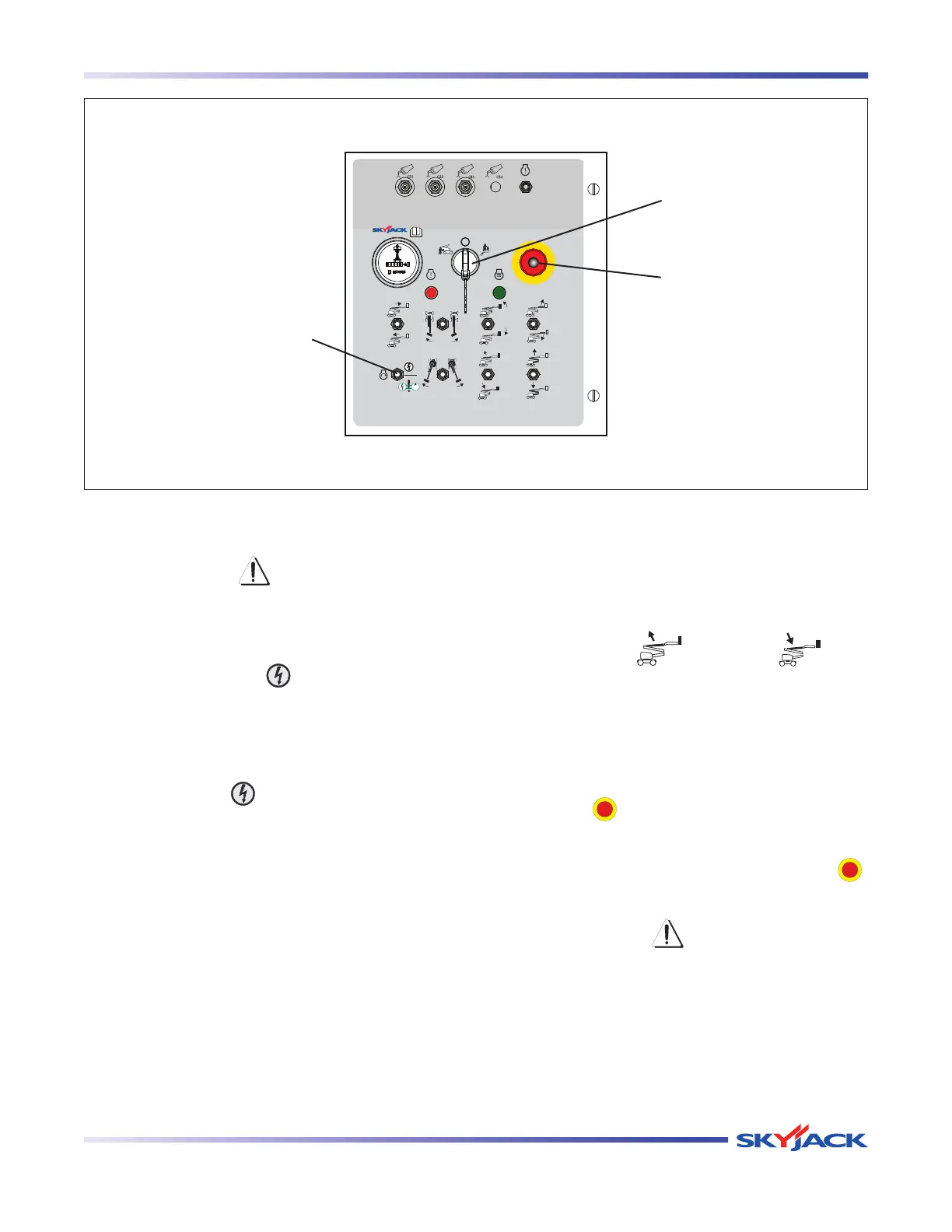

Emergency
Stop
Base Control Console
Start/Function Enable/
Emergency Power
Switch
Base/Off/Platform Key
Switch
To Next Page
