SJ 46A & SJ 46AJ
Dec
emb
er 200
7
P
age 81
TM

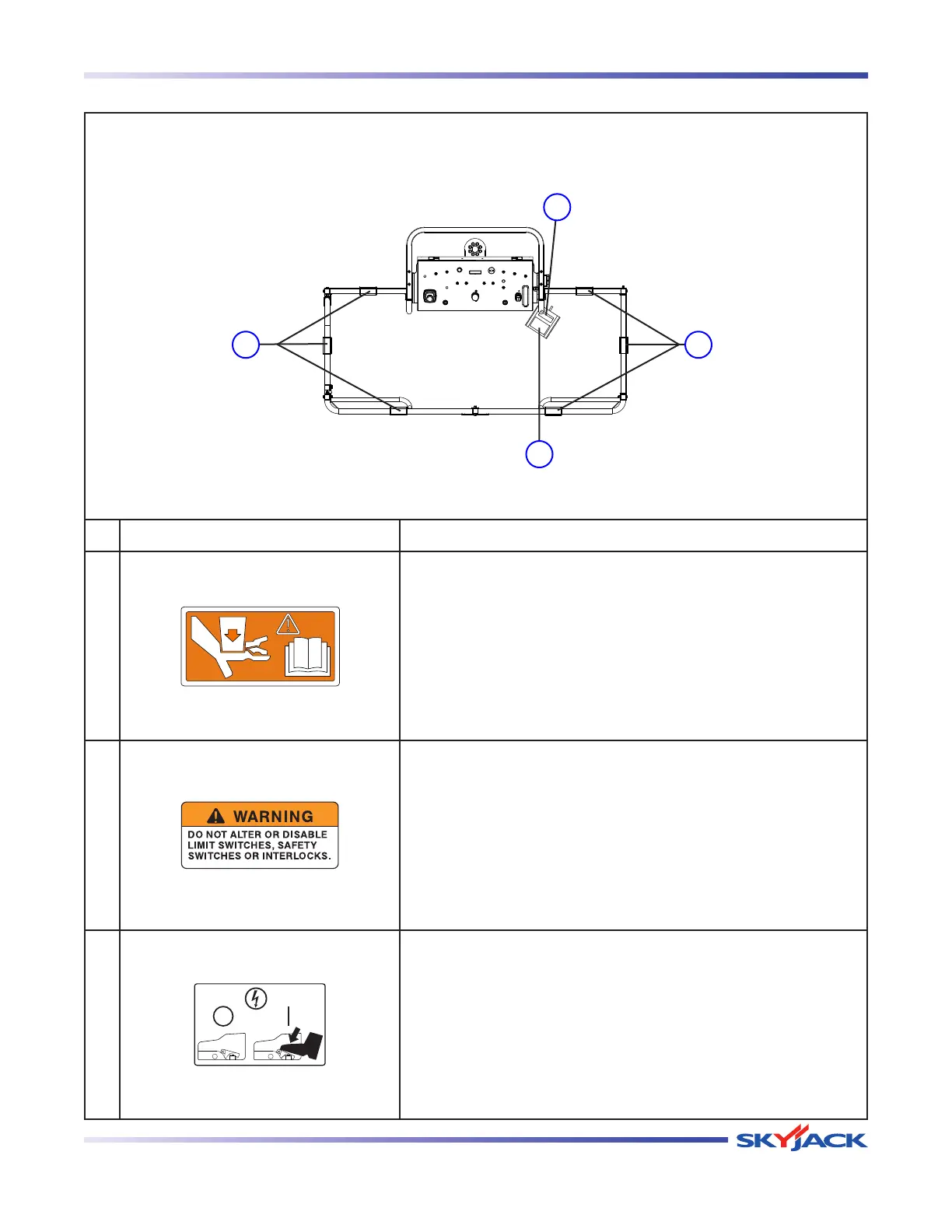

Section 2 - Operation
Labels
No.
Label Pictorial
Description
1
Crushing Hazard
Danger - Crushing hazard
2
W
arning - Do Not Alter
Aerial platform altering warning
3
Footswitch Enable (On/Off)
Depress and hold footswitch to enable platform function.
Platform (Continued)
1
2
1
3
79
81
Table of Contents
Table of Contents
4
Section 1 - about Your Aerial Platform
6
Aerial Platform Definition
6
Purpose of Equipment
6
Use of Equipment
6
Manual
6
Operator
6
Service Policy and Warranty
6
Optional Accessories
6
Scope of this Manual
6
Safety Rules
7
Operator Safety Reminders
7
Electrocution Hazard
8
Safety Precautions
9
Section 2 - Operation
12
General
12
Operator Qualifications
12
Operator's Responsibility for Maintenance
12
Maintenance and Inspection Schedule
12
Owner's Inspections
12
Major Components
13
Major Assemblies
14
Base
14
Turret
14
Boom Assembly
14
Platform
14
Serial Number Nameplate
14
Component Identification
15
Main Power Disconnect Switch
15
Tilt Sensor
15
Drive Bypass Valve
15
Brake System
15
Differential Lock Switch
16
All Motion Alarm
16
AC Outlet on Platform (if Equipped)
16
Turret Transportation Lock
16
Footswitch
16
10 Manual Storage Box
16
11 Base Control Console
17
12 Platform Control Console
19
Special Options
21
Cold Weather Start (if Equipped)
21
Work Light (if Equipped)
21
Flashing Amber Light (if Equipped)
21
Tire Sealant Light (if Equipped)
22
Hydraulic Generator (if Equipped)
22
Operator's Responsibility
23
Visual & Daily Maintenance Inspections
24
Function Tests
32
Start Operation
43
To Activate Base Control Console
43
To Rotate Platform Using Base Control Console
43
To Rotate Turret Using Base Control Console
44
To Move Jib up and down Using Base Control Console
44
To Move Riser up and down Using Base Control Console
44
To Raise or Lower Main Boom Using Base Control Console
44
To Extend or Retract Fly Boom Using Base Control Console
44
To Level Platform Manually Using Base Control Console
44
To Operate Using Emergency Power Switch at Base Control Console
45
10 To Activate Platform Control Console
45
11 To Drive Forward or Reverse
45
12 To Steer
46
13 To Move Jib up and down Using Platform Control Console
46
14 To Move Riser up and down Using Platform Control Console
46
15 To Extend or Retract Fly Boom Using Platform Control Console
46
16 To Rotate Platform Using Platform Control Console
46
17 To Level Platform Manually Using Platform Control Console
46
18 To Raise or Lower Main Boom Using Platform Control Console
47
19 To Sound Horn
47
20 To Rotate Turret Using Platform Control Console
47
21 To Operate Using Emergency Power Switch at Platform Control Console
47
22 Shutdown Procedure
47
Refueling Procedures
48
Regular Fuel
48
Propane
49
Loading/Unloading
50
Loading and Tie-Down
50
Locking the Turret
51
Lifting
51
Winching and Towing Procedure
52
To Release Brakes Manually
53
Emergency Lowering Procedures
54
Chassis Tilt
55
Diagrams
56
Tables
59
Standard and Optional Features
59
Specifications and Features
60
Owner's Annual Inspection Record
62
Tire/Wheel Specifications
63
Maximum Platform Capacities
63
Floor Loading Pressure
64
Maintenance and Inspection Schedule
65
Operator's Checklist
66
Labels
67
4
Based on 1 rating
Ask a question
Give review
