Section 7 – Technical Diagrams and Specifications Technical diagrams

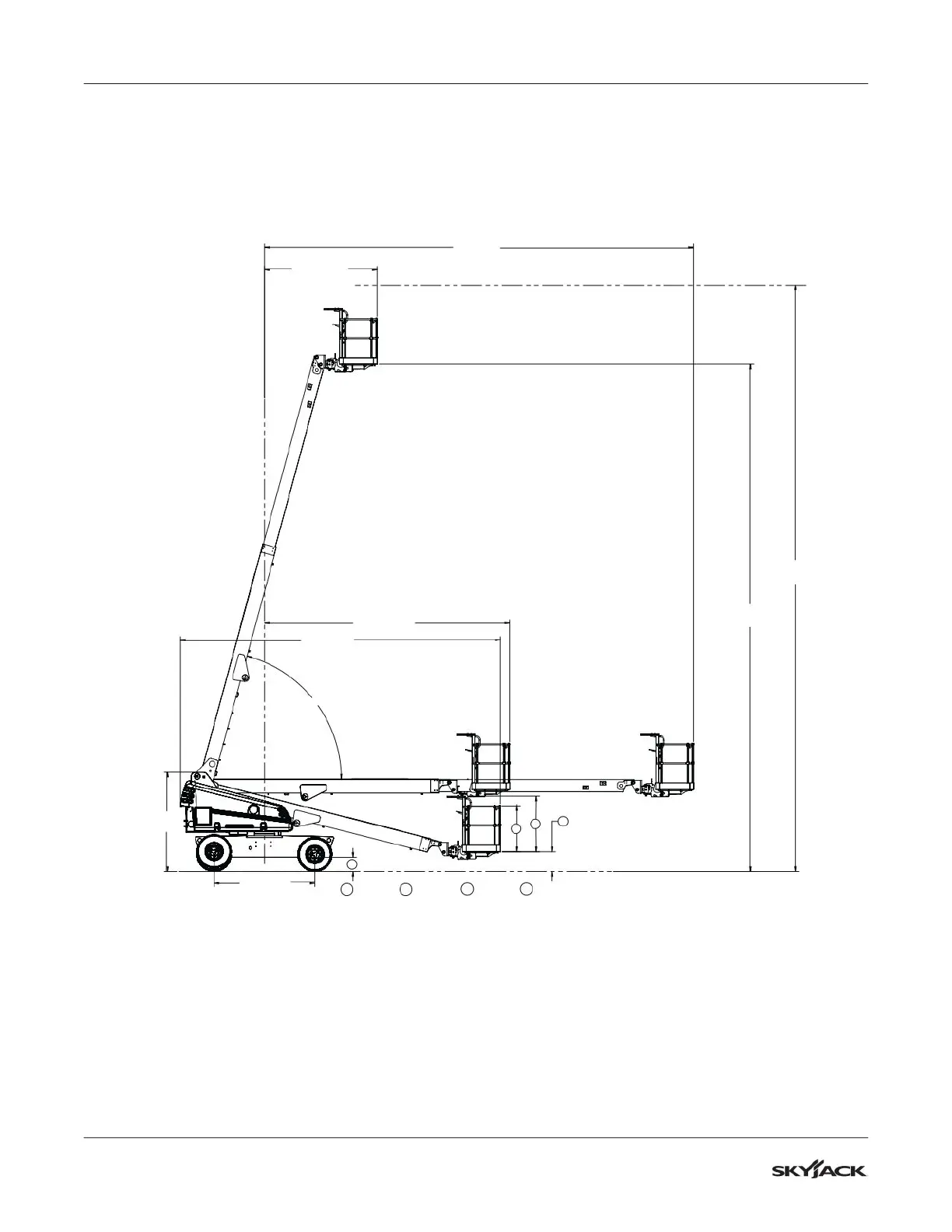

7.1-5 Dimensions - SJ40 T+
75°
C
B
A
D
2.69 m
[8 ft 9.75 in]
10.34 m
[33ft 11 in]
14.19 m
[46 ft 6.5 in]
12.36 m
[40 ft 6.5 in]
5.93 m
[19 ft 5.25 in]
7.73 m
[25 ft 4.25 in]
2.40m
[7 ft 10.5 in]
2.44 m
[8 ft ]
A 0.35 m
[13.75 in]
B 1.11 m
[43 in]
C 1.34 m
[52.75 in]
D 0.27 m
[10.75 in]
