Rough Terrain Scissors
Visual & Maintenance Inspection Section 2 - Familiarization
It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
• Manifolds
- Ensure all fittings and hoses are properly
tightened and there is no evidence of
hydraulic leakage.
- Ensure there are no loose wires or
missing fasteners.
• Electrical Panel
- Ensure panel is properly secured and
there is no visible damage.
- Ensure there are no loose wires or
missing fasteners.
• Load/Tilt Sensor
- Ensure load/tilt sensor is properly secured
and there is no visible damage.
• Hydraulic Tank (Model 92xx)
- Ensure hydraulic filler cap is secure.
- Ensure tank shows no visible damage
and no evidence of hydraulic leakage.
• Hydraulic Oil
- Ensure platform is fully lowered, and
outriggers retracted, and then visually
inspect the sight gauge located on the
side of the hydraulic oil tank. Check oil
level against label that indicates minimum
and maximum oil levels (Model 92xx).
- The hydraulic oil level should be at or
slightly above the top mark of the sight
glass (Models 88xx).

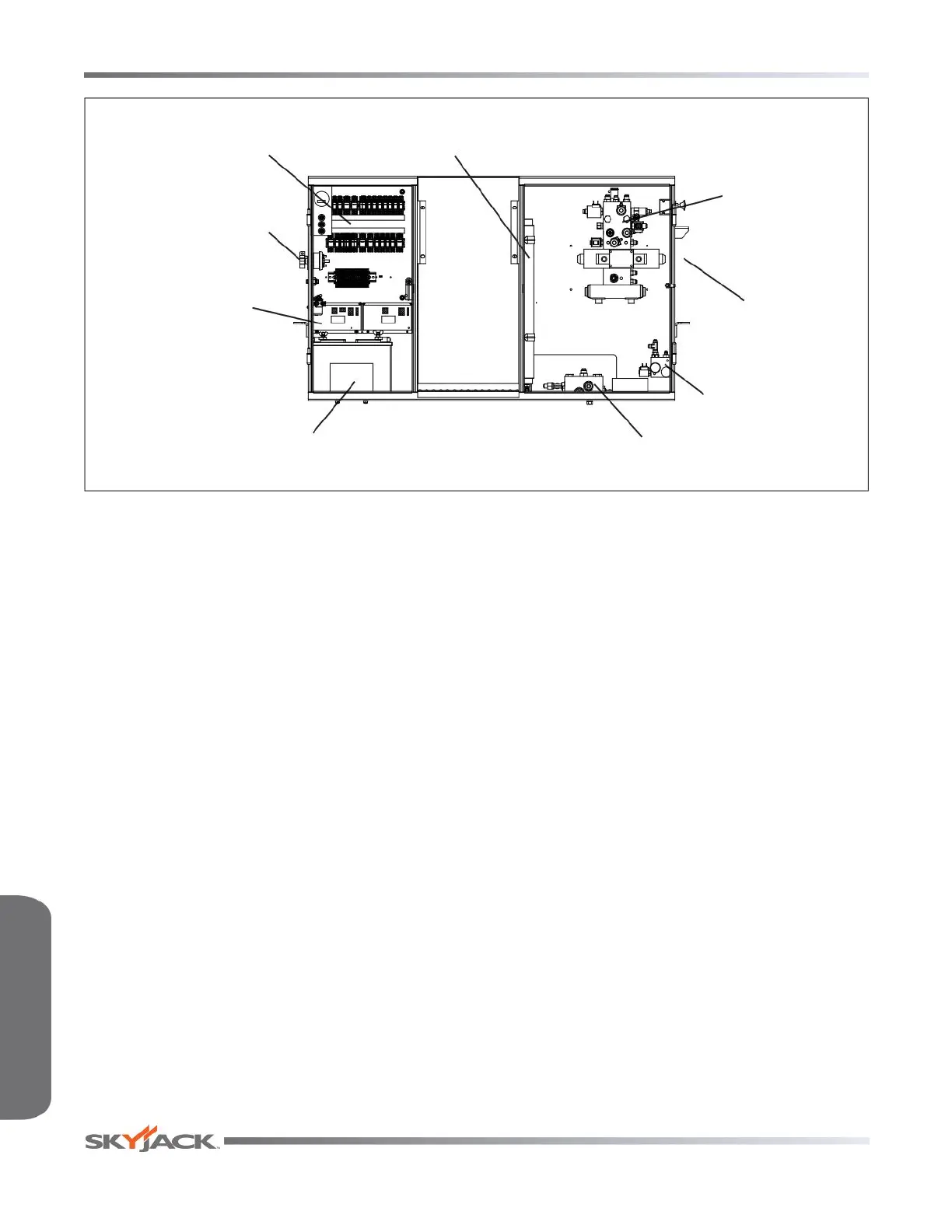

FAMILIARIZATION
Main Power
Disconnect Switch
Electric Panel
Battery
Base Control
Switches
Main Manifold
Load/Tilt Sensor
Brake Manifold
Motion Control Manifold
Cushion Cylinder
